Control Unit

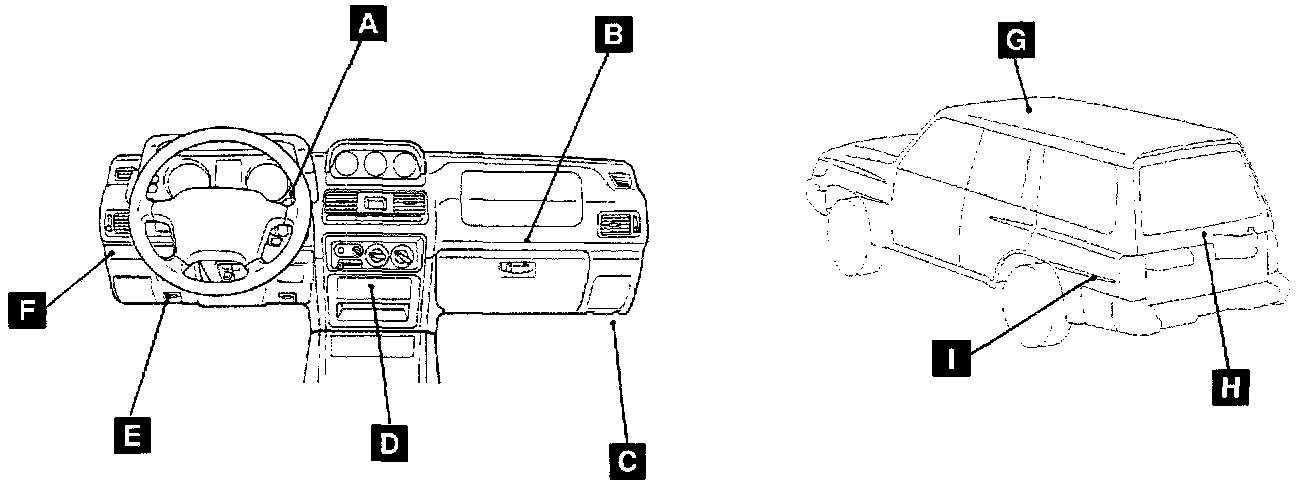

Control Unit Location Overall View:

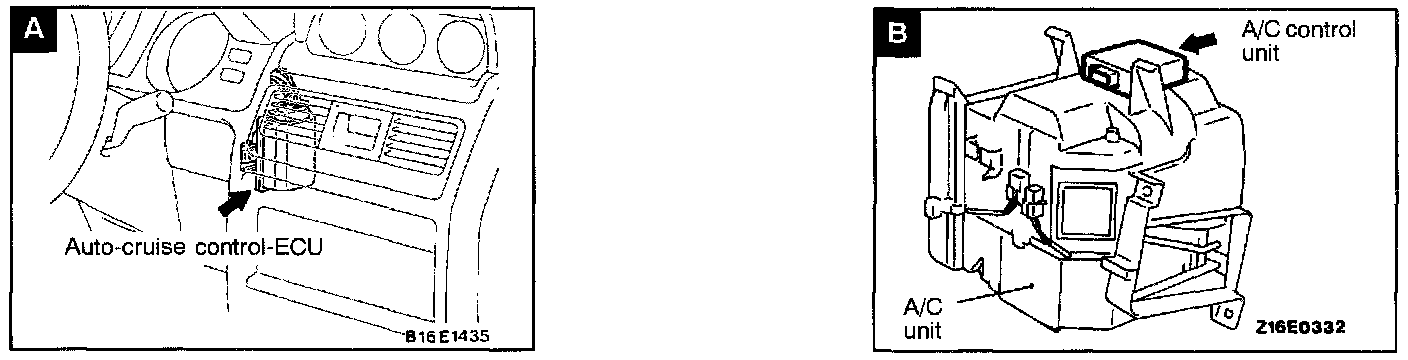

Control Unit Location Views A-B:

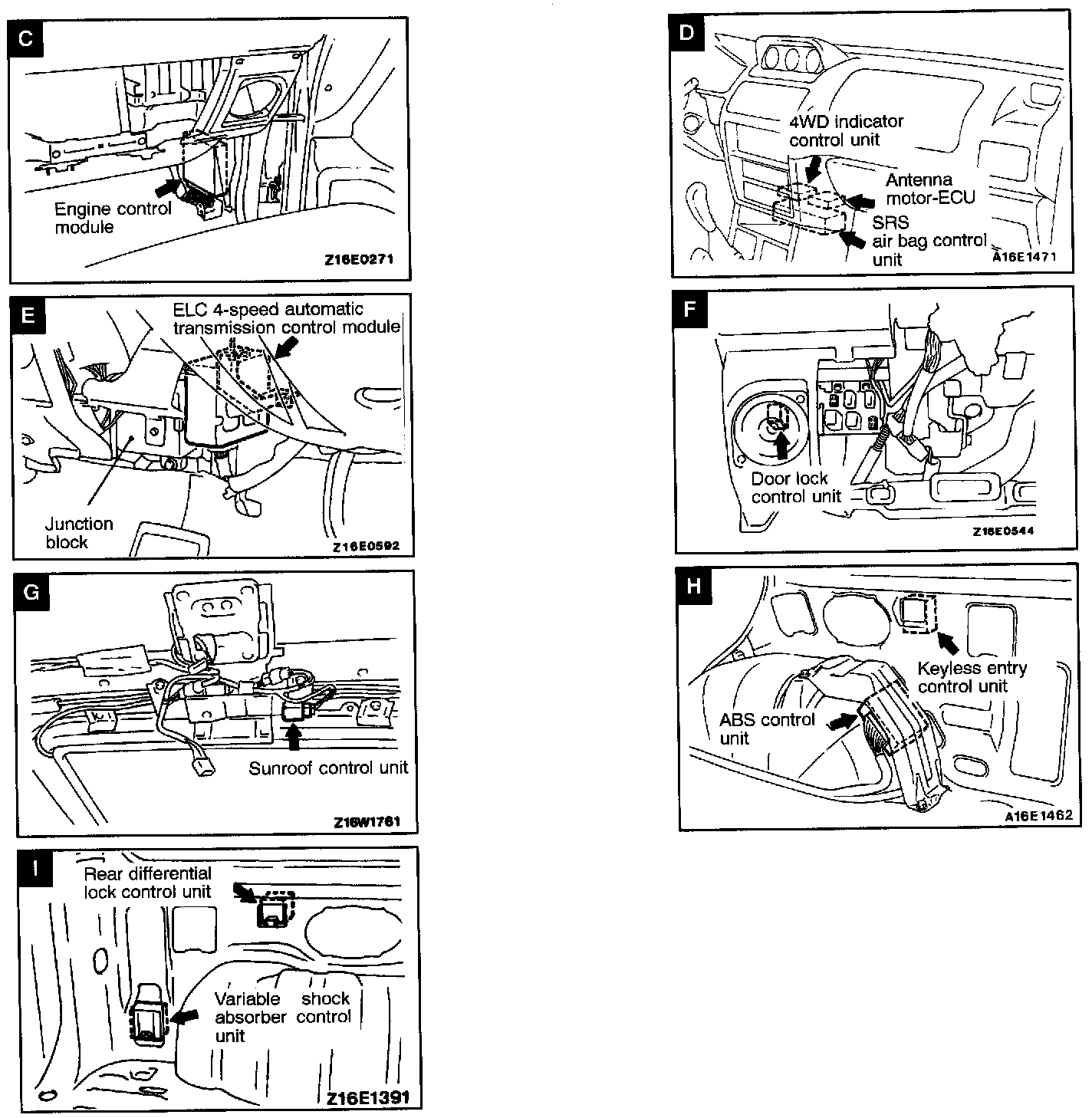

Control Unit Location Views C-H:

CONTROL UNIT VIEW
ABS Control Unit H
A/C Control Unit B
Antenna motor-ECU D
Auto-Cruise Control Unit A
Door Lock Control Unit F
ELC 4-Speed Automatic Transaxle E
Control Module
Engine Control Module C
Keyless Entry Control Unit H
Rear Differential Lock Control Unit I
SRS Air Bag Control Unit D
Sunroof Control Unit G
Variable Shock Absorber Control Unit I
4WD Indicator Control Unit D
