Keyless Entry Module

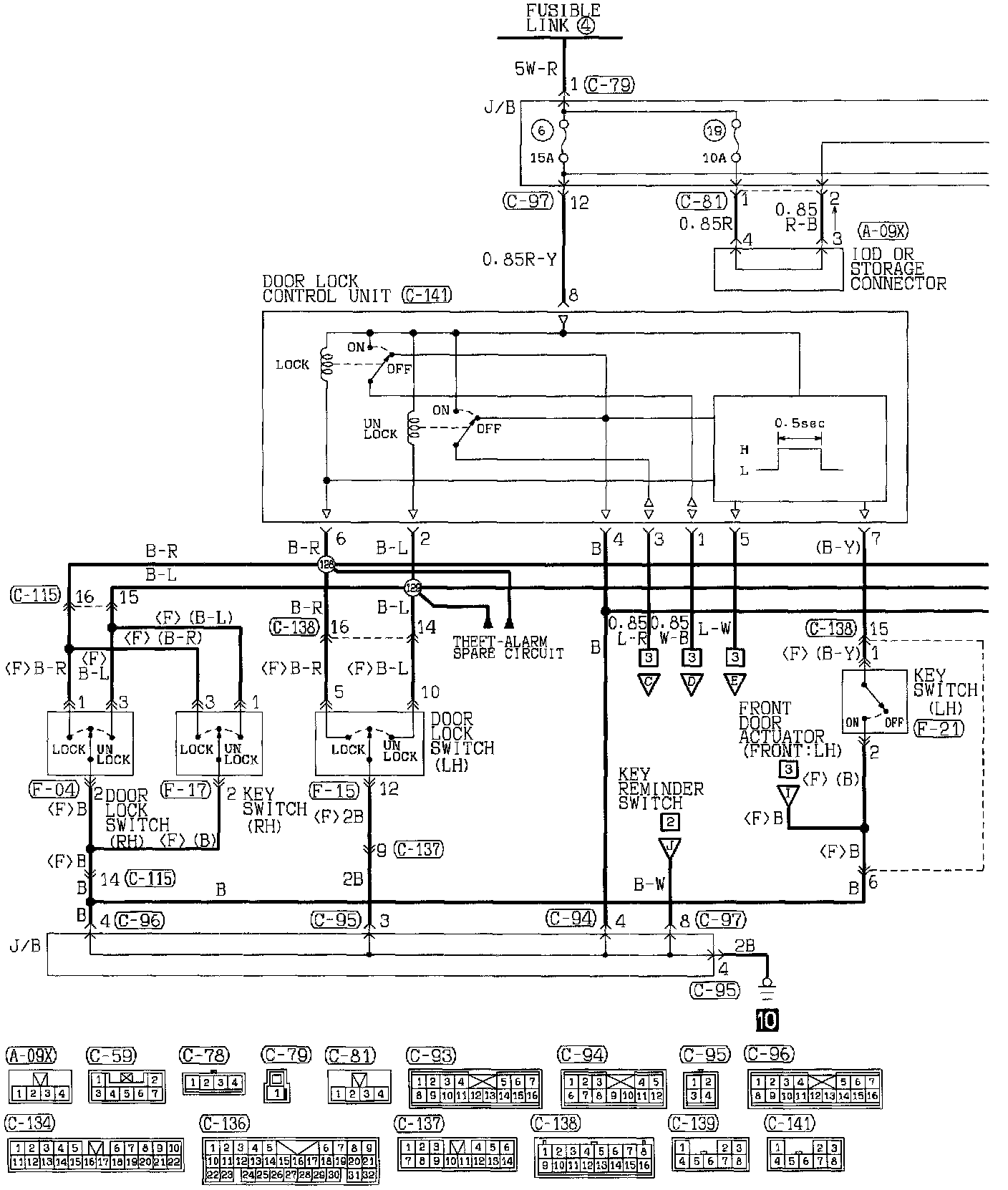

Central Door Locking System (Part 1 Of 4):

Door Lock Control Unit
Door Lock Switch (LH & RH)
Front Door Actuator (Front : LH)
IOD or Storage Connector
J/B
Key Switch (RH & LH)
Key Reminder Switch

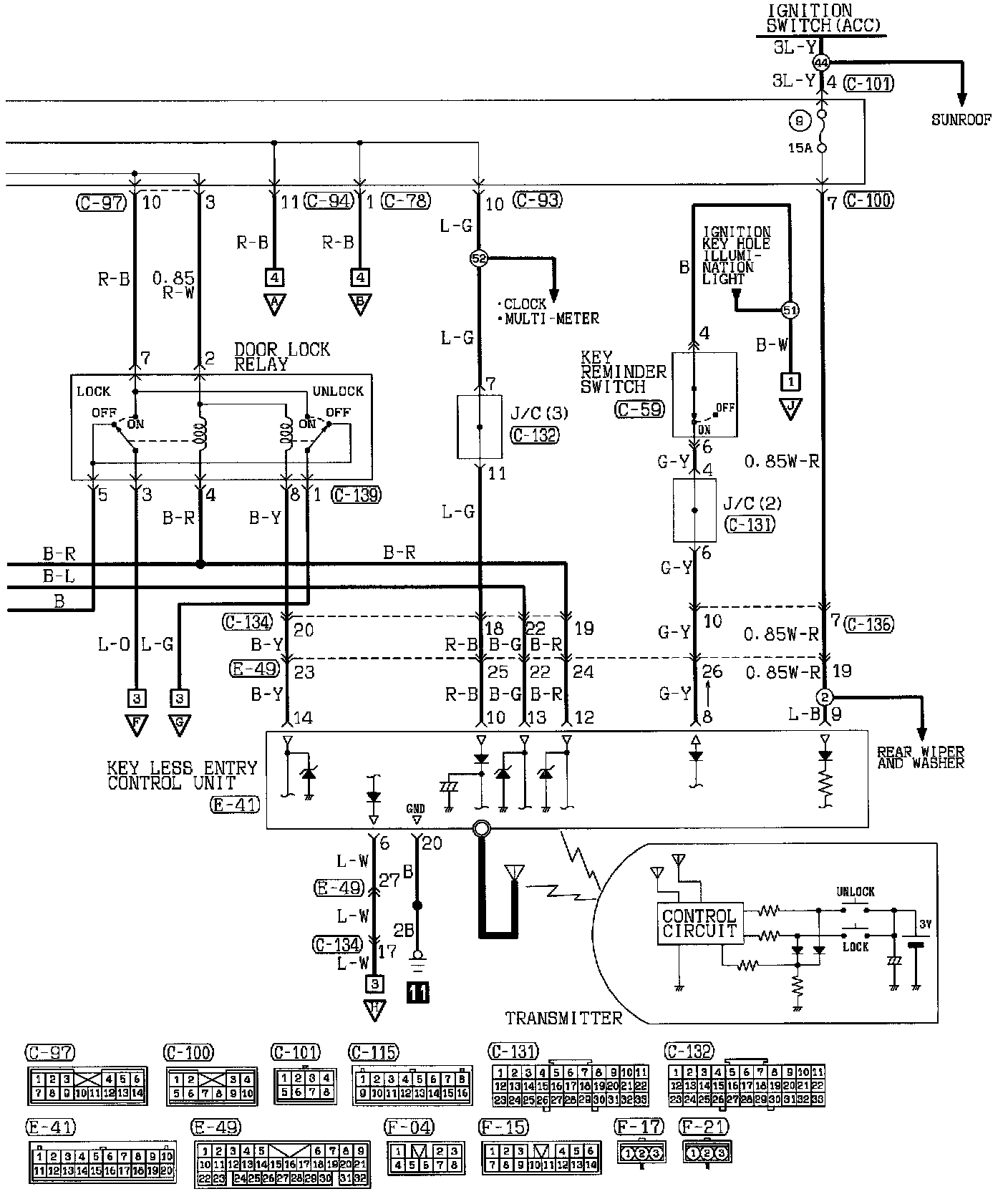

Central Door Locking System (Part 2 Of 4):

Door Lock Relay
J/B
J/C (2, 3)
Key Reminder Switch
Keyless Entry Control Unit

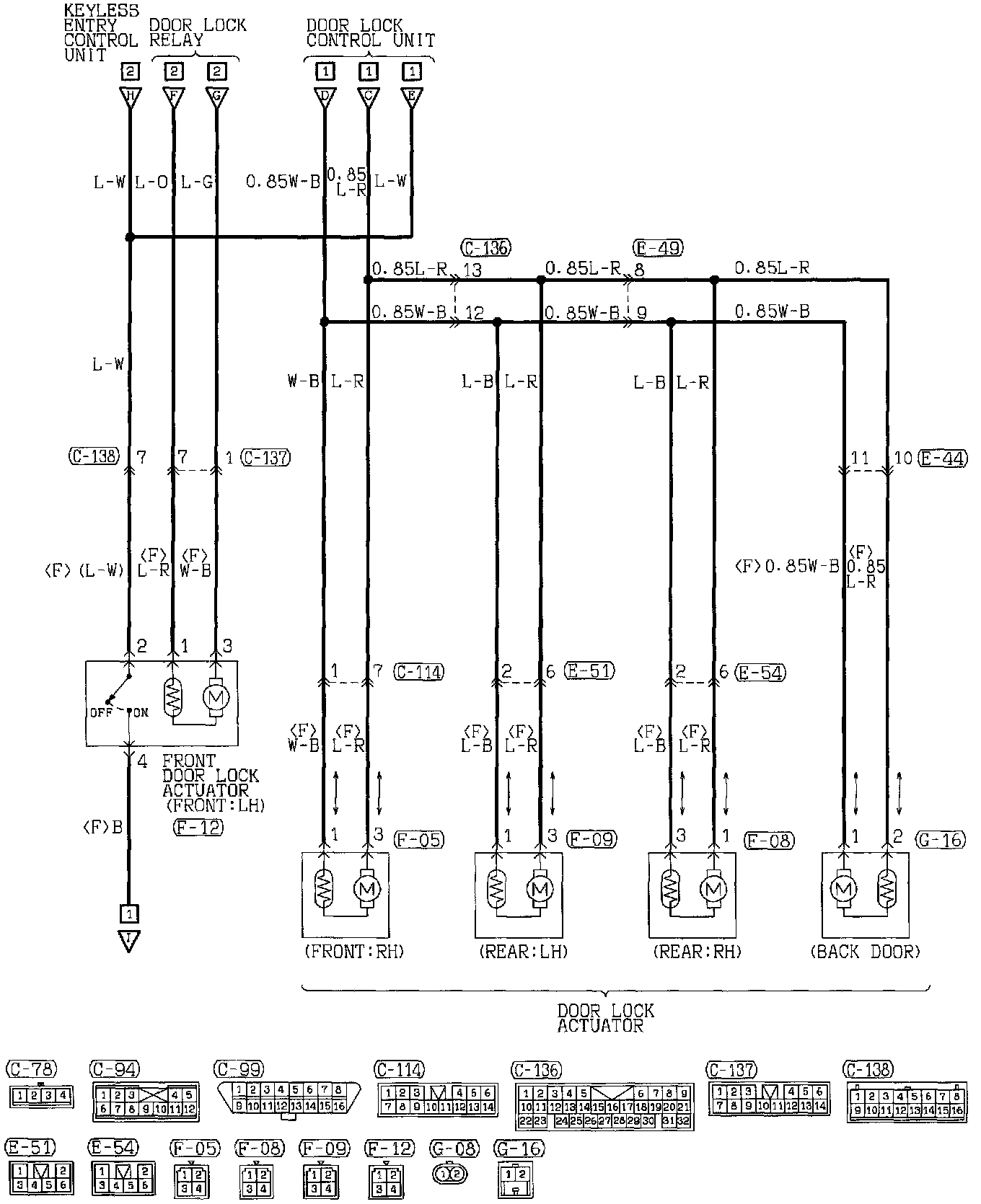

Central Door Locking System (Part 3 Of 4):

Door Lock Actuator (Rear : LH & RH)
Door Lock Actuator (Front : RH)
Front Door Lock Actuator (Front : LH)

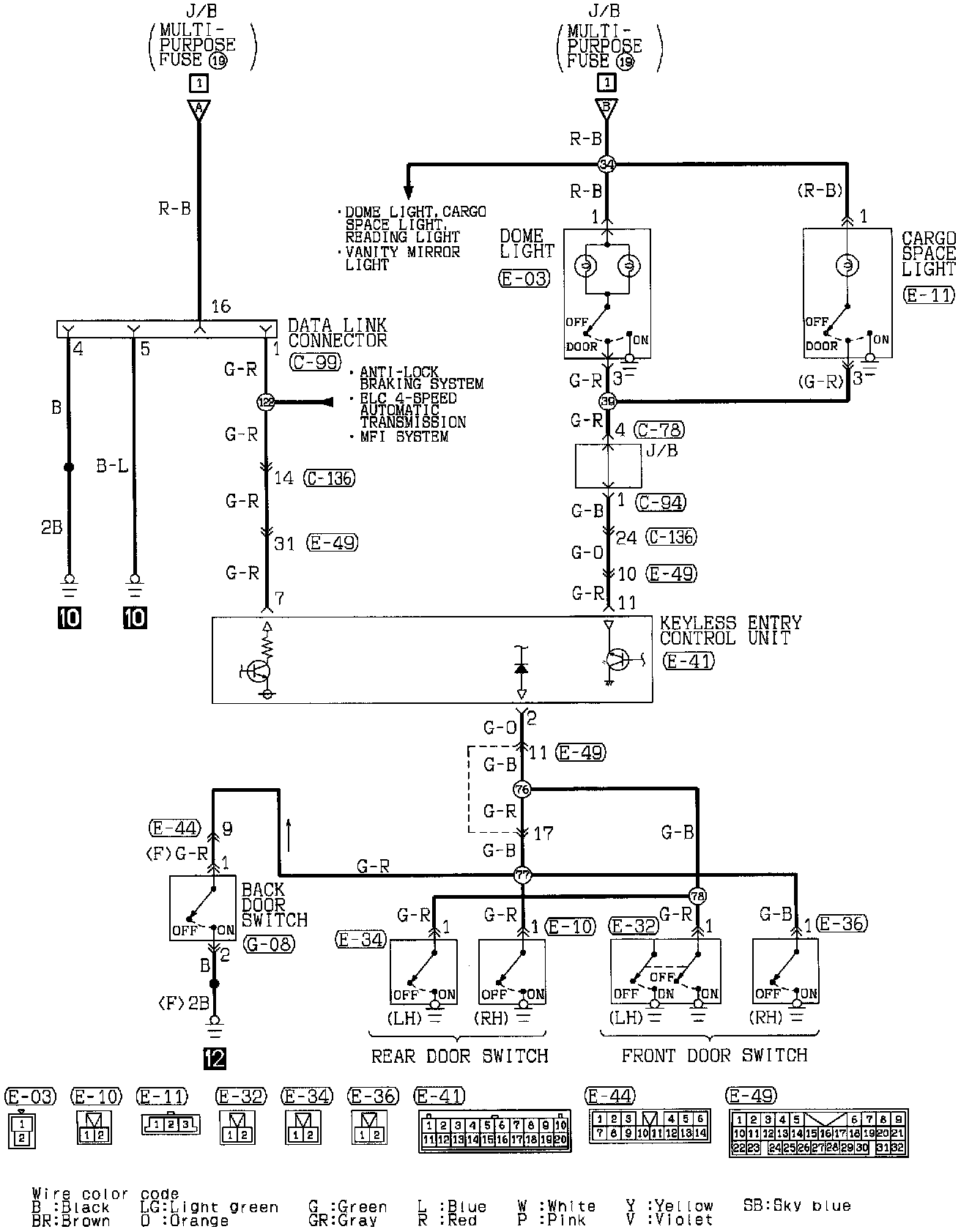

Central Door Locking System (Part 4 Of 4):

Back Door Switch
Cargo Space Light
Data Link Connector
Dome Light
Front Door Switch (LH & RH)
Keyless Entry Control Unit
Rear Door Switch (LH & RH)
