Computers and Control Systems: Diagrams

ENGINE CONTROL MODULE TERMINAL VOLTAGE CHECK

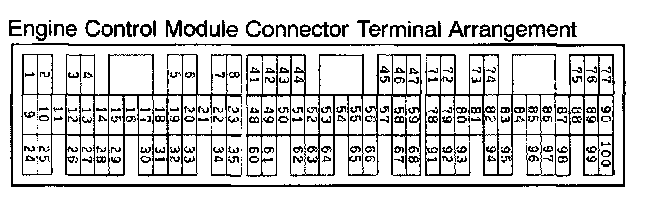

Connector View:

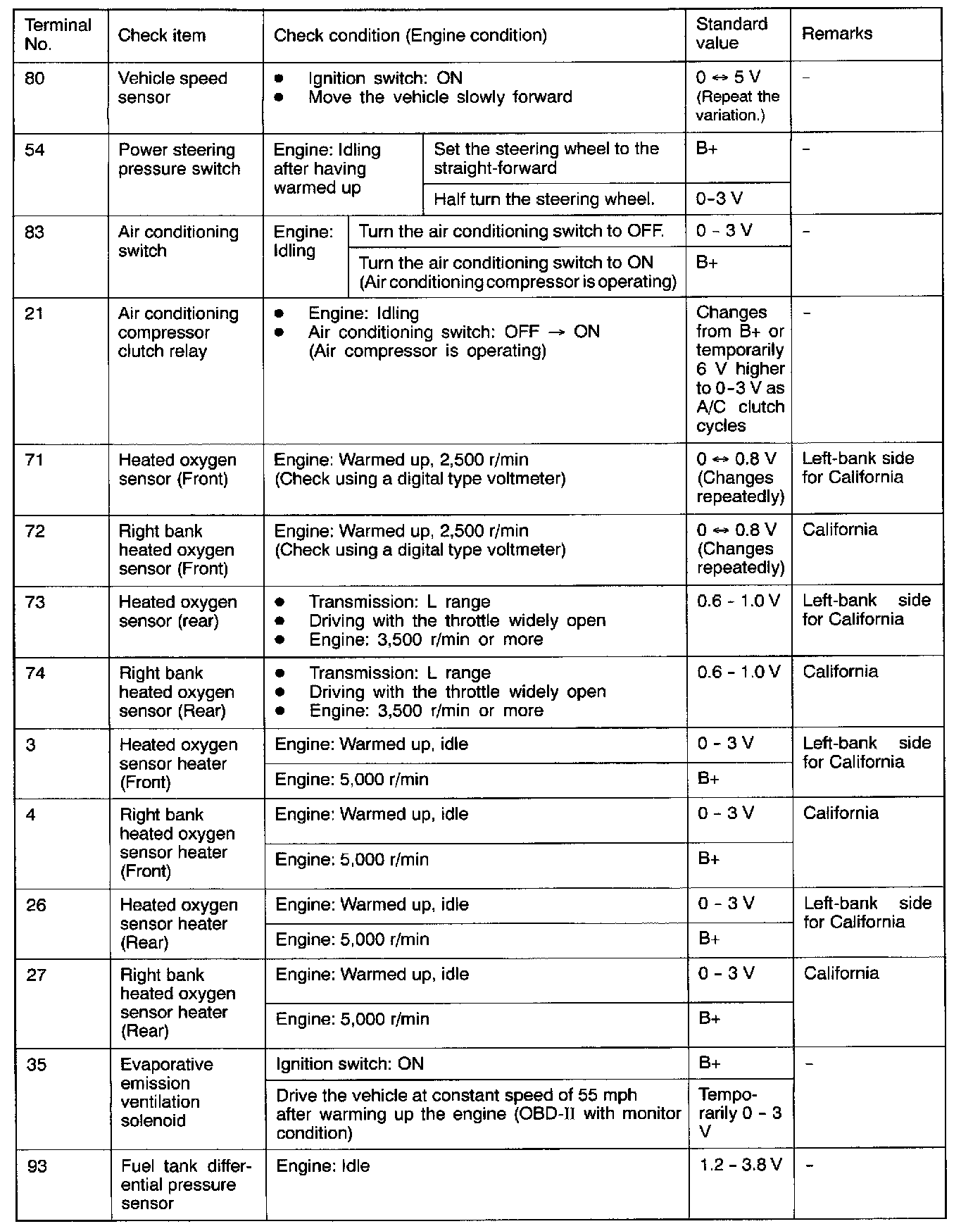

Part 1 Of 4:

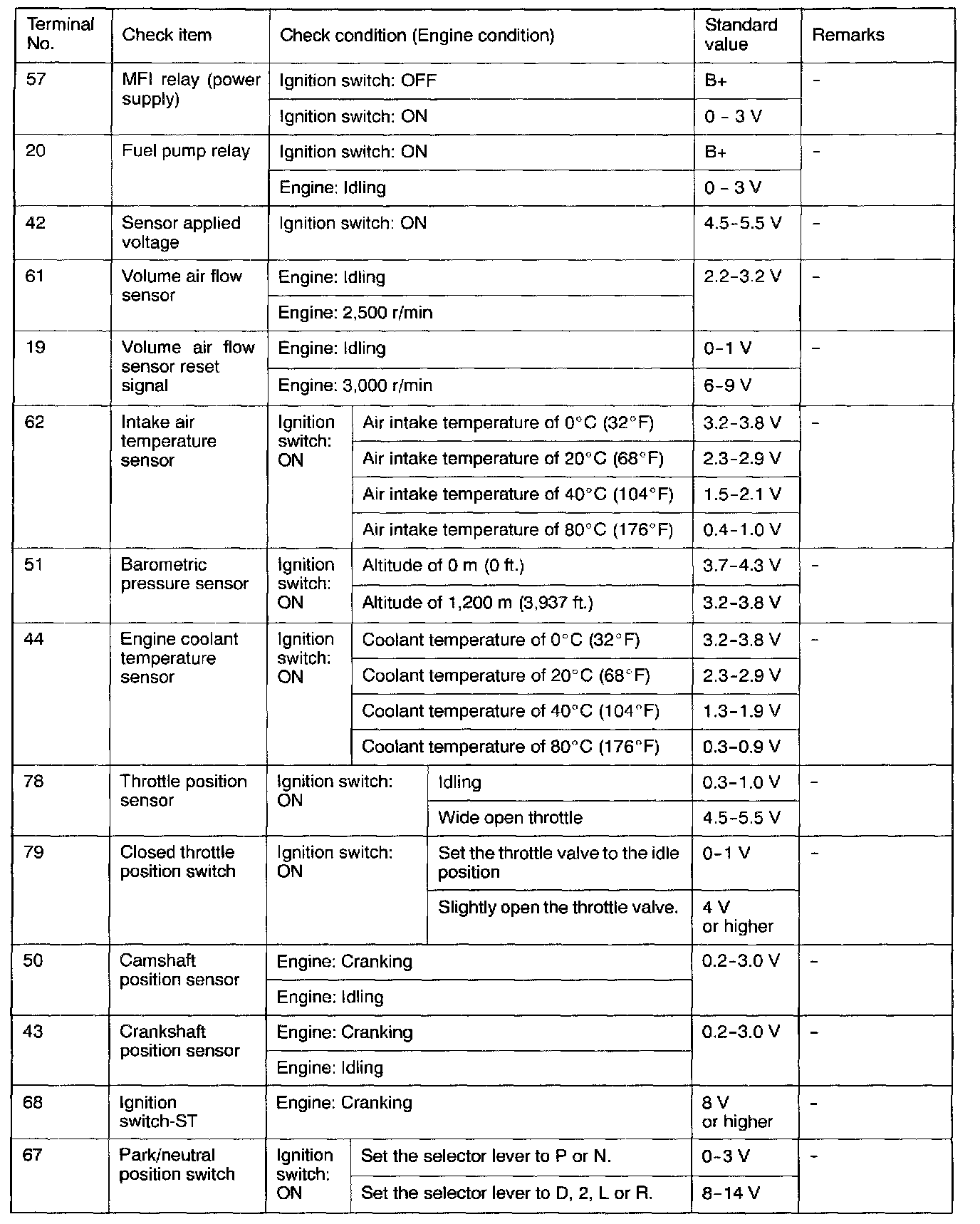

Part 2 Of 4:

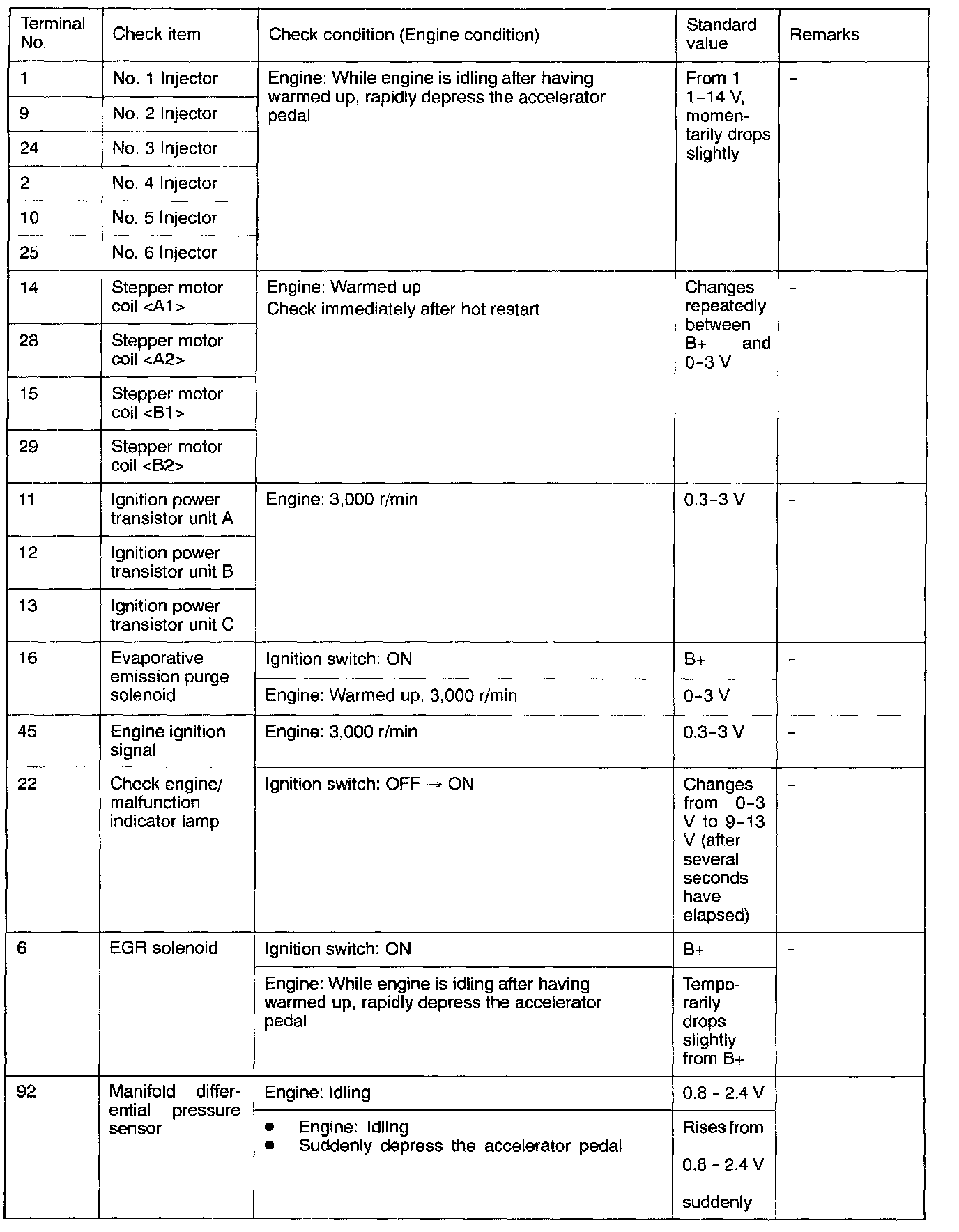

Part 3 Of 4:




Part 4 Of 4:
