Connector and Ground Indicators

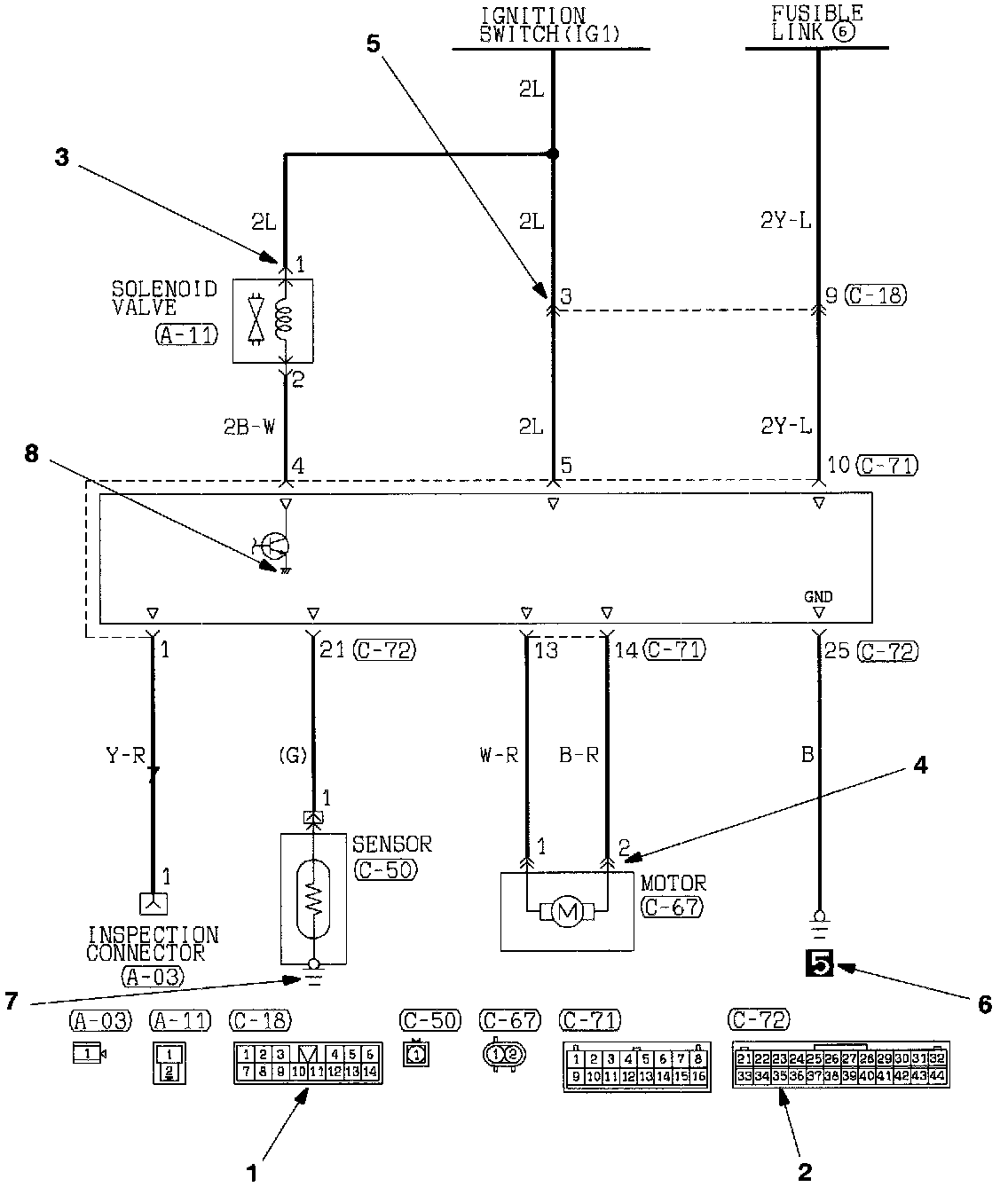

How To Read Circuit Diagrams - Connector/Grounding Indications (Part 1 Of 3):

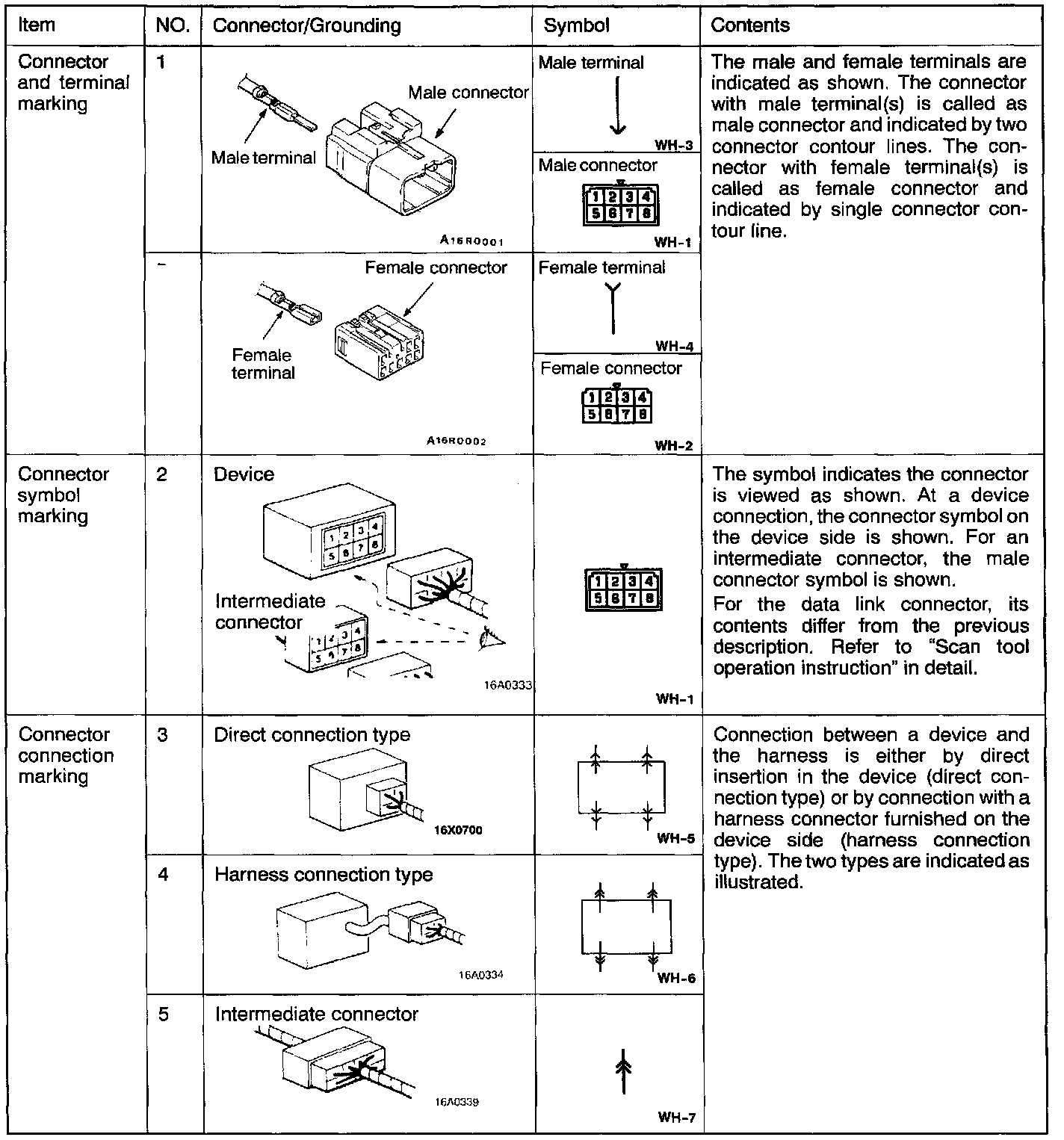

How To Read Circuit Diagrams - Connector/Grounding Indications (Part 2 Of 3):

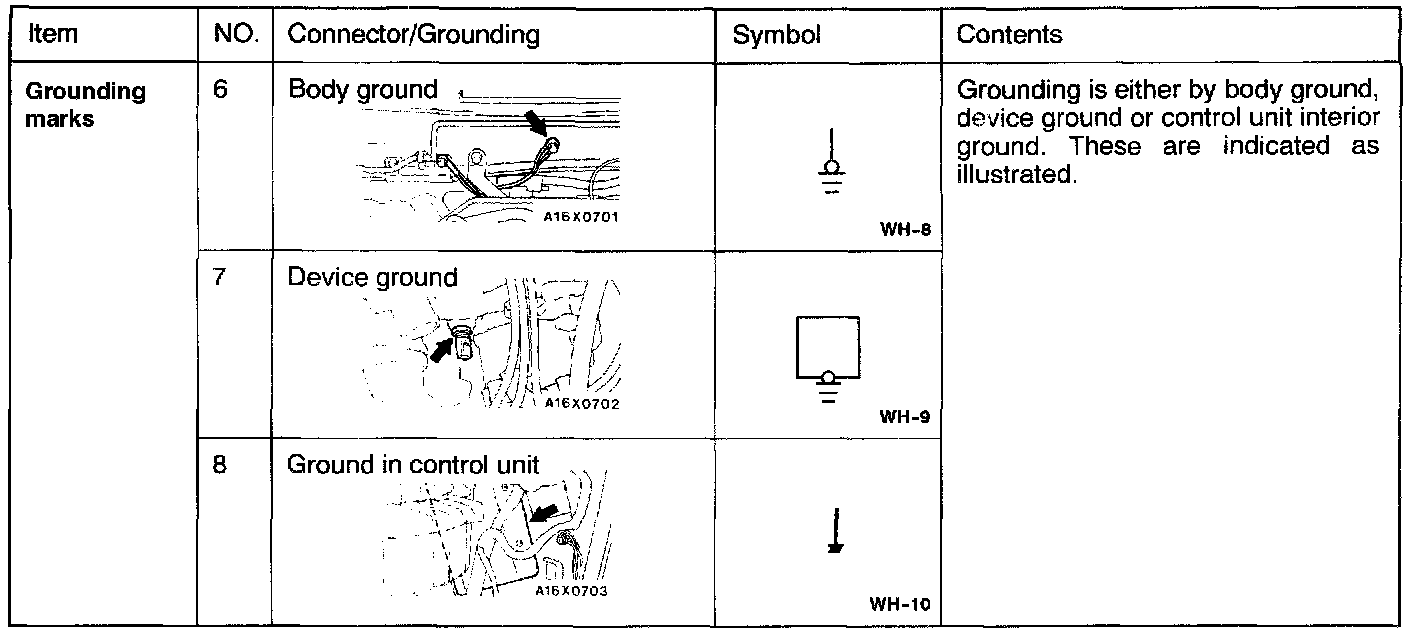

How To Read Circuit Diagrams - Connector/Grounding Indications (Part 3 Of 3):
