A/T Technical Data

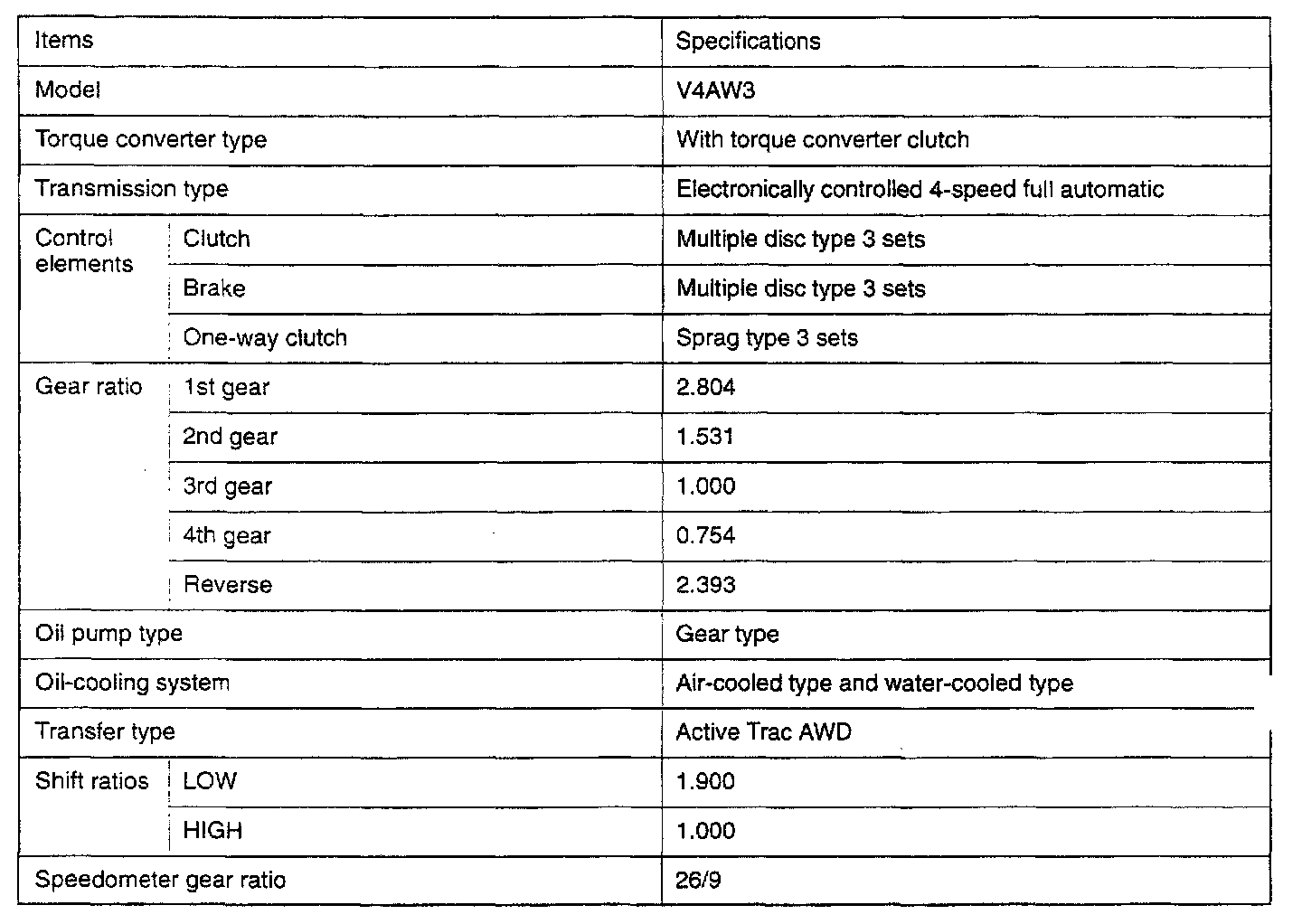

V4AW3 4-spd A/T, Gear Ratios:

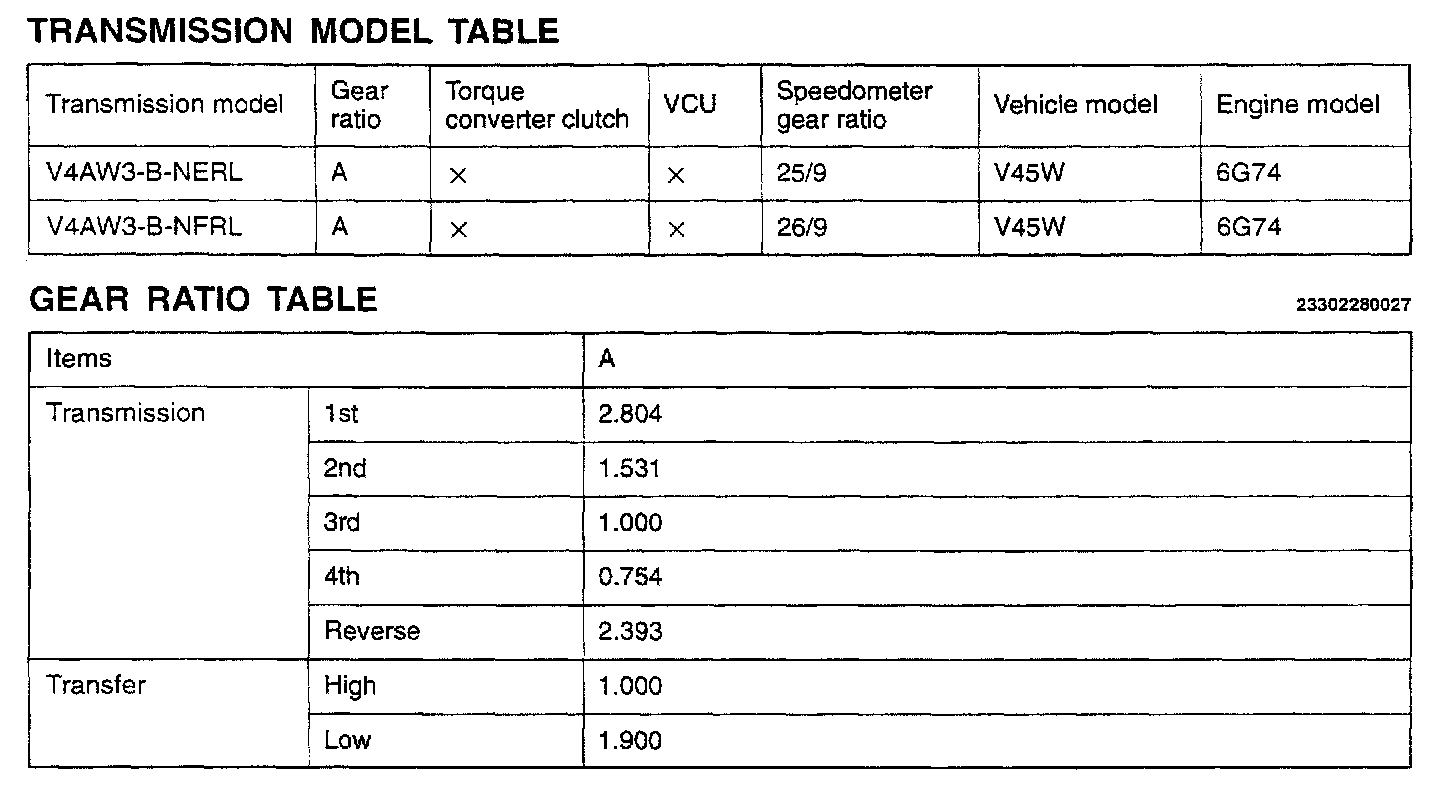

V4AW3 4-spd A/T, Gear Ratios:

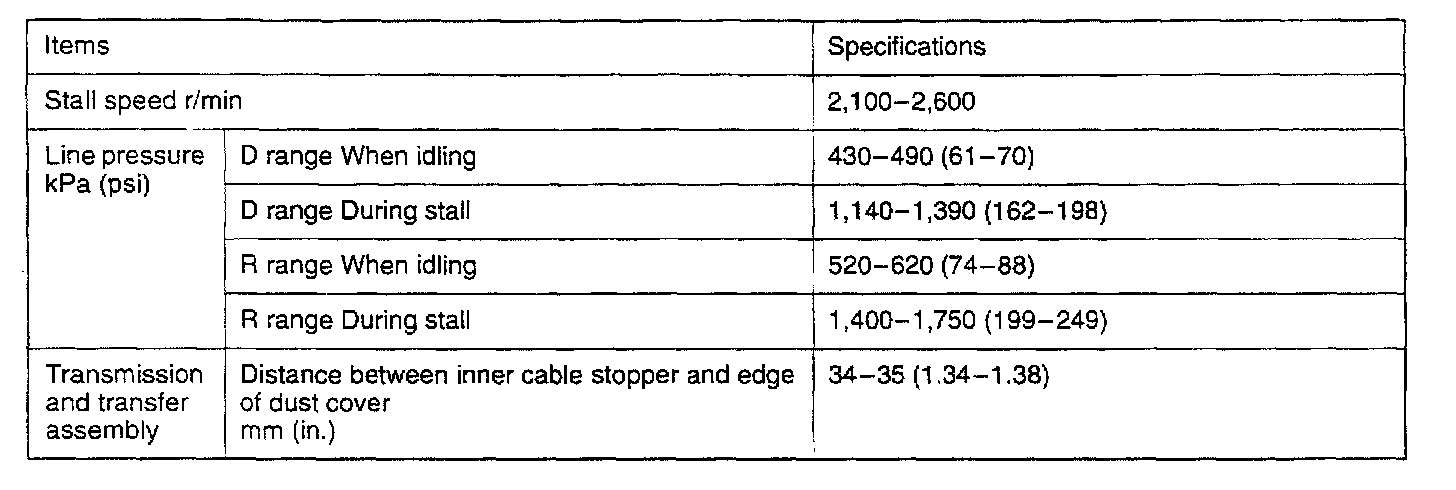

V4AW3 4-spd A/T, Stall Speed, Line Pressure & Transfer Assembly:

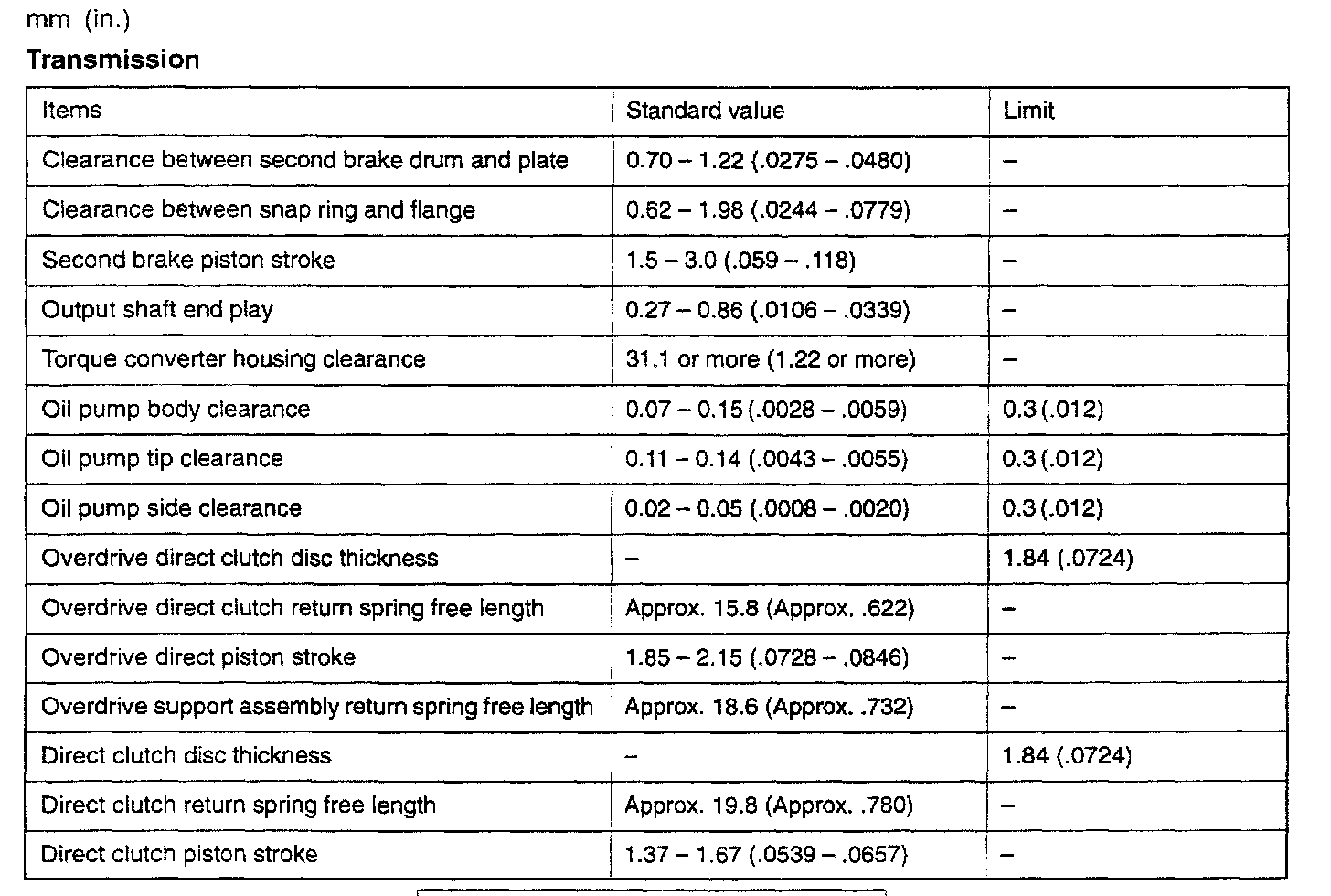

V4AW3 4-spd A/T, Transmission Standard Values & Limits:

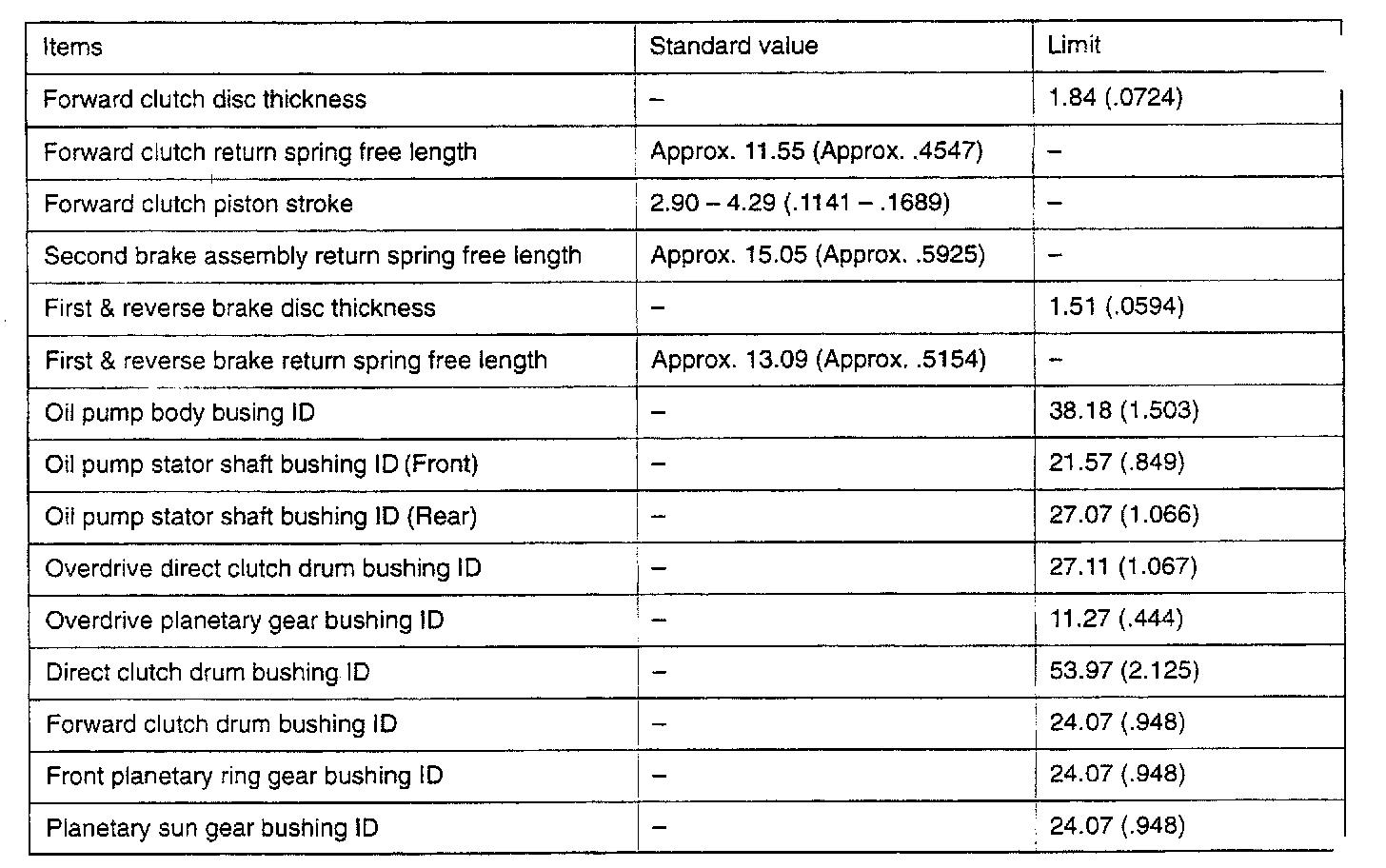

V4AW3 4-spd A/T, Transmission Standard Values & Limits:

V4AW3 4-spd A/T, Transfer Standard Values & Limits:

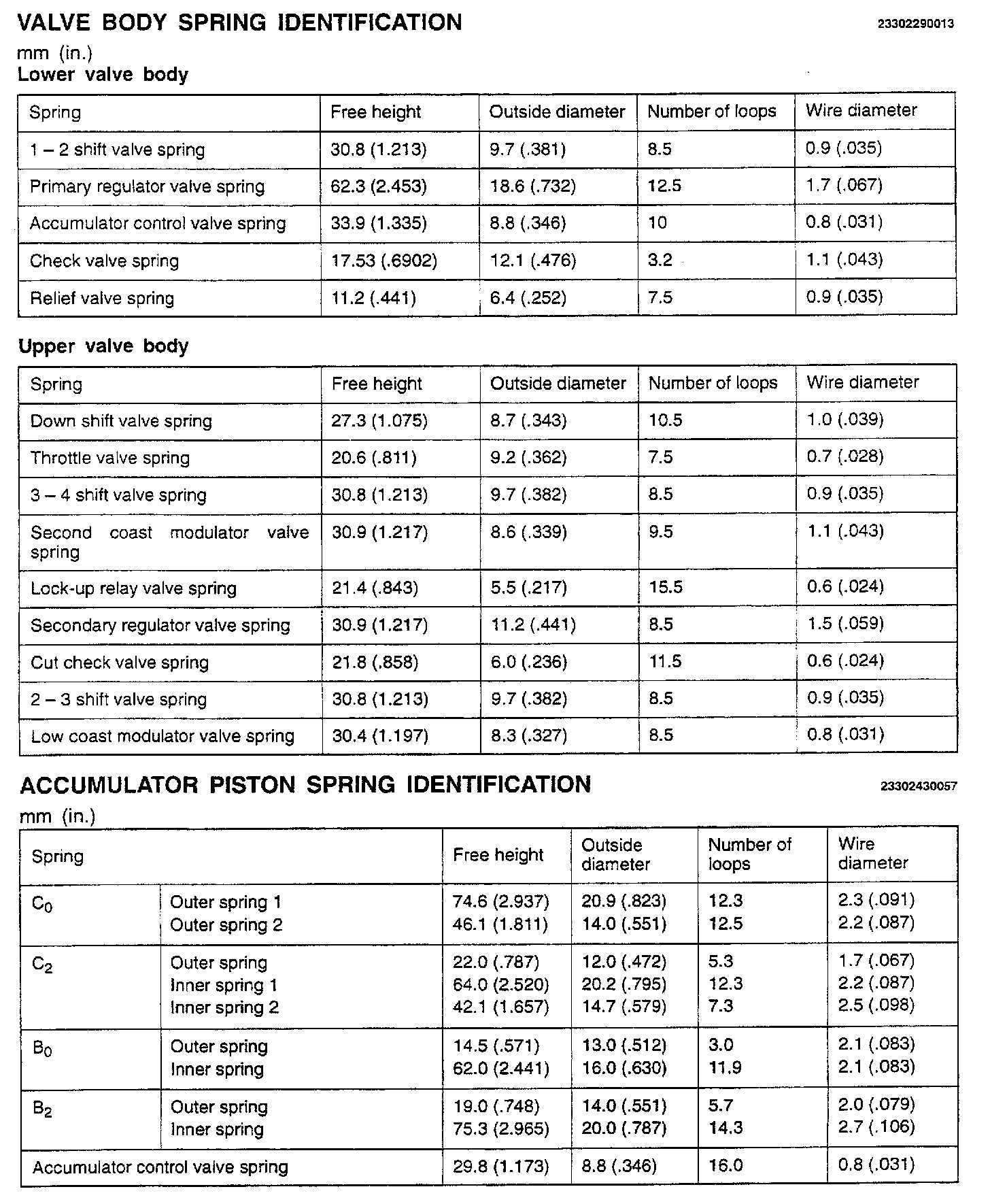

V4AW3 4-spd A/T, Valve Body & Accumulator Springs:

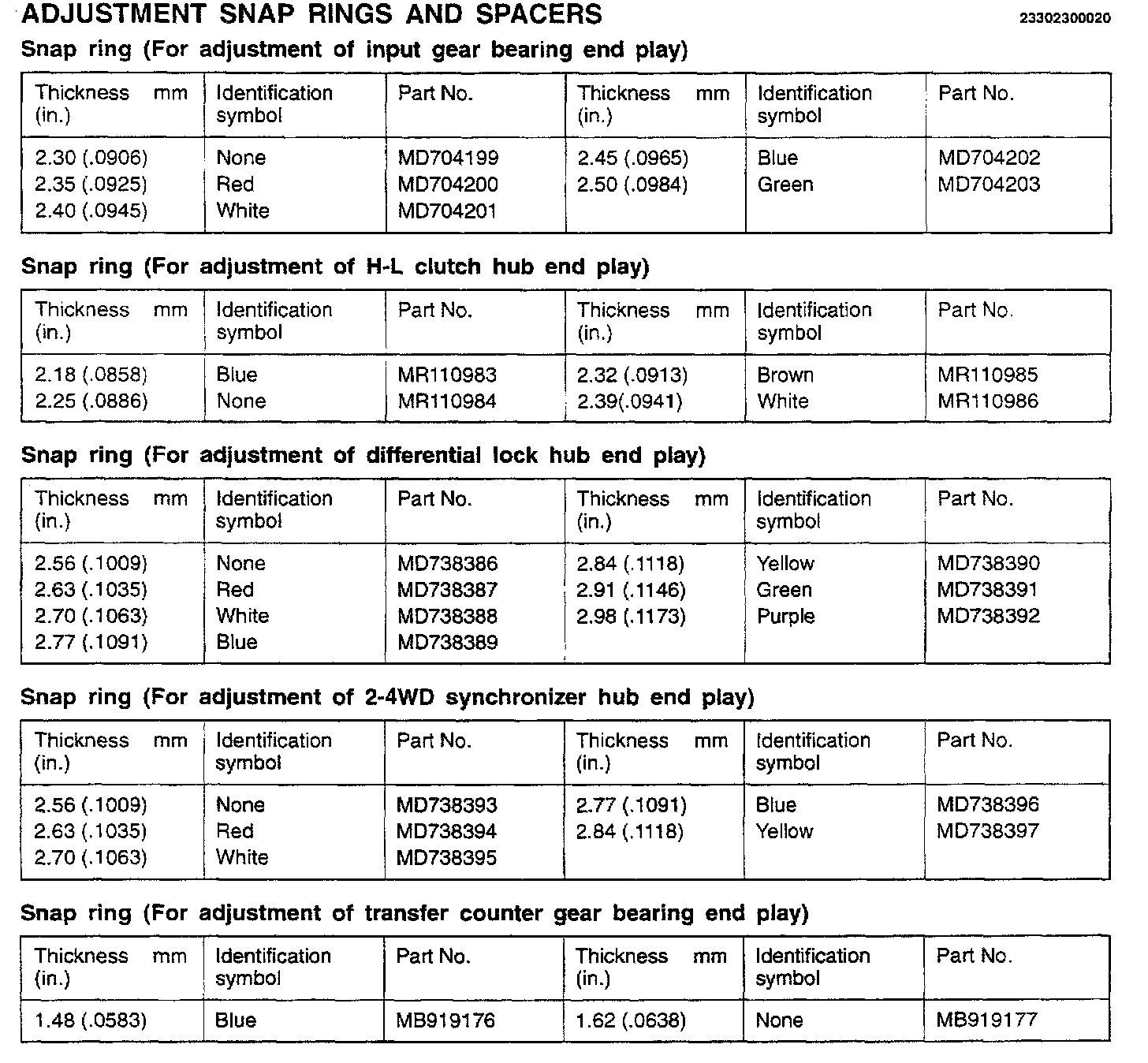

V4AW3 4-spd A/T, Transmission End Play:

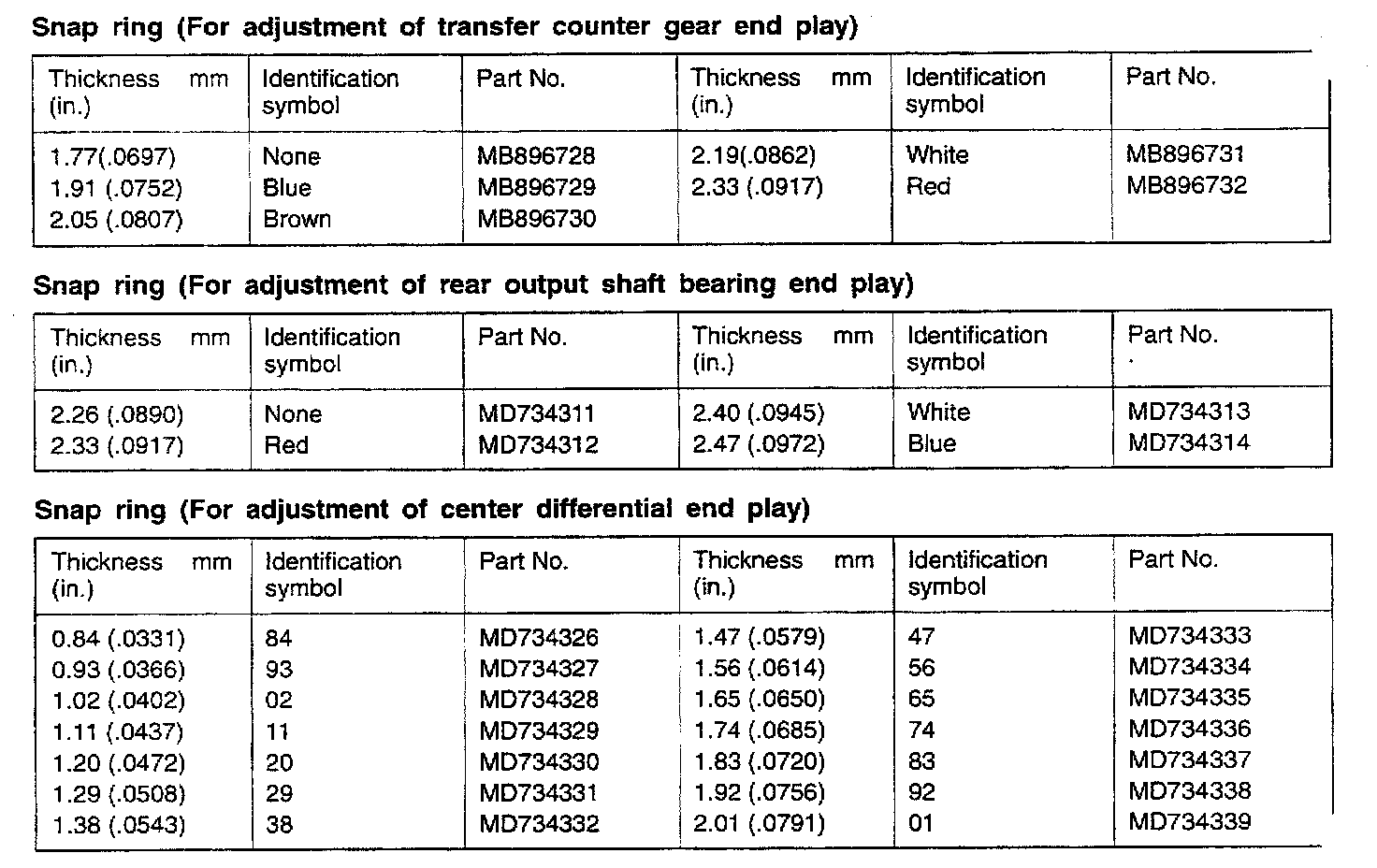

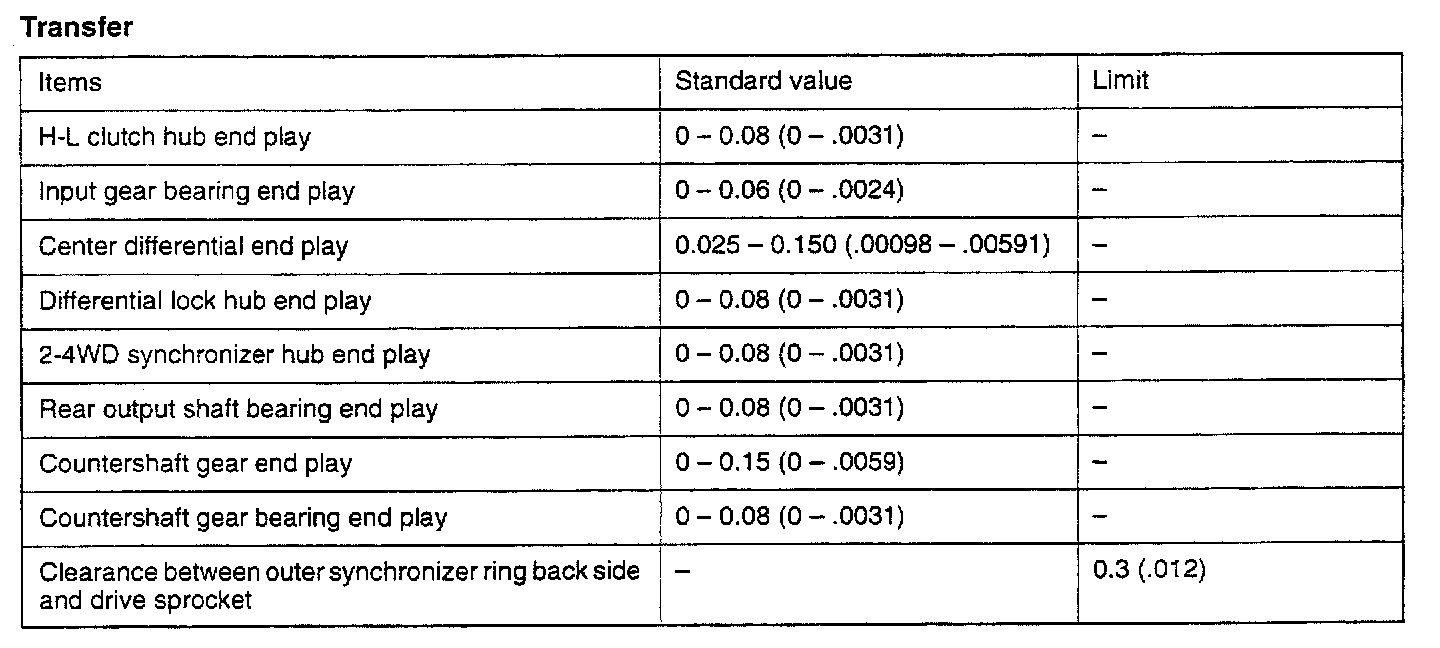

V4AW3 4-spd A/T, Transfer, Output Shaft & Differential End Play:
