Transfer Case Technical Data

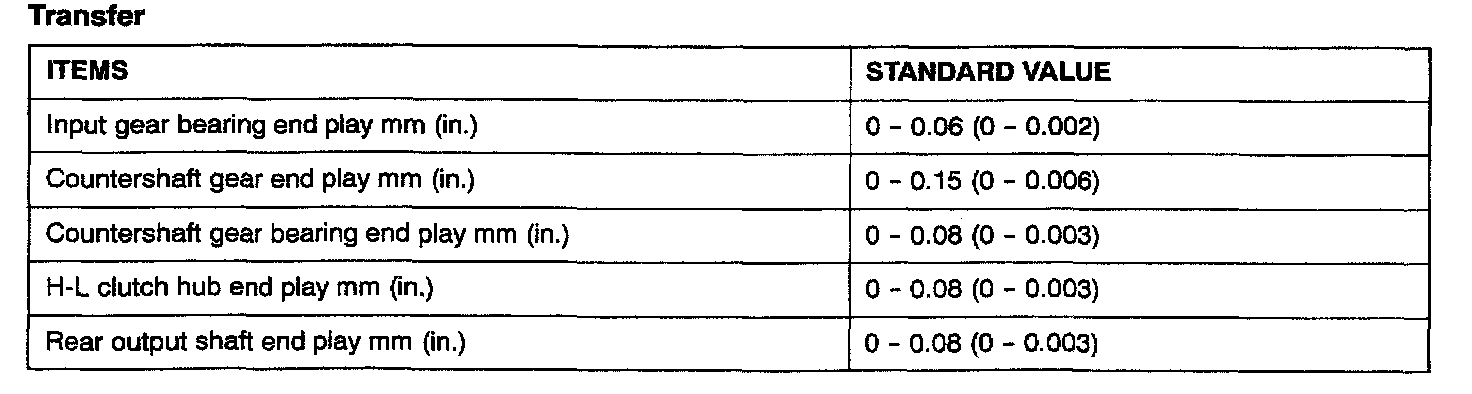

V4AW3 4-spd A/T, Transfer Standard Values & Limits:





V4A51 4-spd A/T, Transfer Standard Values:
