System Specifications

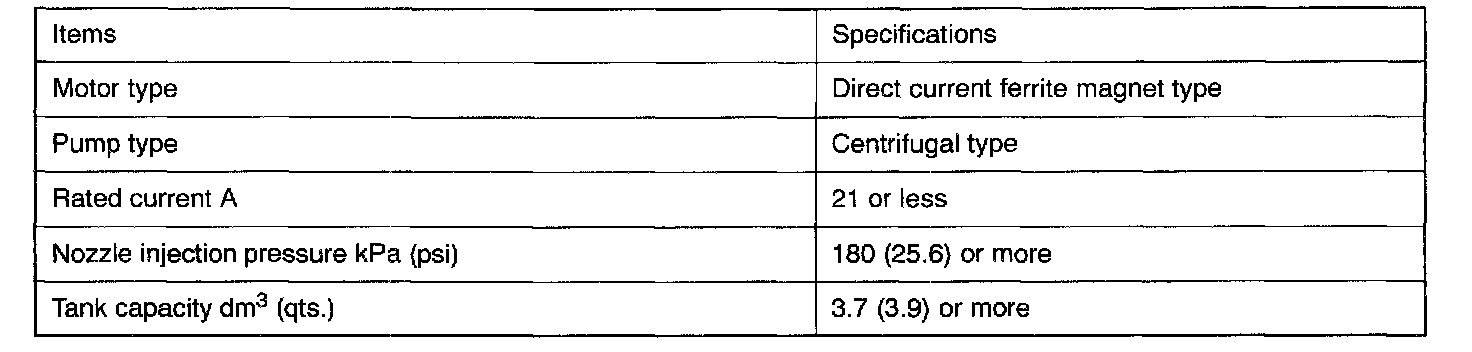

Windshield Washer Motor and Pump:

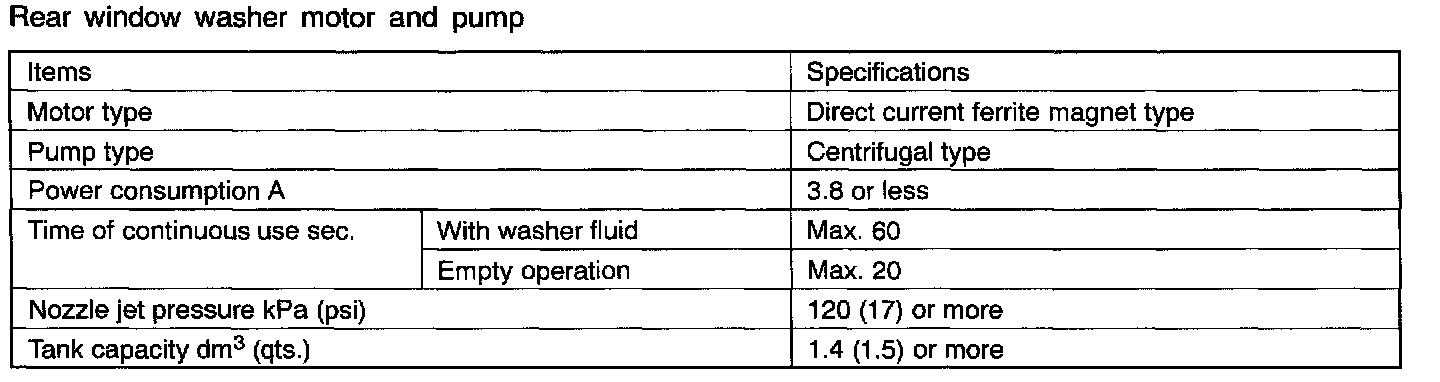

Rear Window Washer Motor and Pump:



Headlight Washer Motor and Pump:
