Removal and Installation

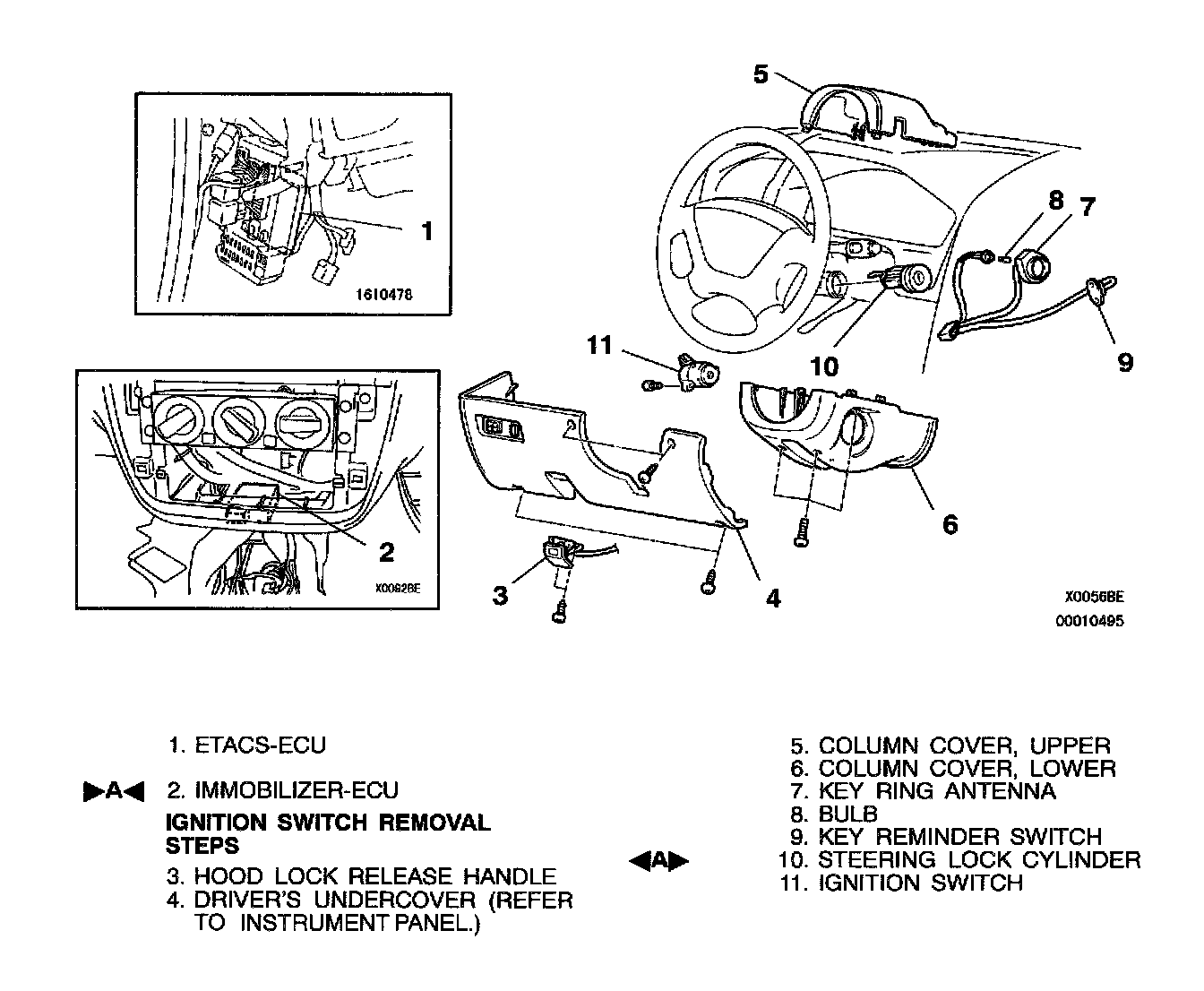

Ignition Switch And Immobilizer System - Removal And Installation:

Ignition Switch And Immobilizer System - Removal And Installation:

1. Insert the key in the steering lock cylinder and turn it to the "ACC" Position.
2. Using a small Phillips head screwdriver, pull the steering lock cylinder toward you.

INSTALLATION SERVICE POINT

>A< IMMOBILIZER-ECU INSTALLATION
If the immobilizer-ECU is replaced, peel off the immobilizer serial number sticker from shown position. Then attach a new immobilizer-ECU identification sticker.
