Remote Controlled Mirror Assembly

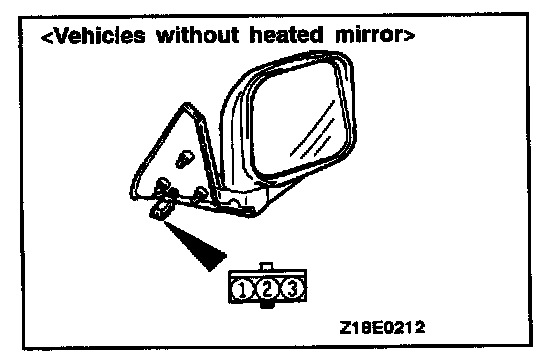

[Vehicles without heated mirror]

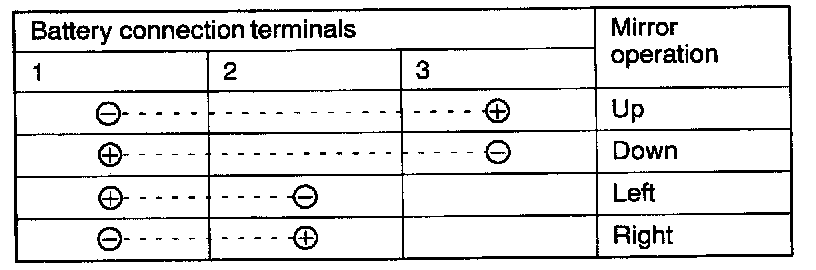

Check that the mirror moves as described in the table when each terminal is connected to the battery.

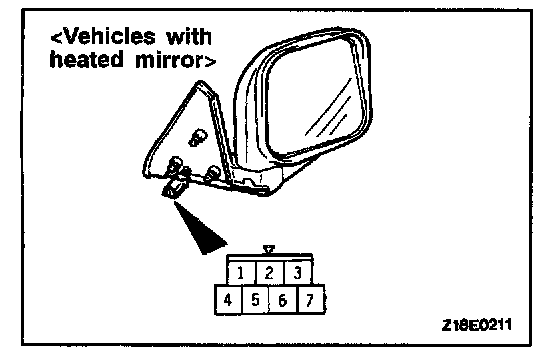

[Vehicles with heated mirror]

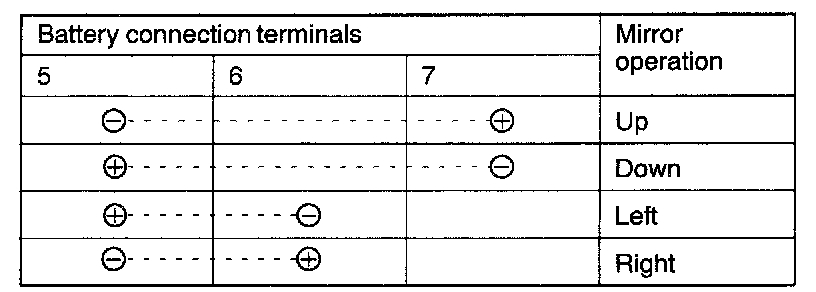

1. Check to be sure that the mirror moves as described in the table when each terminal is connected to the battery.

Vehicles With Heated Mirror:

2. Check if there is continuity between terminals (1) and (4).
