Brake Switch (Cruise Control): Testing and Inspection

AUTO-CRUISE CONTROL COMPONENT CHECK

Stop Light Switch/Brake Switch Check




1. Disconnect the connector.

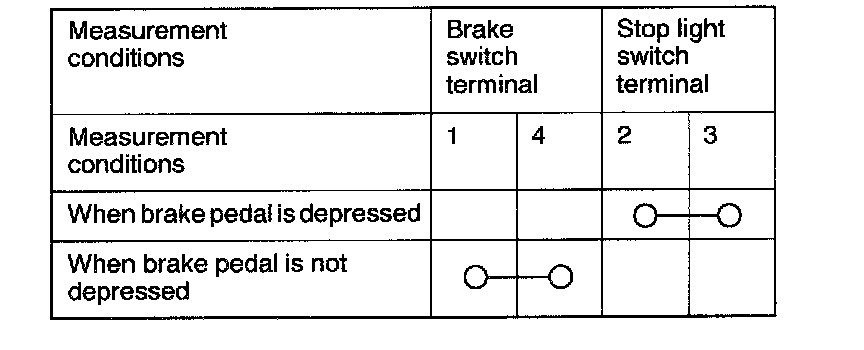

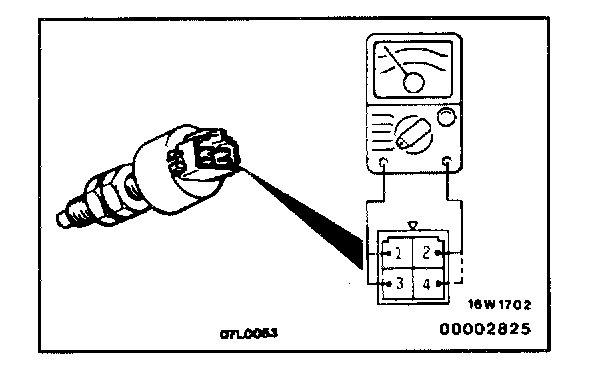

2. Check for continuity between the terminals of the switch.
