Cruise Control Servo Cable: Adjustments
<Fedaral>:
<California>:

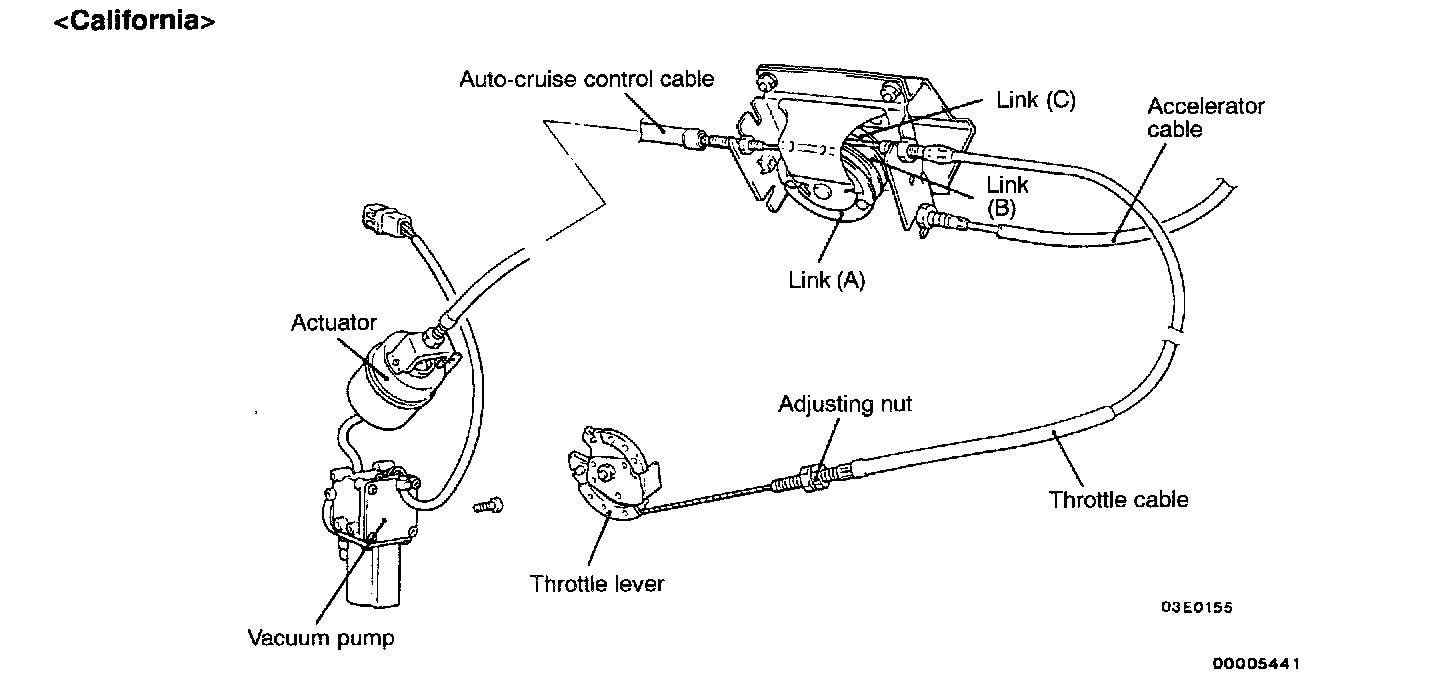

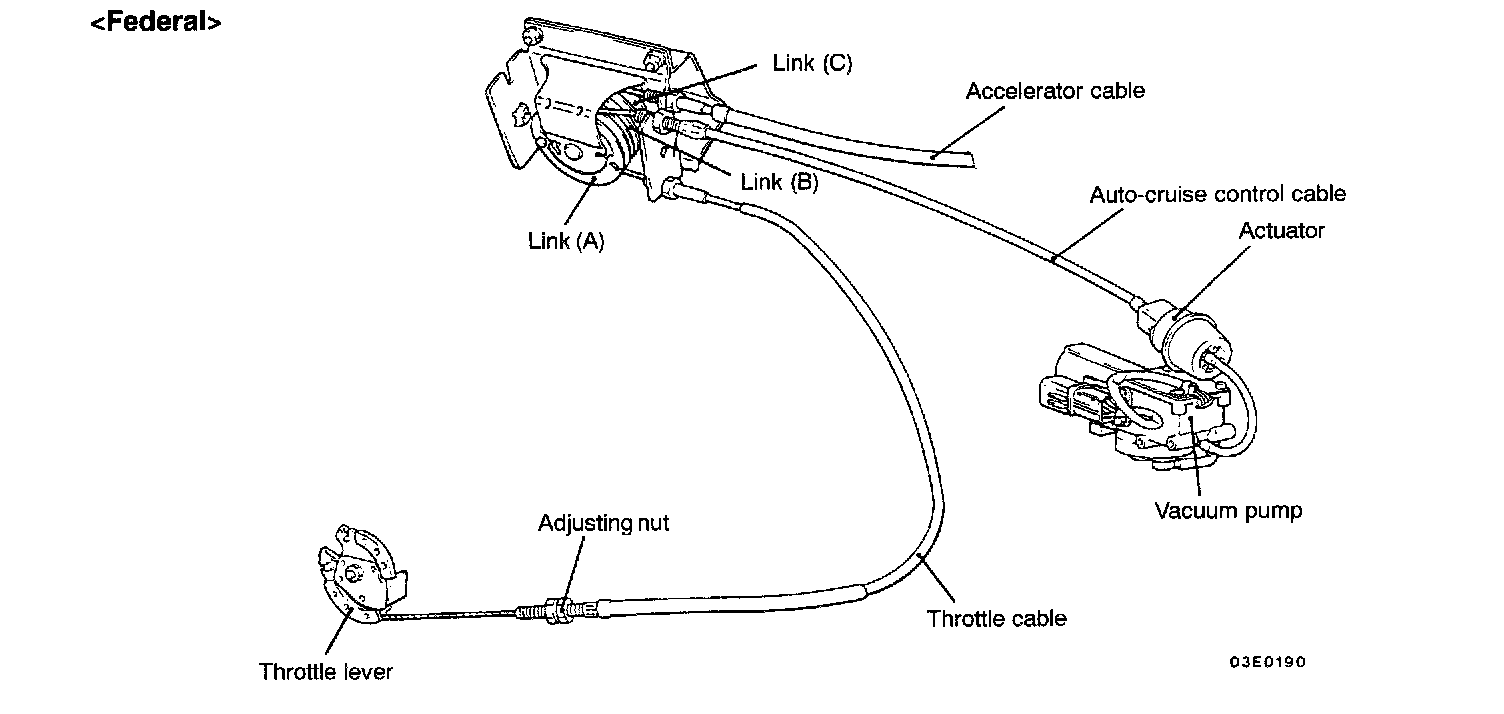

COMPONENTS
AUTO-CRUISE CONTROL CABLE ADJUSTMENT
1. Remove the link protector.
2. Check if there is any deflection in the inner cables of the accelerator cable, cruise control cable and throttle cable.
If there is excessive deflection or no play in an inner cable, loosen the adjusting bolts and nuts to release each link from the throttle lever.
(Do not remove the adjusting bolts or nuts.)
Accelerator Cable
1. While holding link (C) so that it is touching the stopper, adjust the play of the accelerator cable with the adjusting nut so that the cable play is at the standard value.
Standard value: ELC-4A/T 2 - 3 mm (0.08 - 0.12 in.)
2. After adjusting, secure the cable with the lock nut.
Throttle Cable

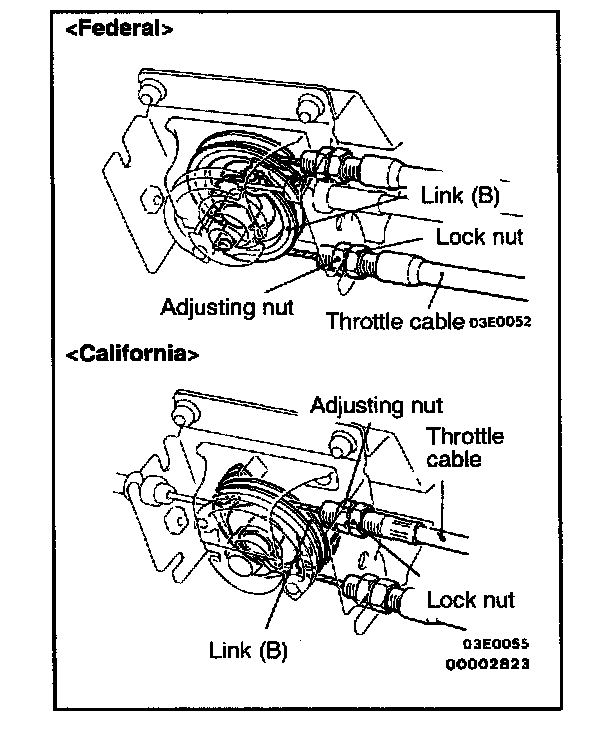

1. While holding link (B) so that it is touching link (C), adjust the play of the throttle cable with the adjusting nut and adjusting bolts
Standard value: 1 - 2 mm (0.04 - 0.08 in.)
2. After adjusting, secure the cable with the lock nut.
Auto-cruise Control Cable

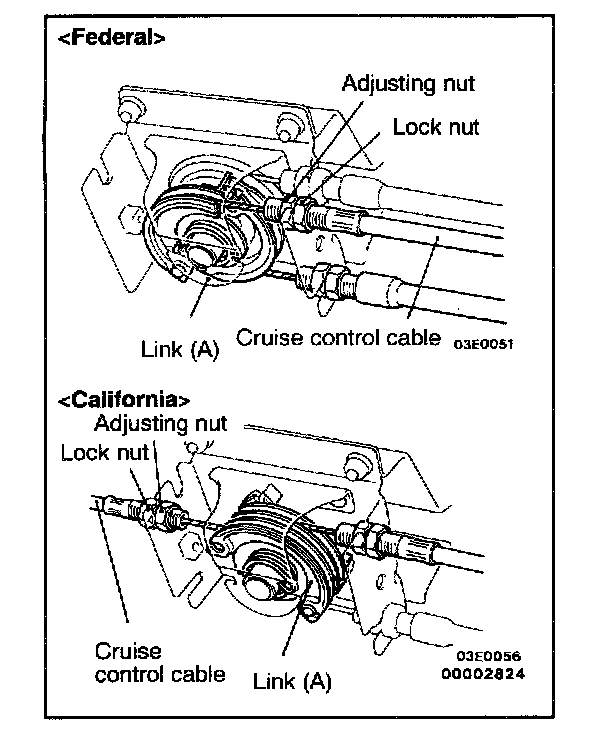

1. While holding link (A) so that it is touching link (B), adjust the play of the cruise control cable with the adjusting nut so that the cable play is at the standard value.
Standard value: 1 - 2 mm (0.04 - 0.08 in.)
2. After adjusting, secure the cable with the lock nut.
