Home >> Mitsubishi >> 2000 >> Montero 4WD V6-3.5L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Control Unit, Differential Lock

Control Unit, Differential Lock

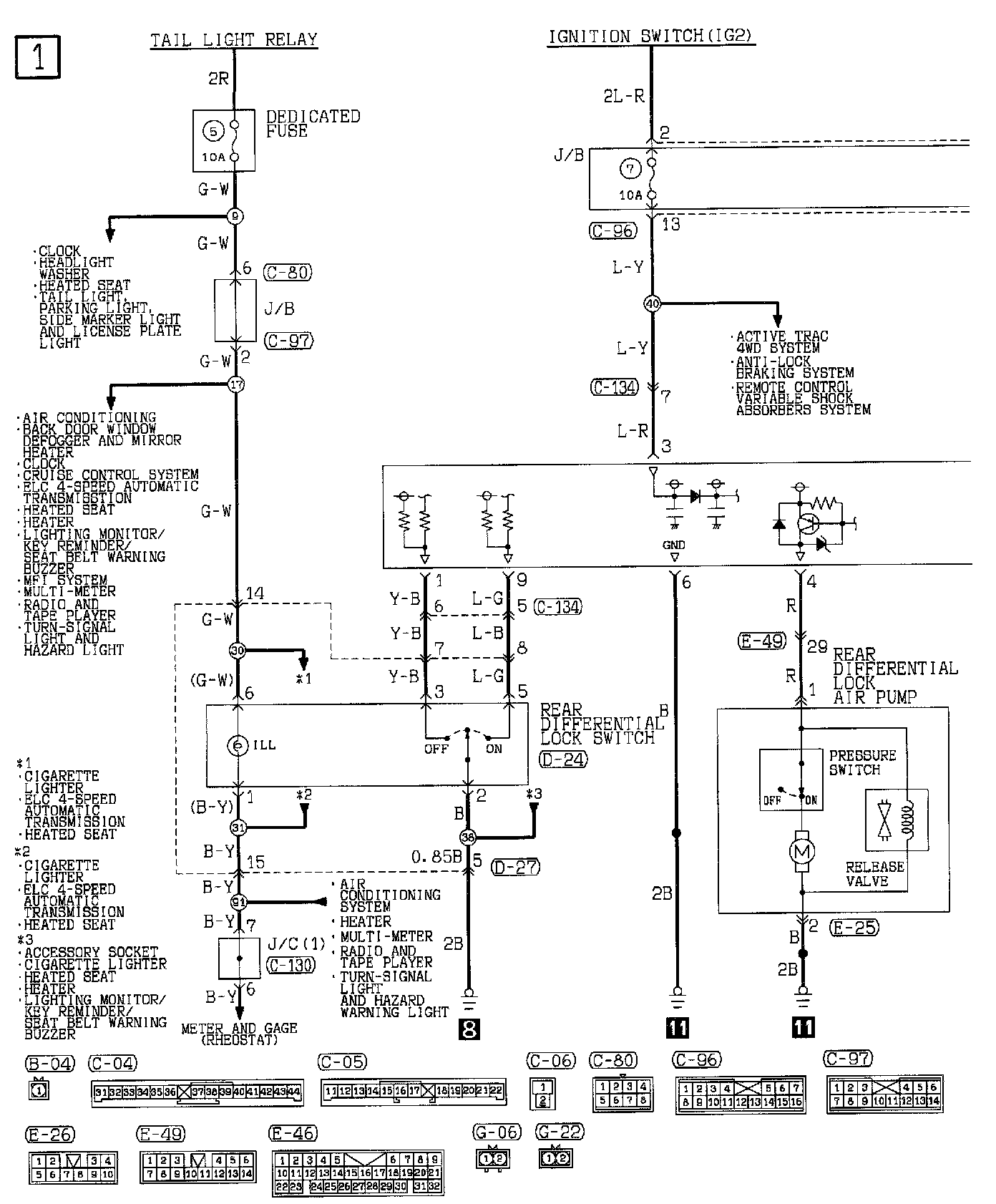

Part 1 Of 2:

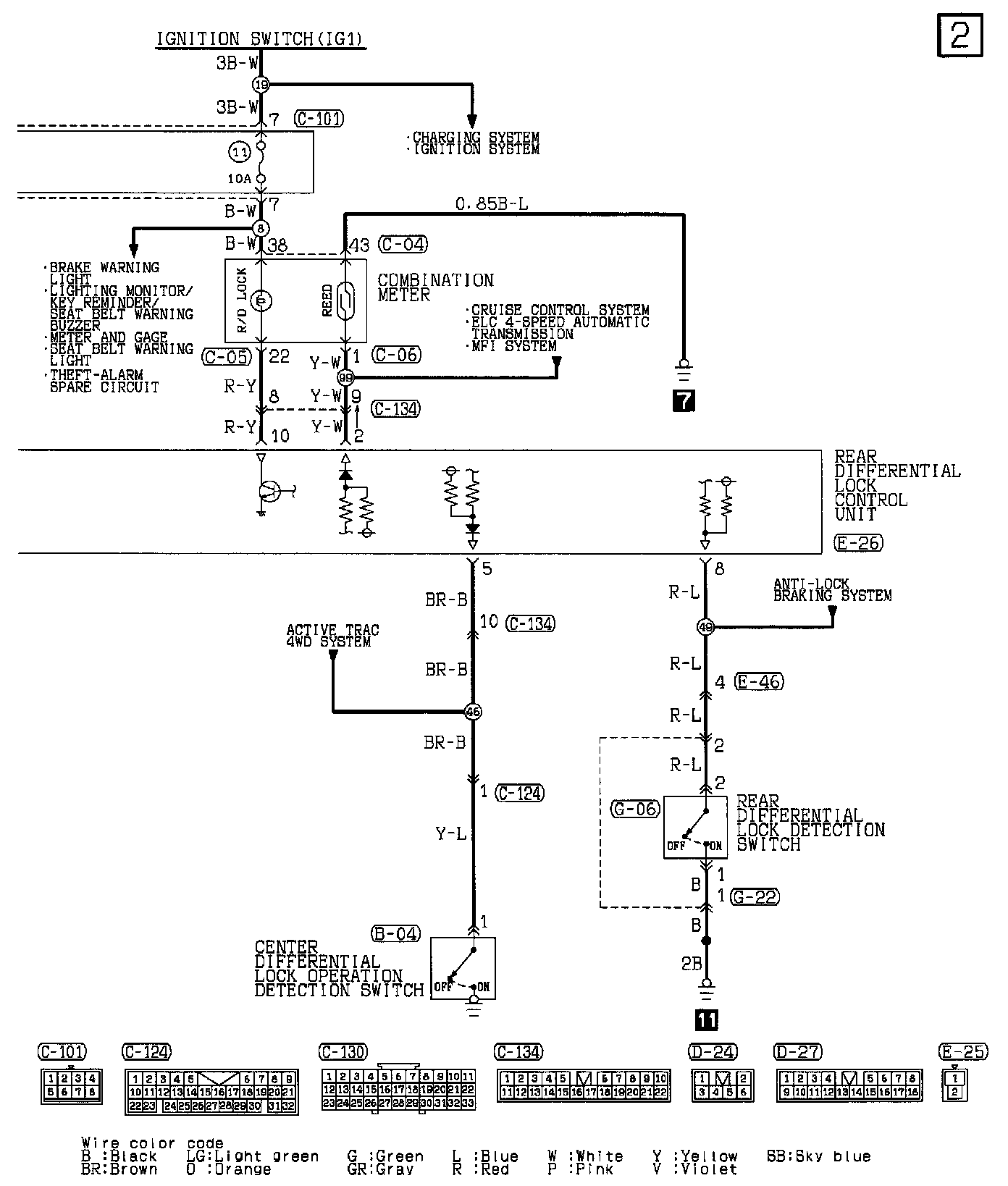

Part 2 Of 2:
