Relay Box: Application and ID

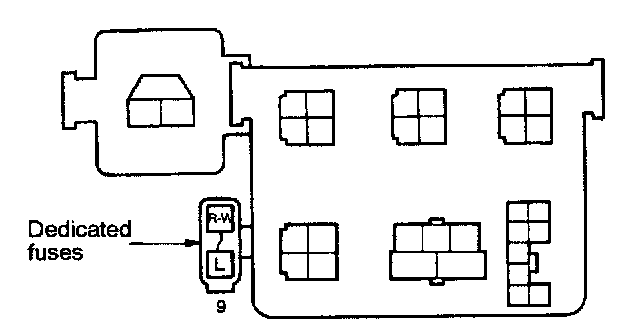

Relay Box In Passenger Compartment:

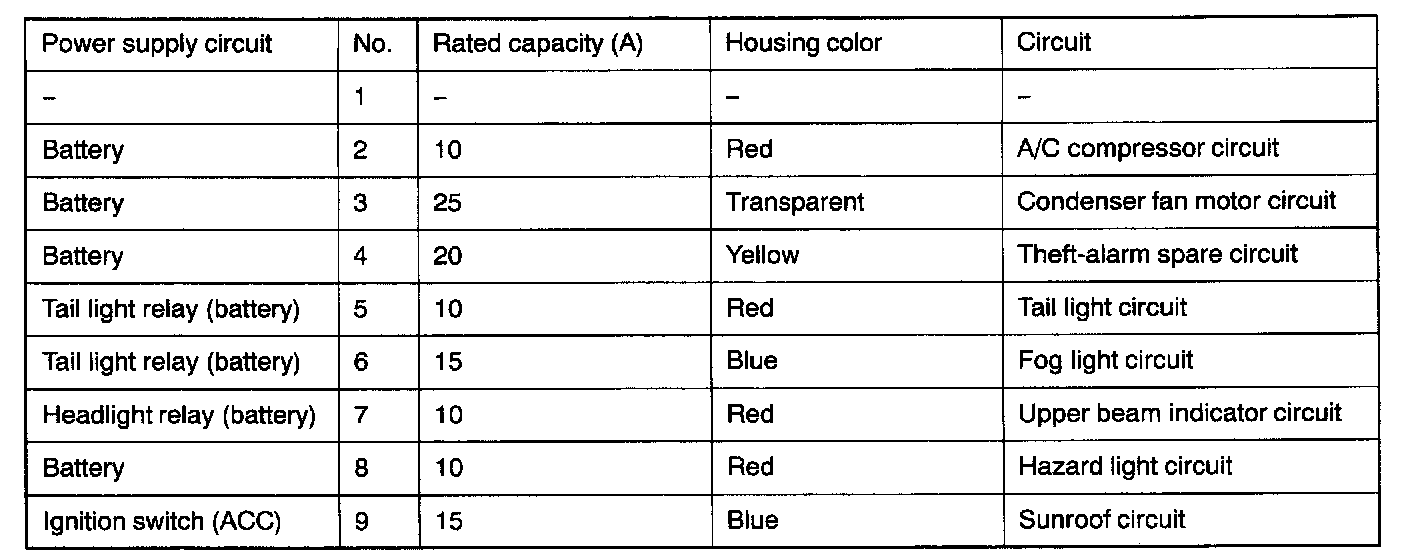

Relay Box In Passenger Compartment:
