Electrical Diagrams

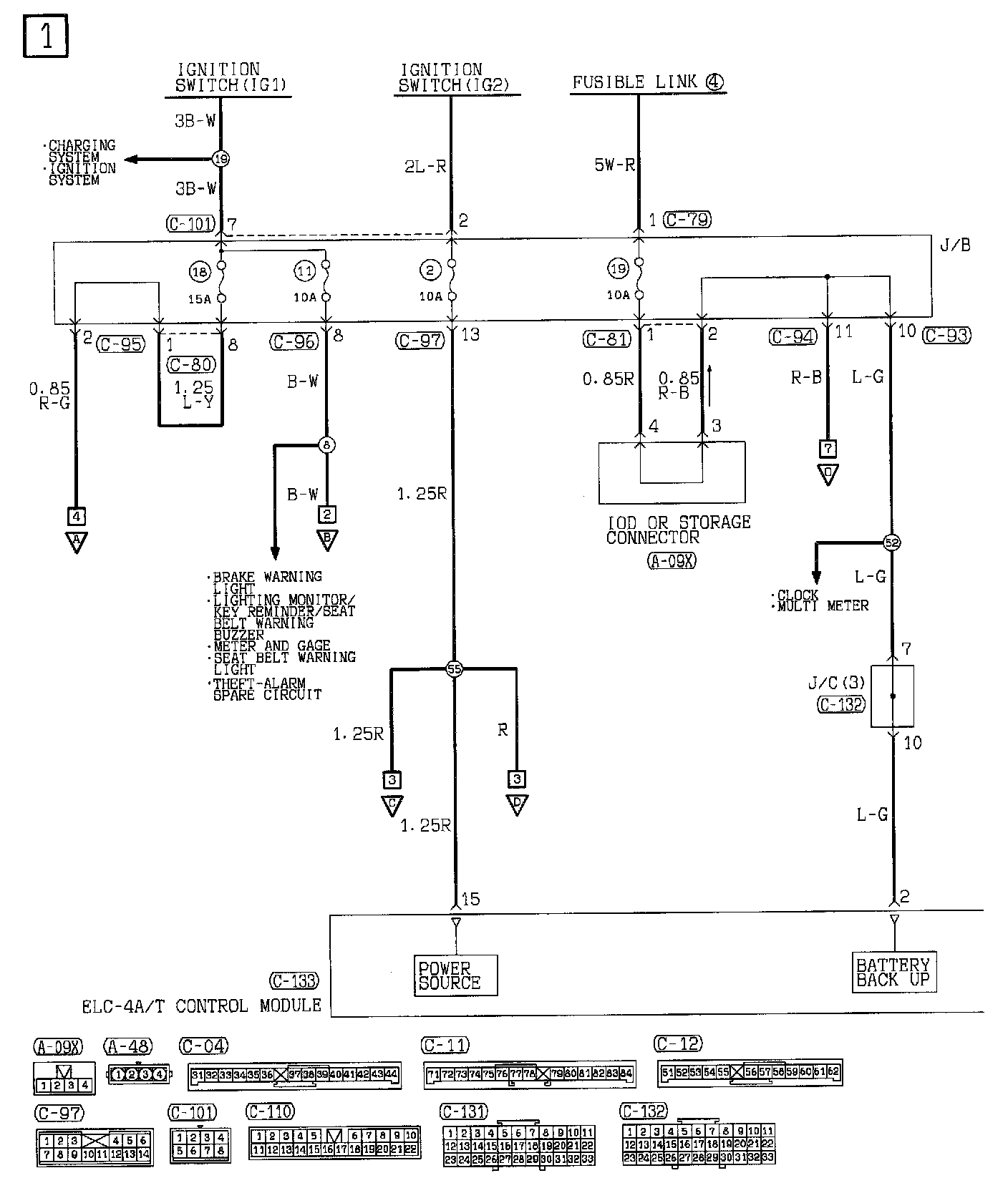

ELC-4 A/T Control Module
Power Source
Battery Back Up
J/B
J/C (3)
IOD or Storage Connector




Combination Meter

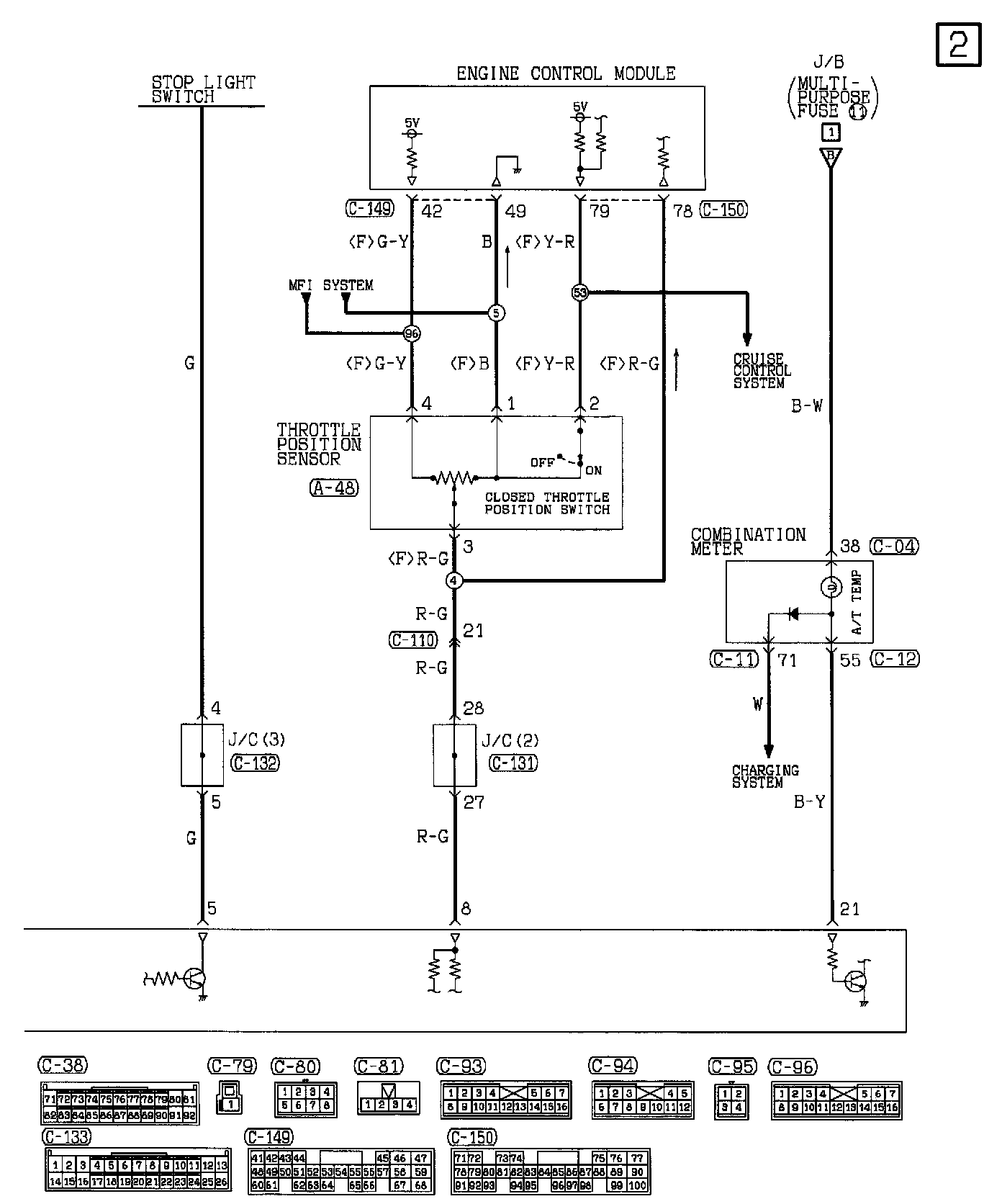

Engine Control Module
J/C (2, 3)
Throttle Position Sensor




Auto-Cruise Control Unit

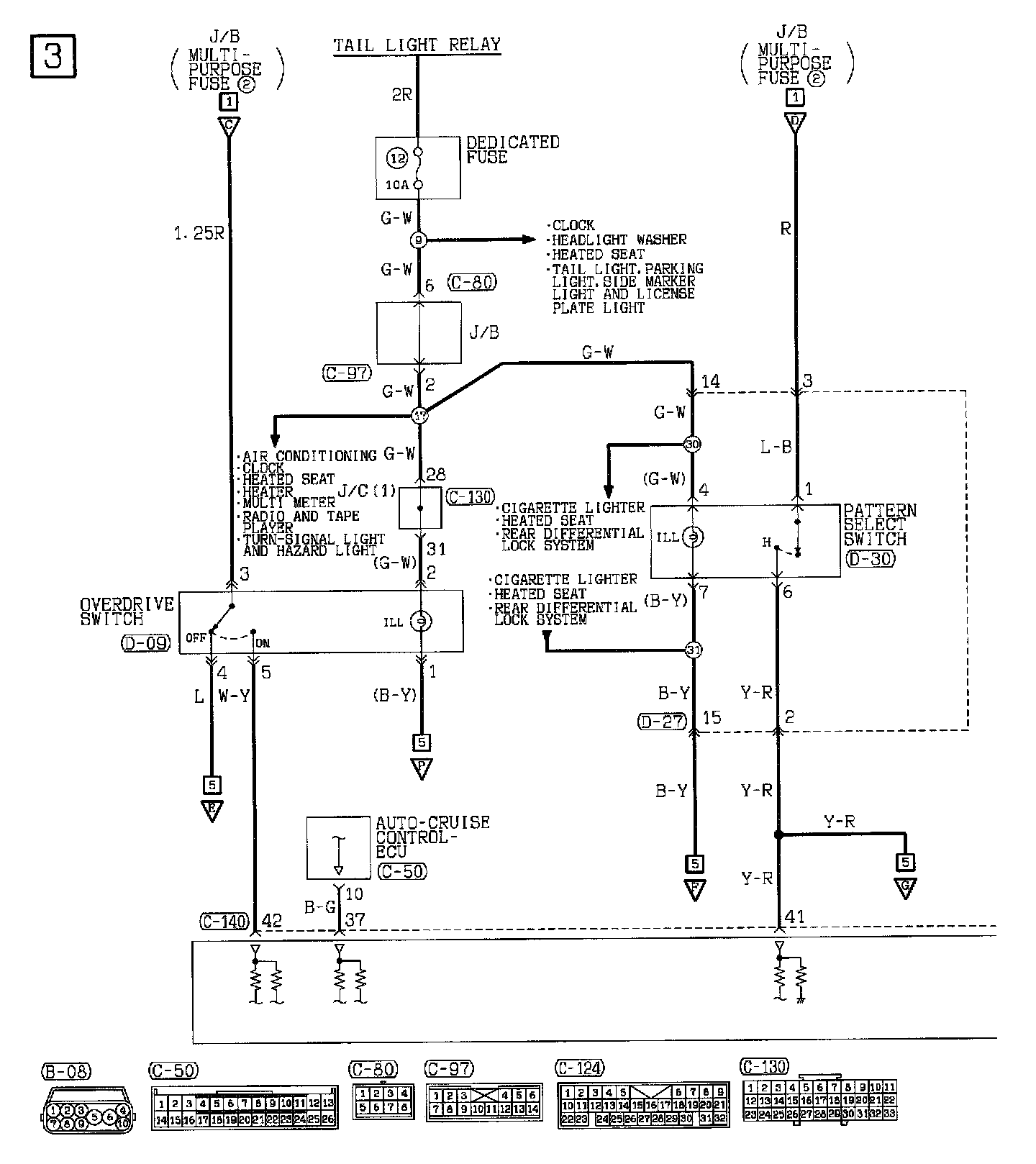

Dedicated Fuse
ELC-4 A/T Control Module
J/B
J/C (1)
Overdrive Switch
Pattern Select Switch

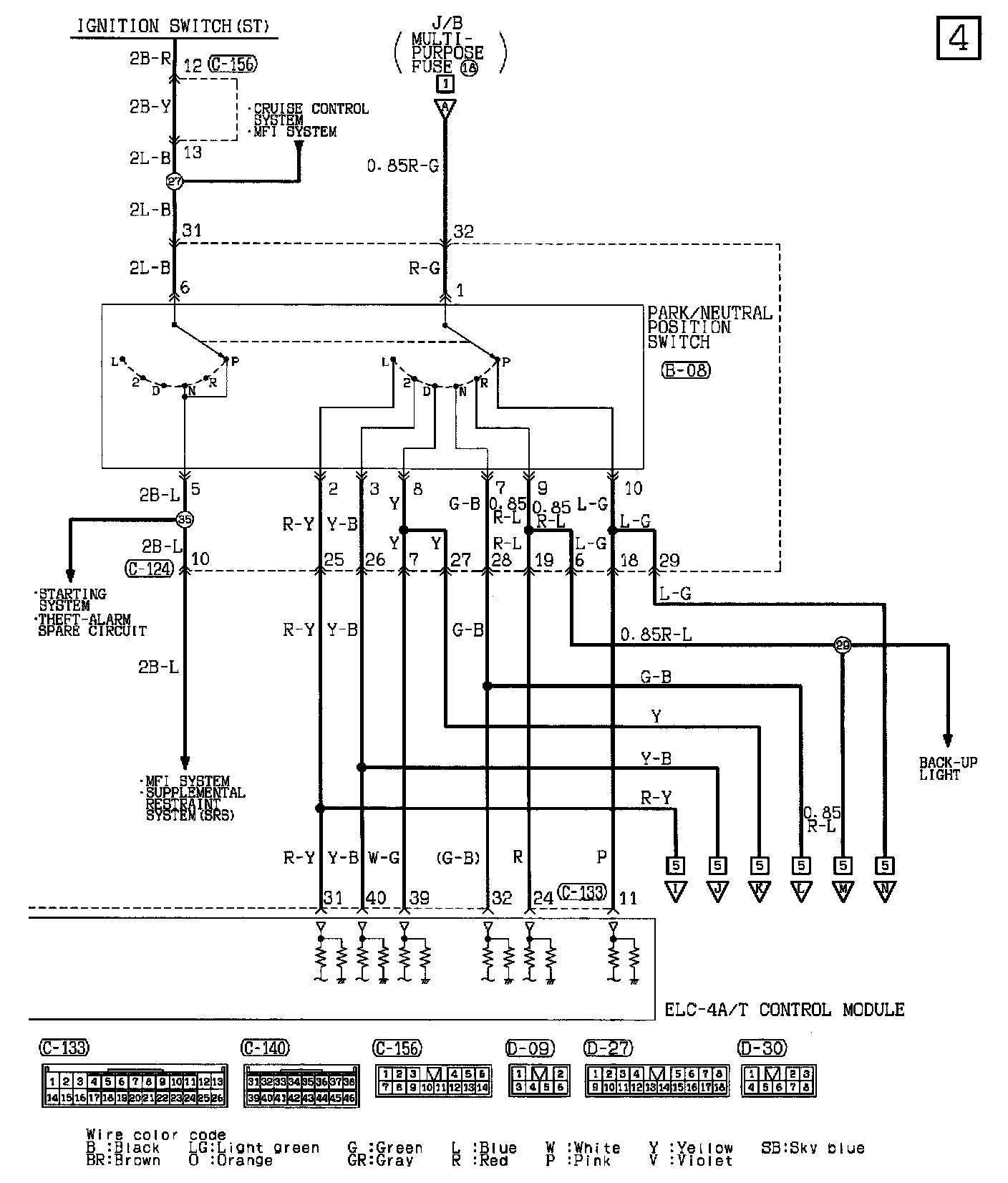

ELC-4 A/T Control Module
Park/Neutral Position Switch

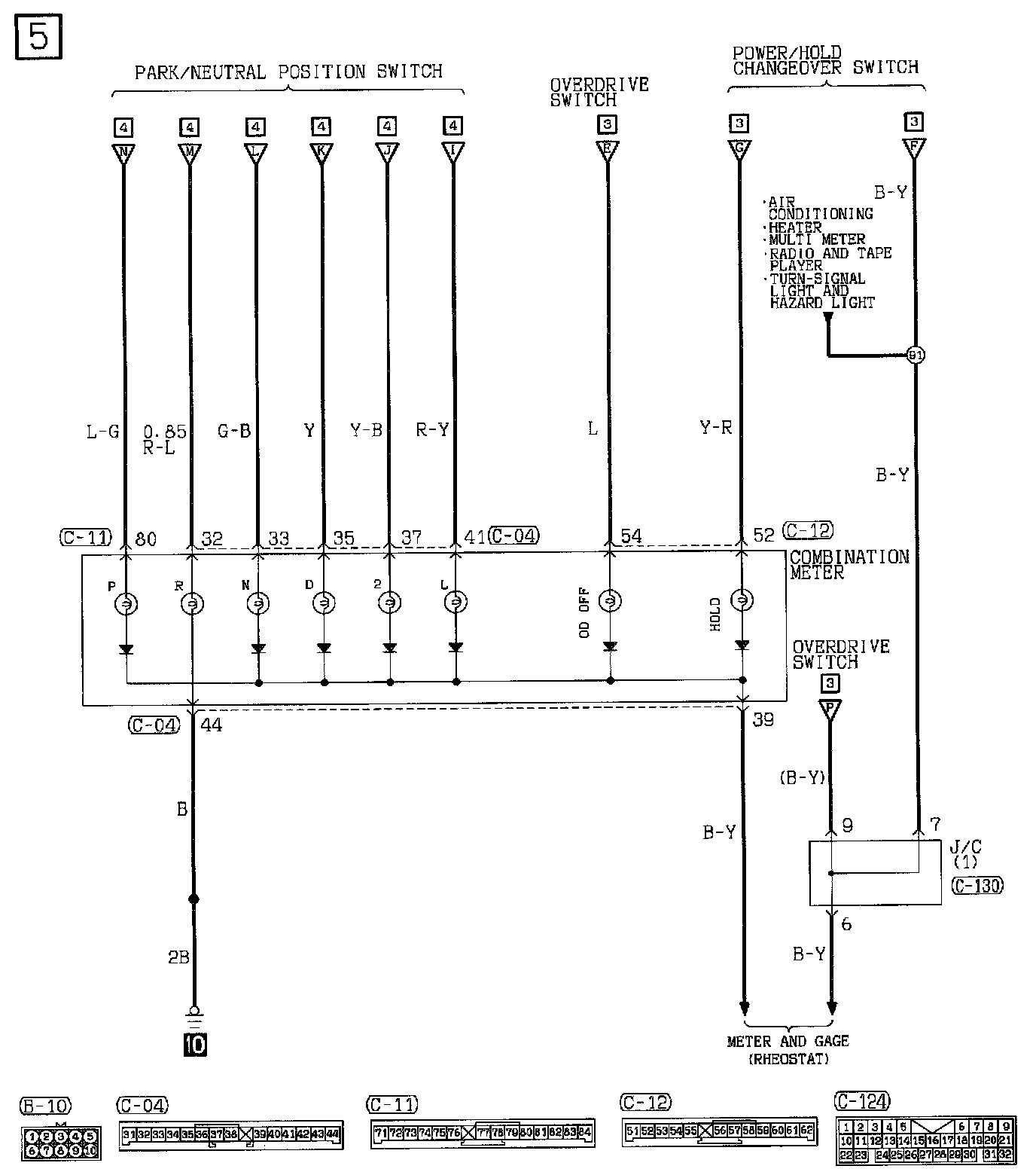

Combination Meter
J/C (1)




Automatic Transmission Fluid Temperature Sensor

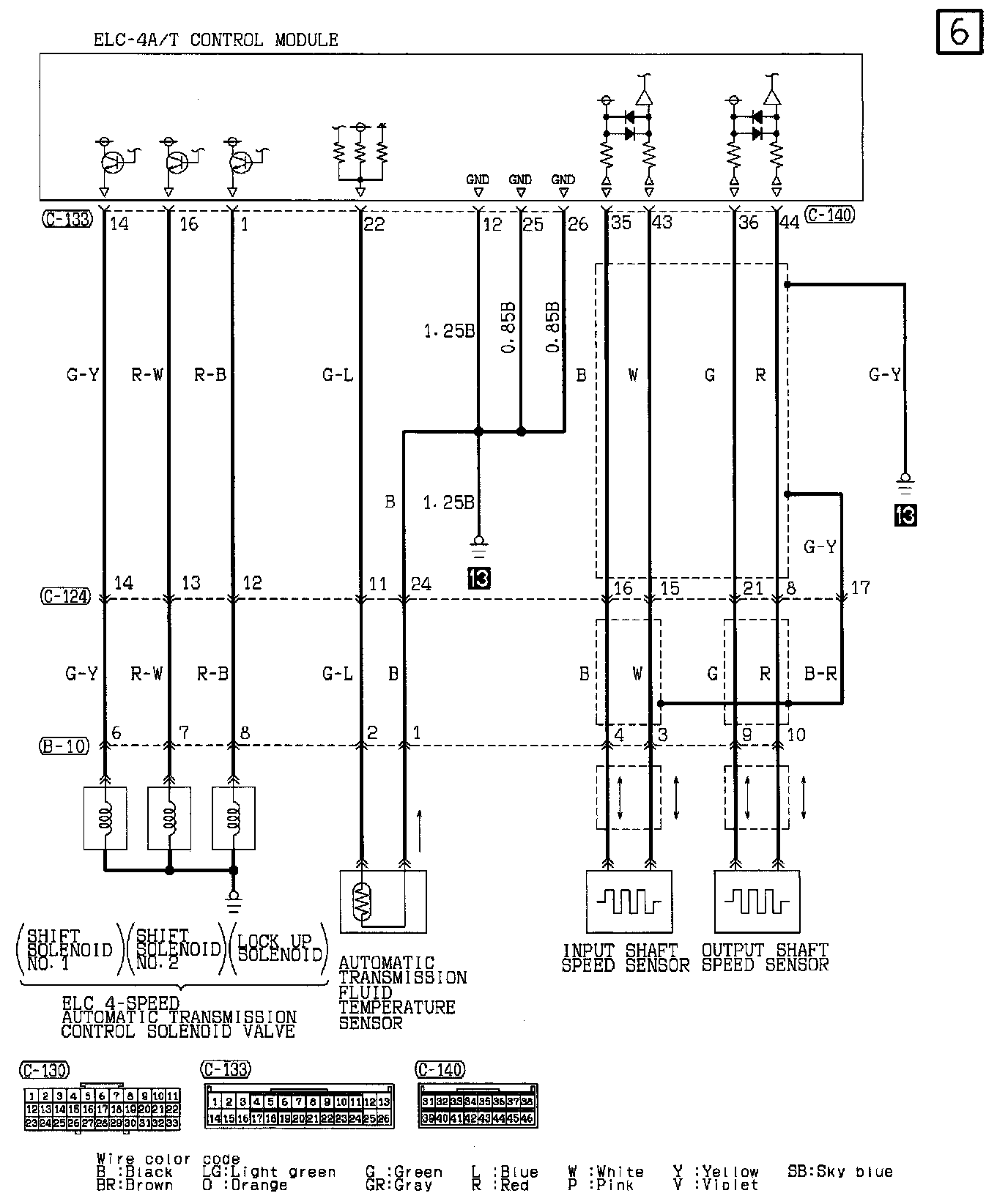

ELC-4 A/T Control Module
Input/Output Shaft Speed Sensor
Shift Solenoid No. 1 (ELC 4-Speed Automatic Control Solenoid Valve)
Shift Solenoid No. 2 (ELC 4-Speed Automatic Control Solenoid Valve)
Shift Solenoid No. 3 (ELC 4-Speed Automatic Control Solenoid Valve)




Data Link Connector

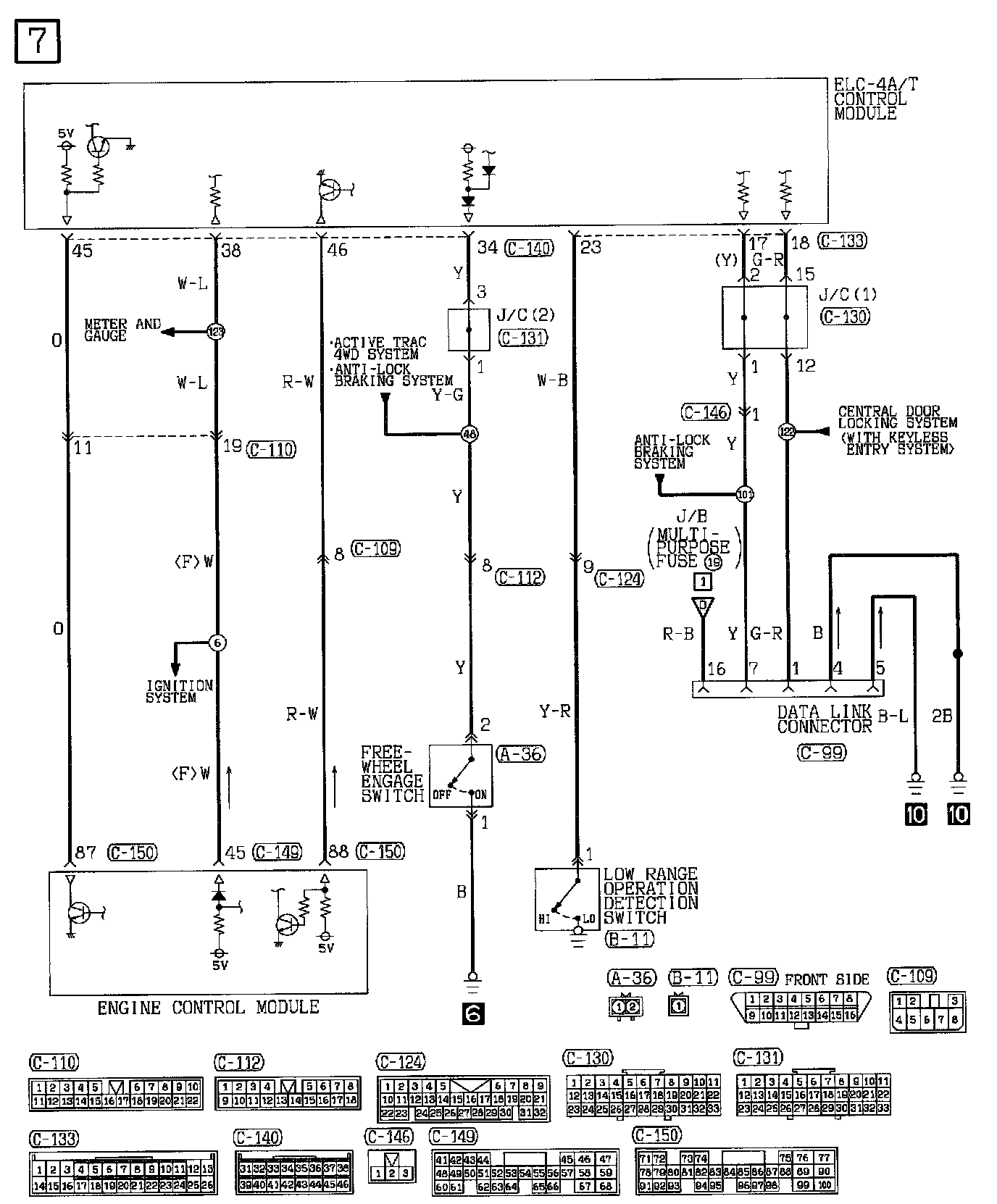

ELC-4 A/T Control Module
Engine Control Module
Free Wheel Engage Switch
J/C (1,2)
Low Range Operation Detection Switch
