Component Tests and General Diagnostics

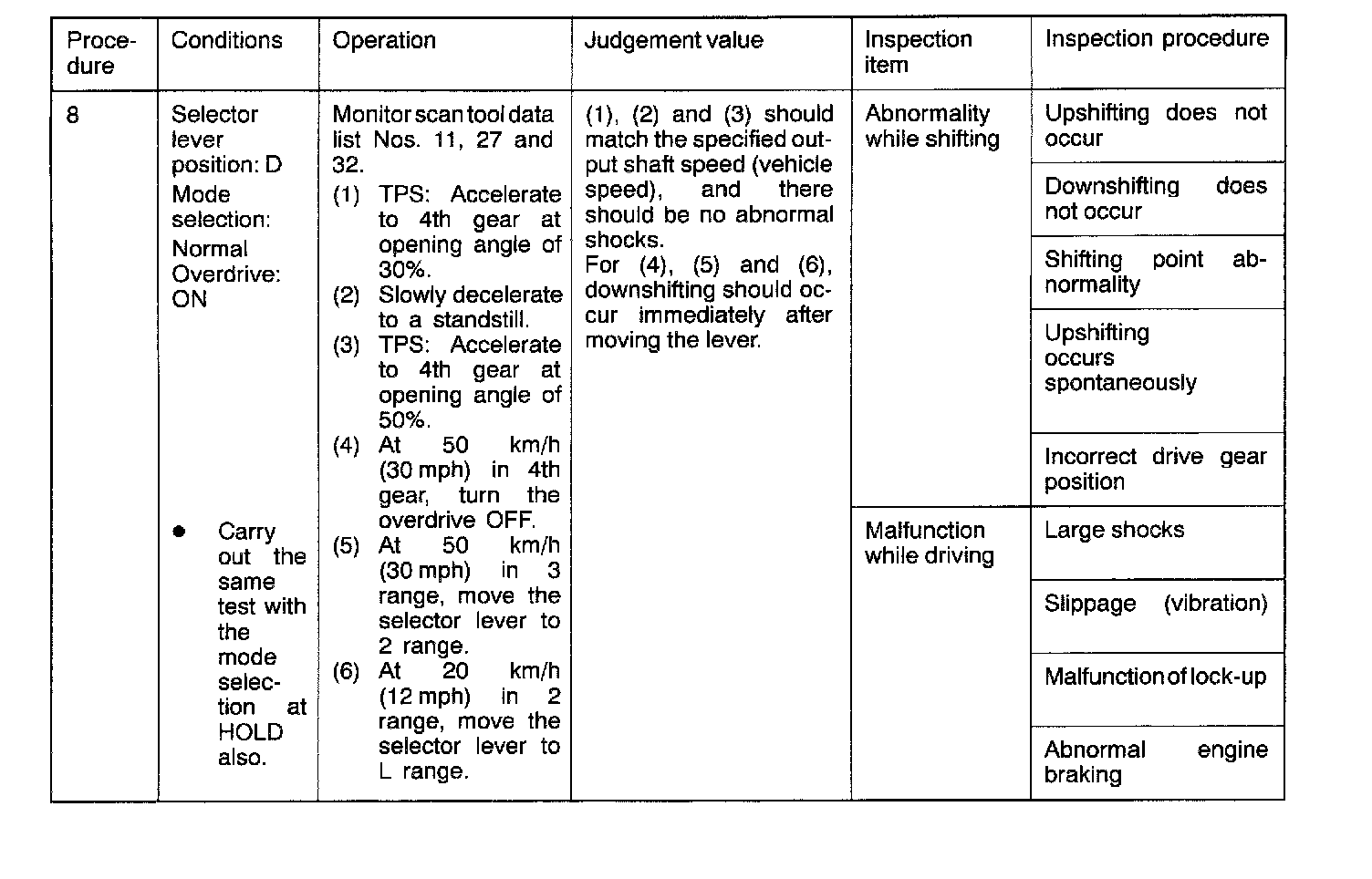

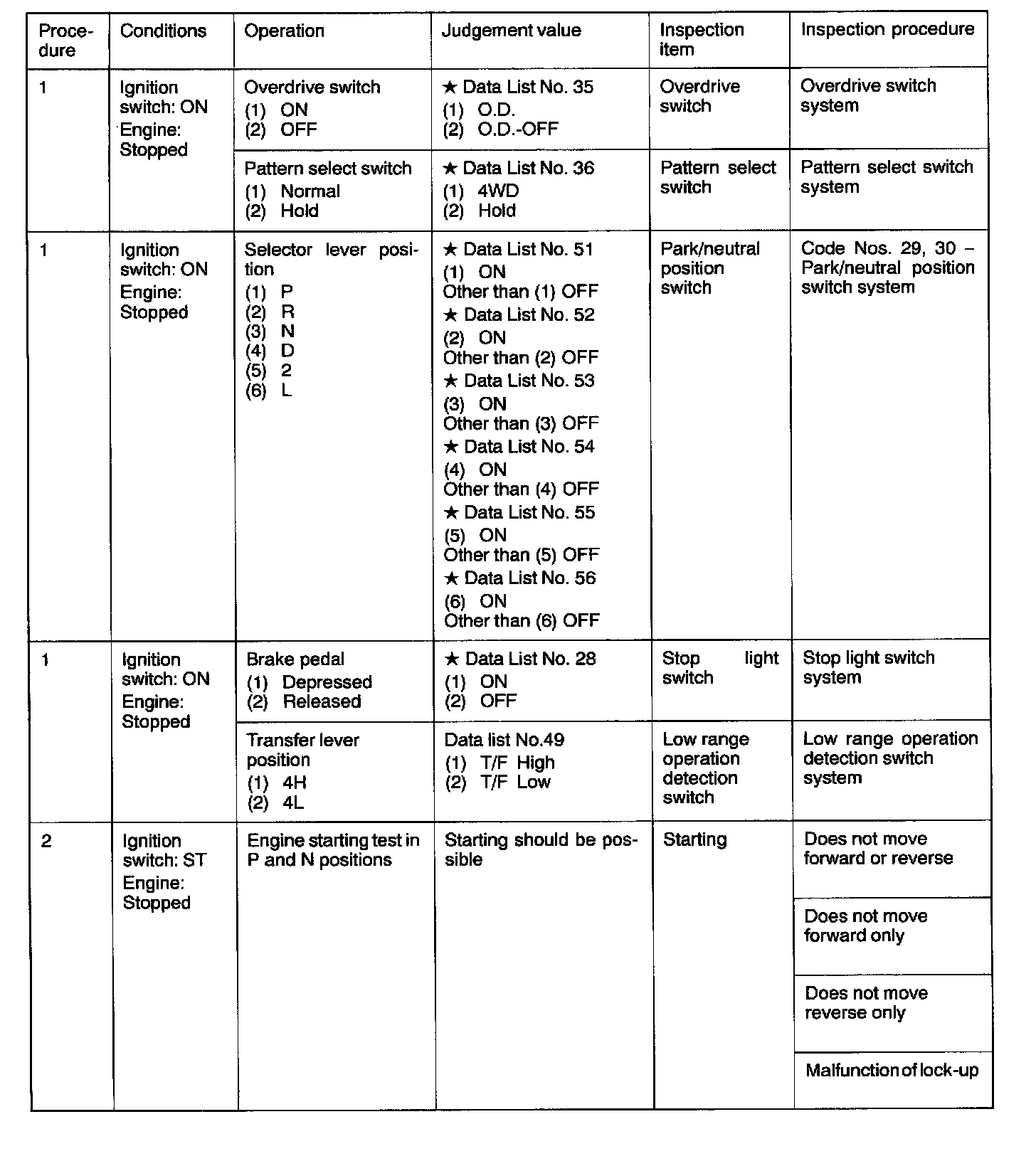

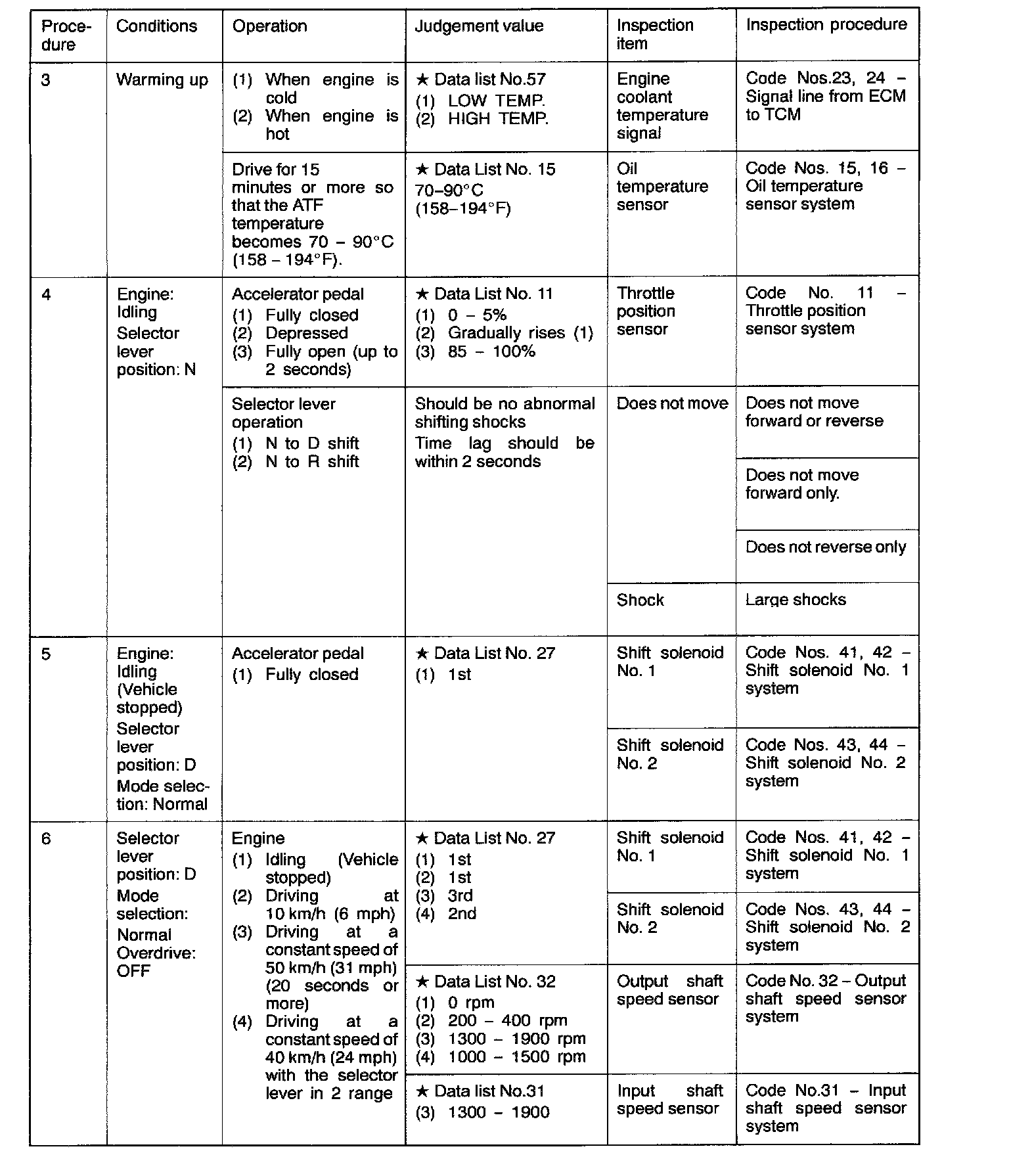

ROAD TEST (Transfer Lever Position: 4H Range)





Part 1 of 4





Part 2 of 4





Part 3 of 4





Part 4 of 4
