Power Window Relay: Testing and Inspection
POWER WINDOW RELAY

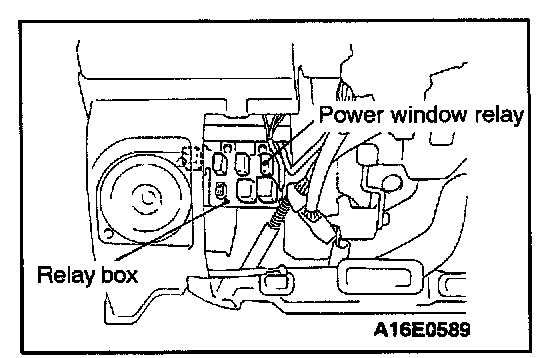

1.
Remove the
power window relay
from the
relay box
.
2.

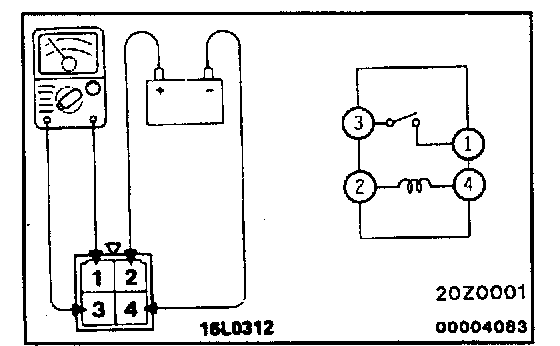

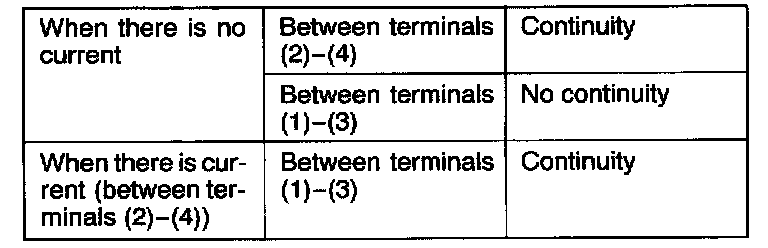

Check for continuity between the terminals.
