Keyless Entry Module: Testing and Inspection

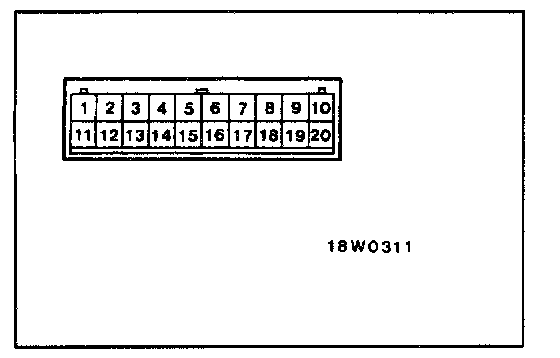

Connector View:

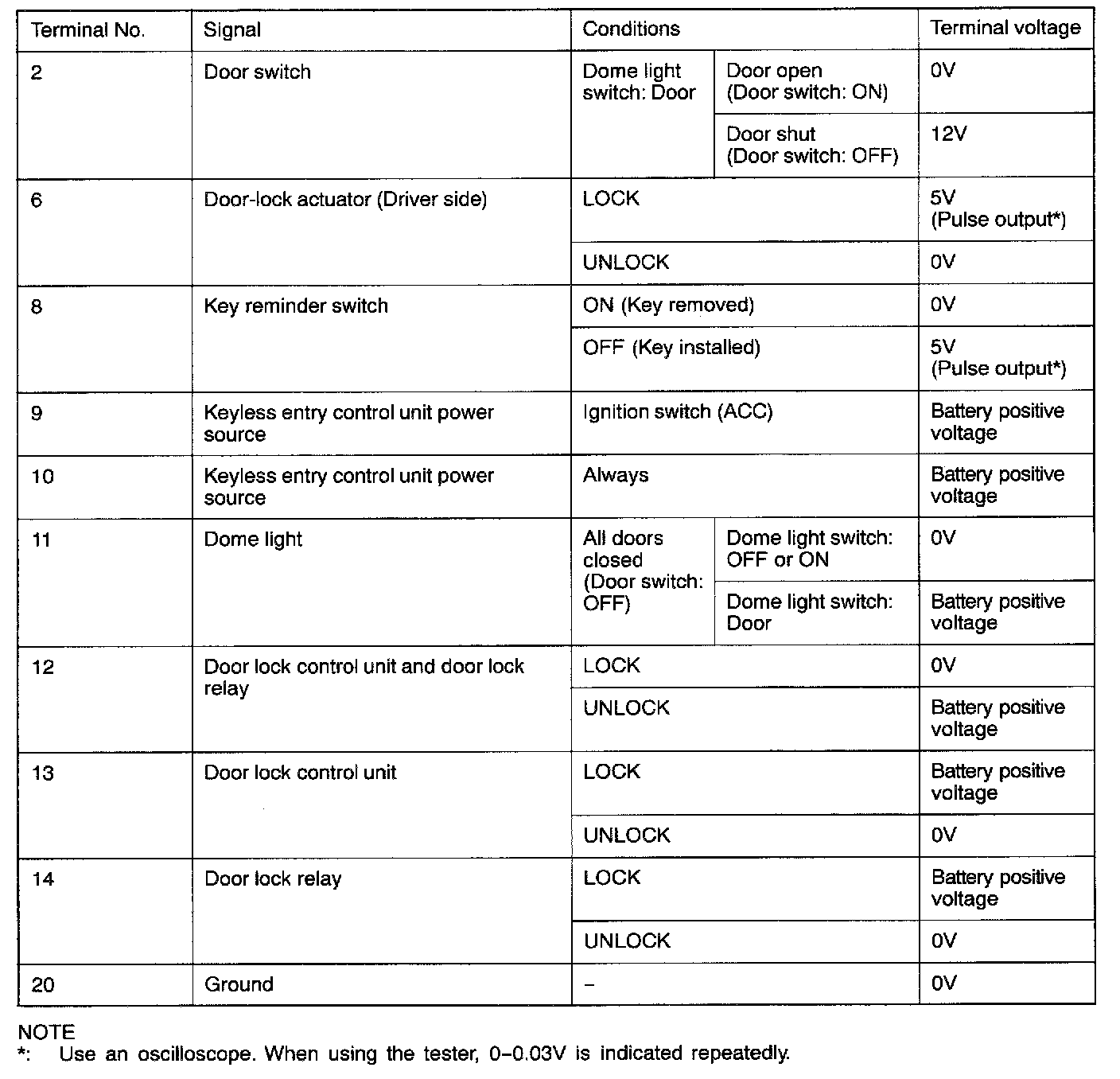

Terminals 2 - 20:

KEYLESS ENTRY CONTROL UNIT INSPECTION
1. Remove the combination meter.
2. Disconnect the amplifier and inspect the connector on the wire harness side as shown in the chart.
