Cruise Control Servo: Testing and Inspection
Actuator Check 1.
Remove the actuator.
2.

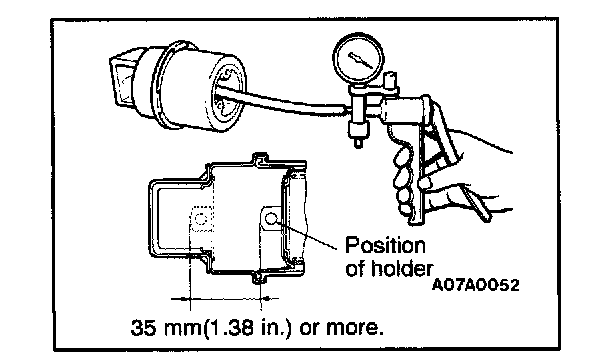

Apply negative pressure to the actuator with the vacuum pump and check that the holder moves more than
35 mm (1.38 in.). In addition, check that there is no change in the position of the holder when negative pressure is maintained in that condition.
3.
First install the actuator, and then inspect and adjust the cruise control cable.
