Engine Assembly Replacement

ENGINE REPLACEMENT W/ RELATED COMPONENTS

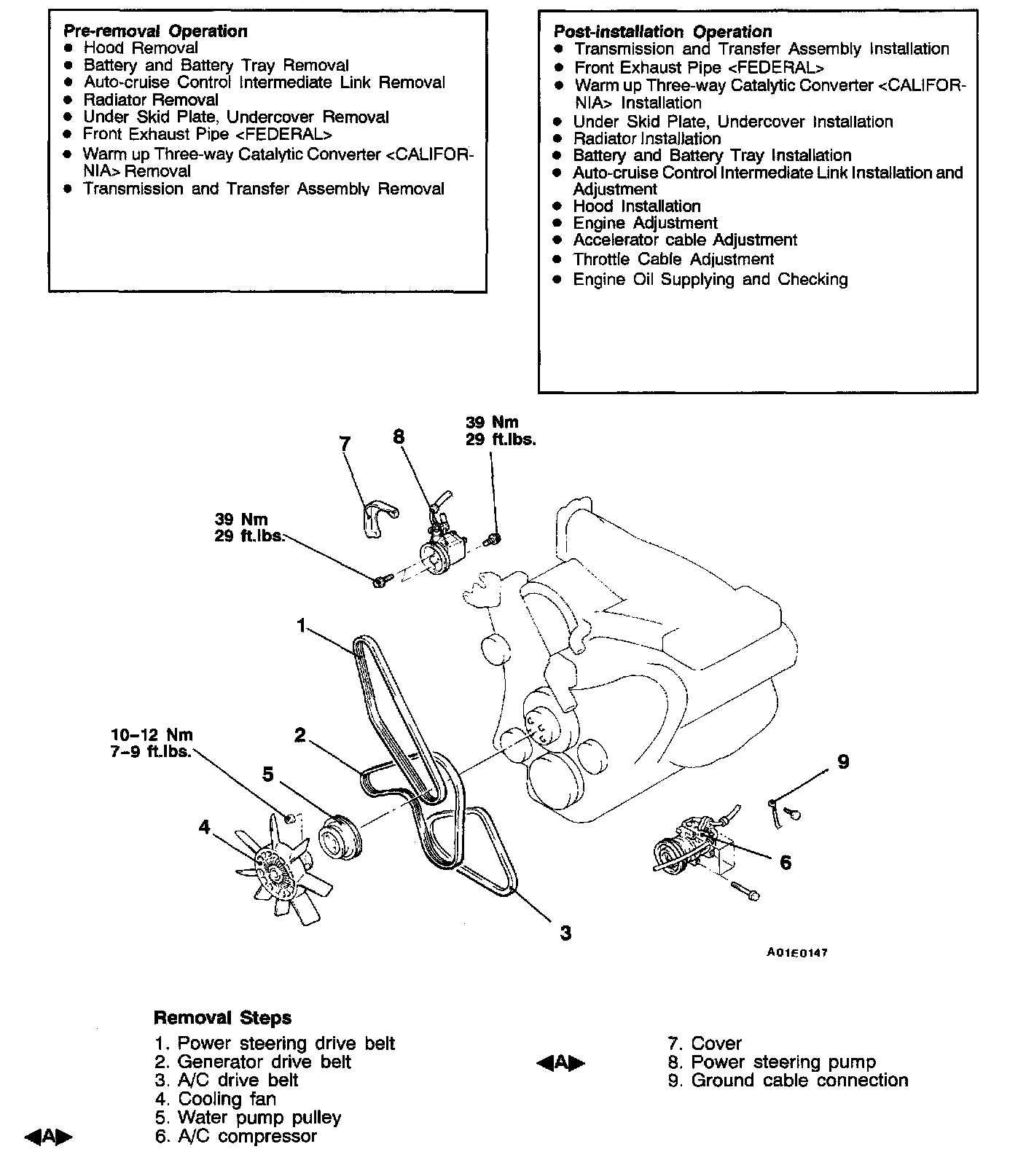

Part 1 Of 2:





P/S Pump, A/C Compressor, and Belts

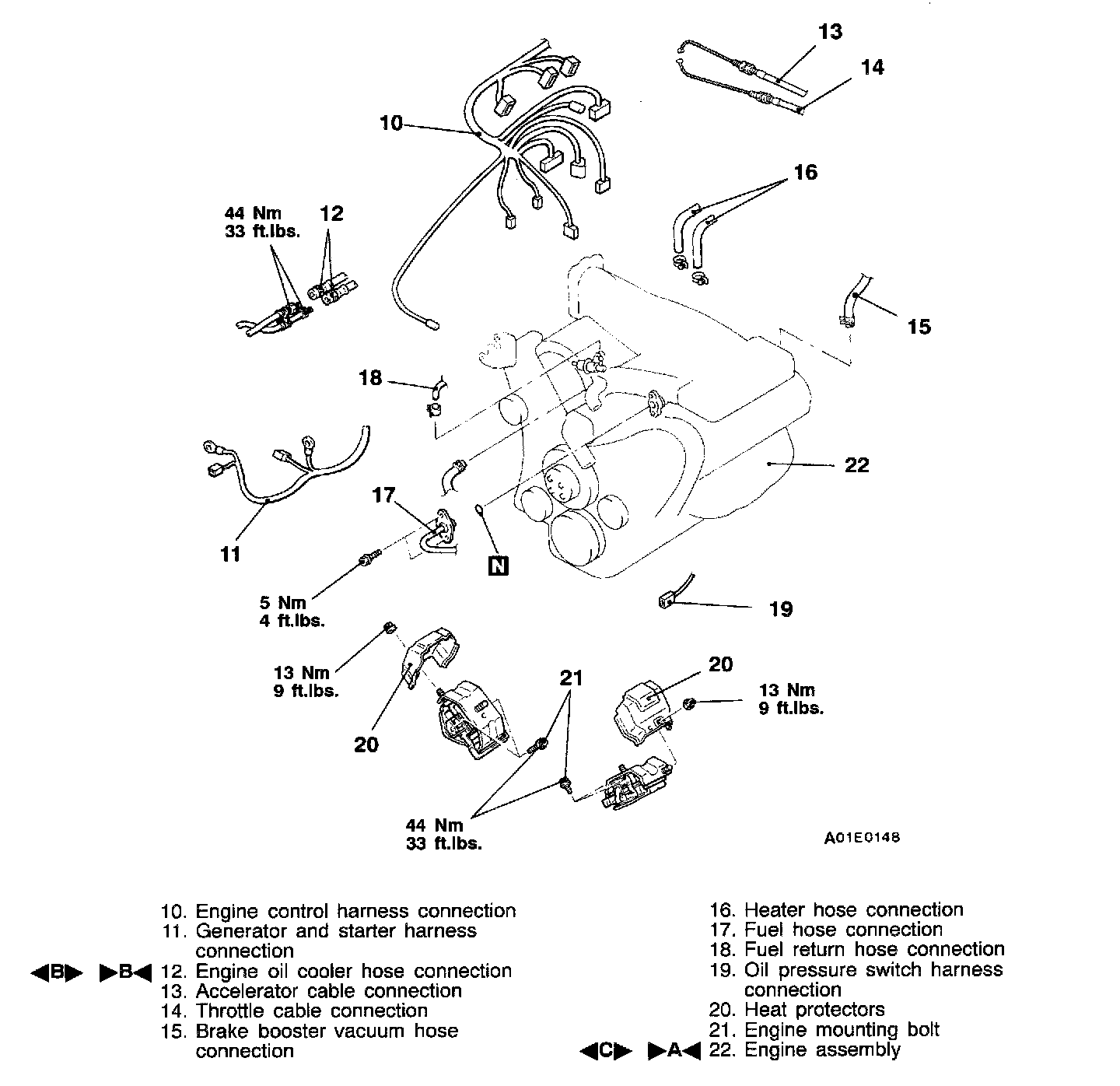

Part 2 Of 2:





Wires, Hoses and Mount
