Flow of Diagnosis

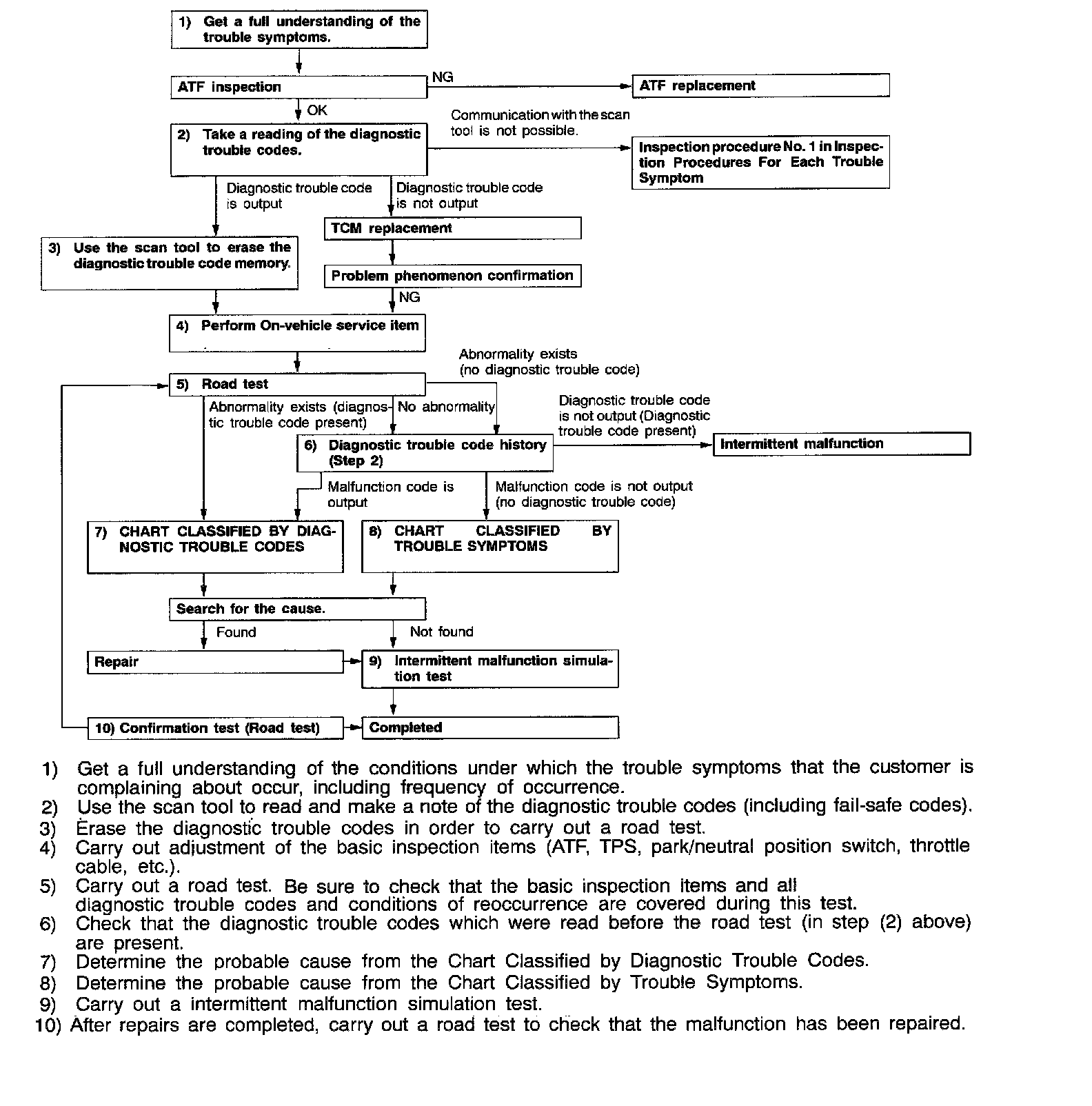

STANDARD FLOW OF DIAGNOSTIC TROUBLESHOOTING





Malfunctions of the 4 A/T system can be caused by malfunctions or incorrect adjustments of the electronic control system, hydraulic control system or A/T system or a combination of these. Carry out troubleshooting by the procedure in order to make effective diagnoses.
