With Auto-Cruise Control Indicator Light




Using a Auto-cruise Control Indicator Light

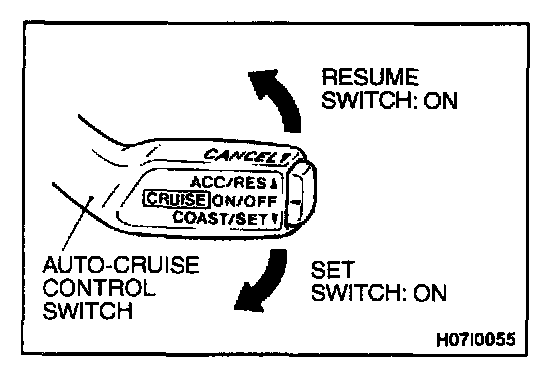

1. Turn the ignition switch "ON" with the "SET" switch ON.
Then, turn the "RESUME" switch ON within one second.
2. Read a diagnostic trouble code by observing the flash display pattern of the auto-cruise control indicator light in the combination meter.

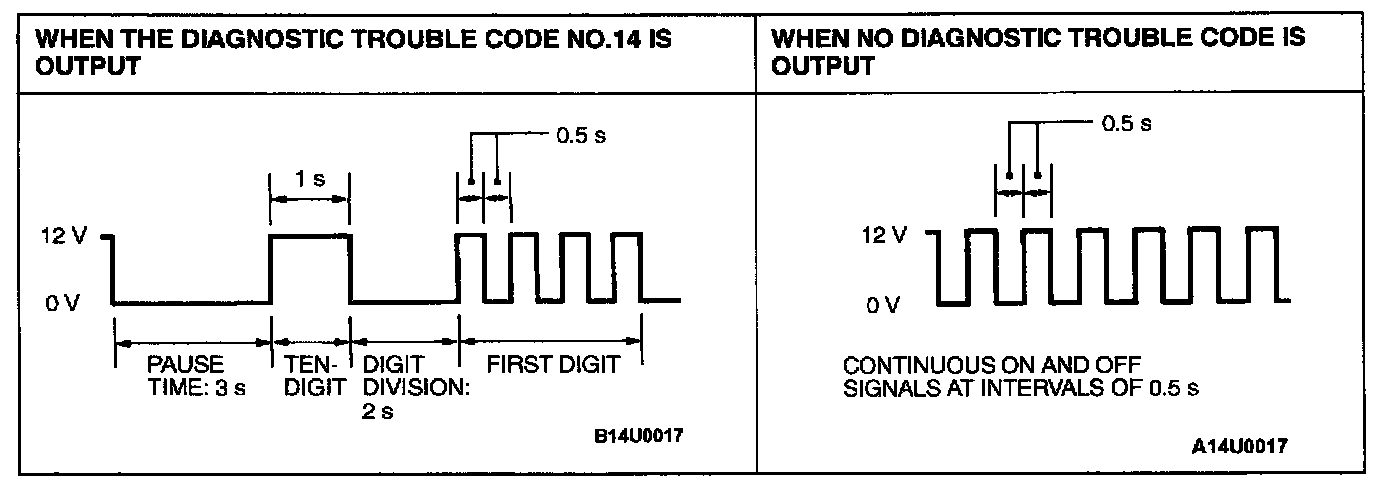

DIAGNOSTIC RESULT DISPLAY METHOD WHEN USING THE AUTO-CRUISE CONTROL INDICATOR LIGHT

NOTE: Other on-board diagnostic items are also output as voltage wave forms corresponding to diagnostic trouble code numbers.
