Front Hub

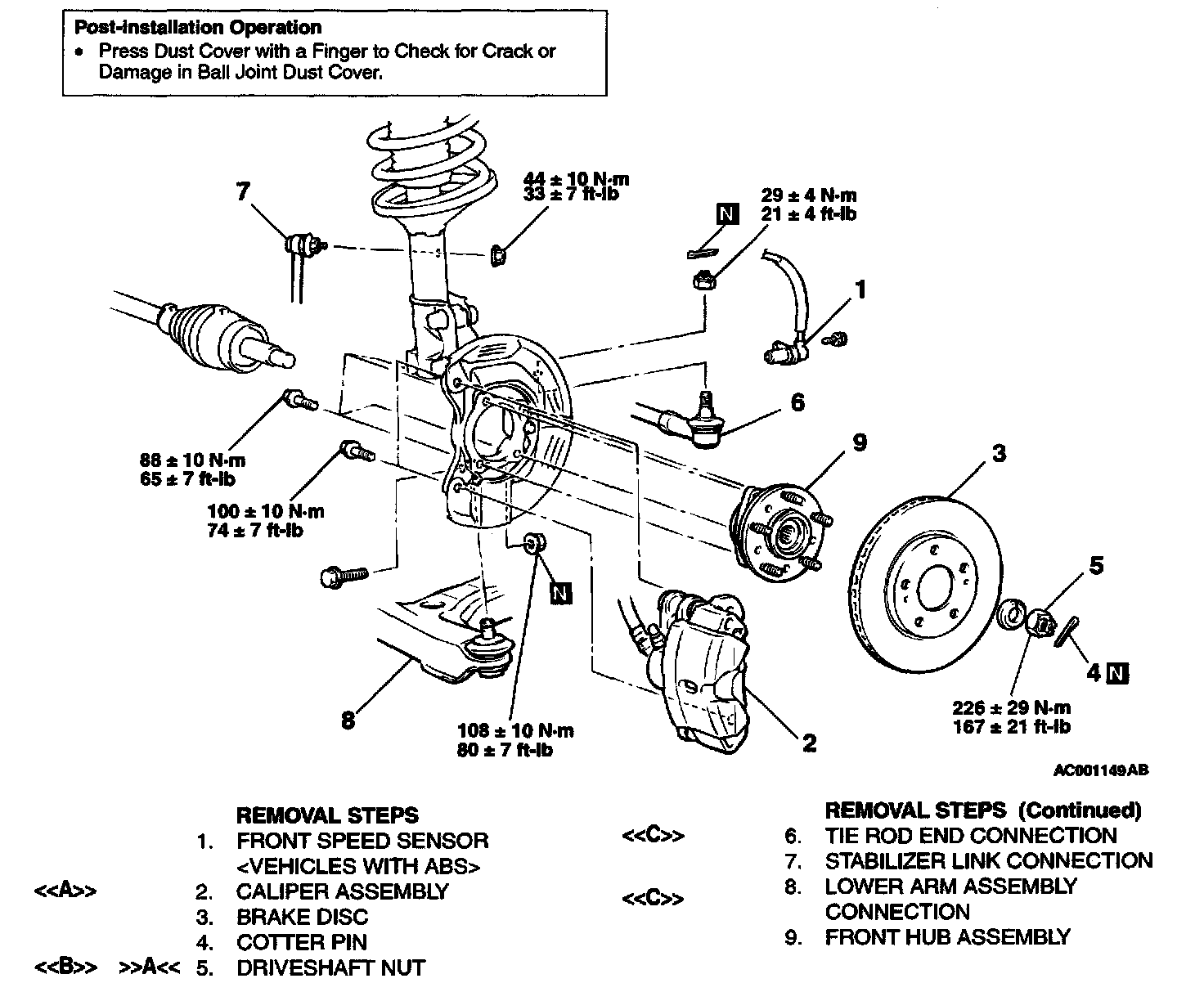

FRONT AXLE HUB ASSEMBLY REPLACEMENT W/ RELATED COMPONENTS





Part 1 of 2





Part 2 of 2
