Home >> Mitsubishi >> 2001 >> Eclipse GT V6-3.0L SOHC >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor Clutch Relay >> Testing and Inspection

Compressor Clutch Relay: Testing and Inspection

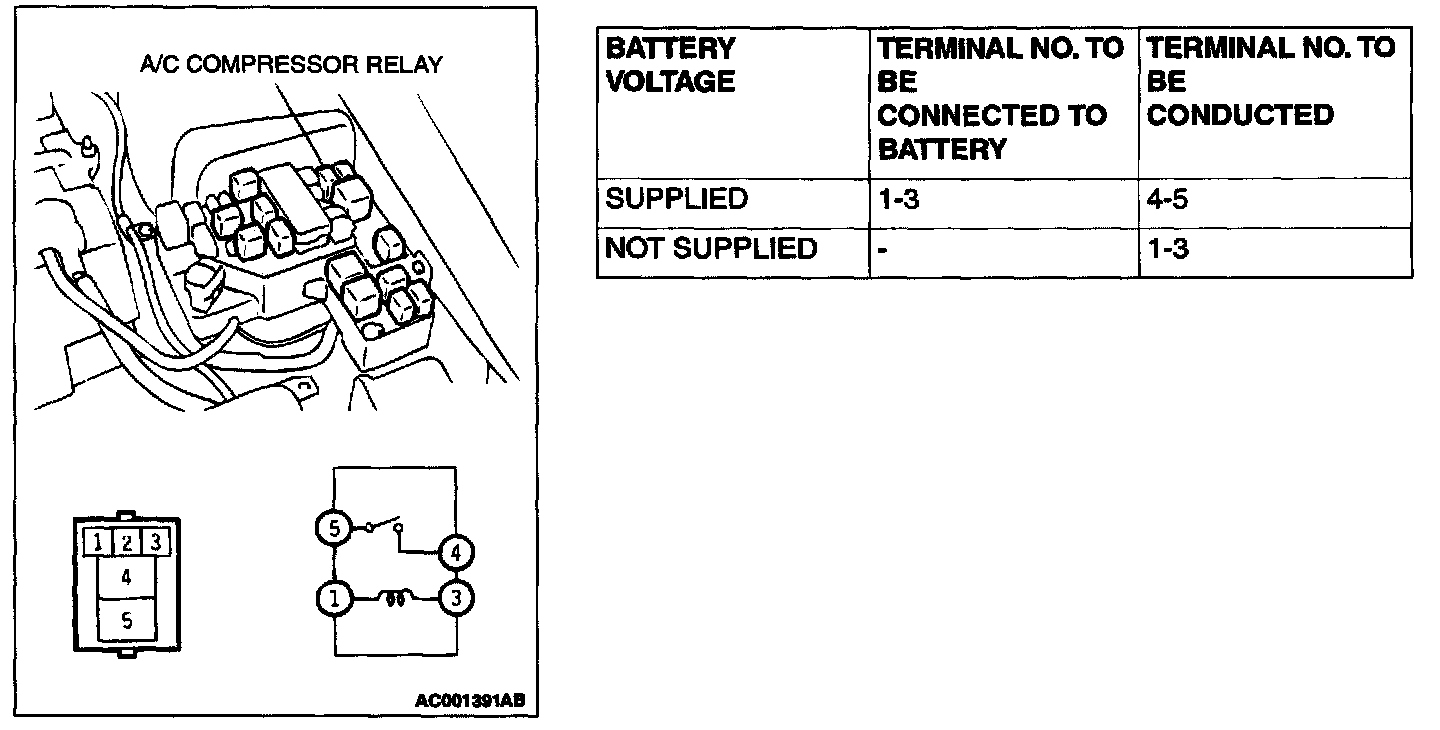

Power Relay Check - A/C Compressor Relay:
