A Connectors - Engine Compartment
A Connectors - Engine Compartment
Engine Compartment - A Connector (01 (4-B) Thru 22 (2-B)):

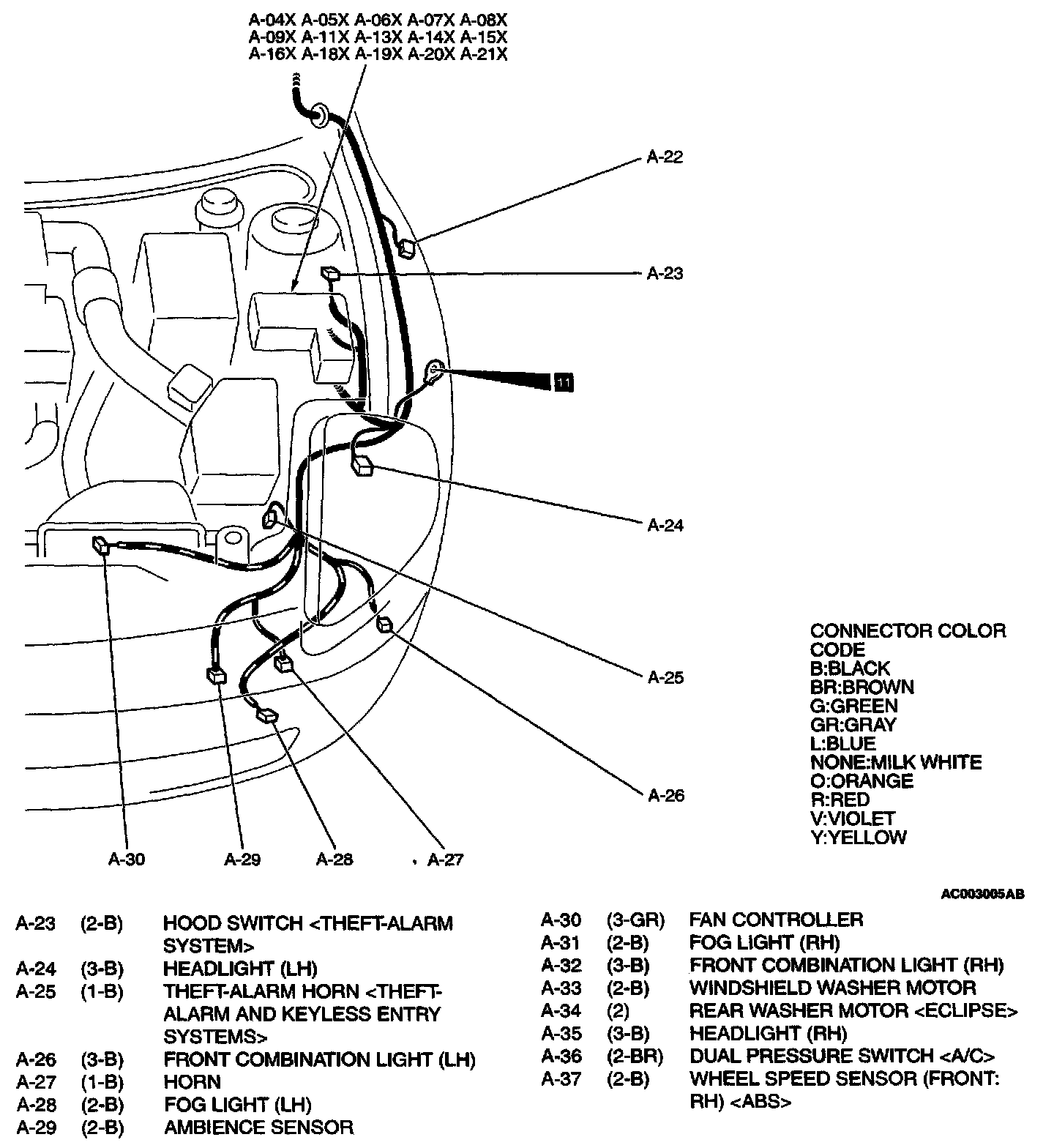

Engine Compartment - A Connector (23 (2-B) Thru 37 (2-B)):
