EATCS-ECU

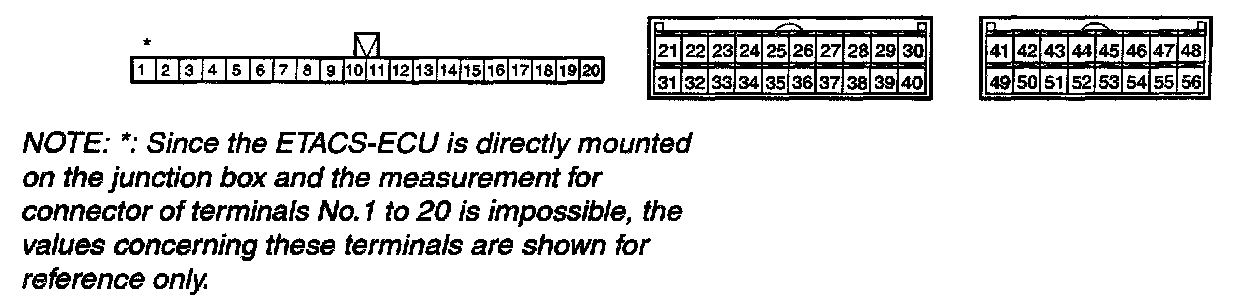

ETACS-ECU Terminal Check - Connector Views:

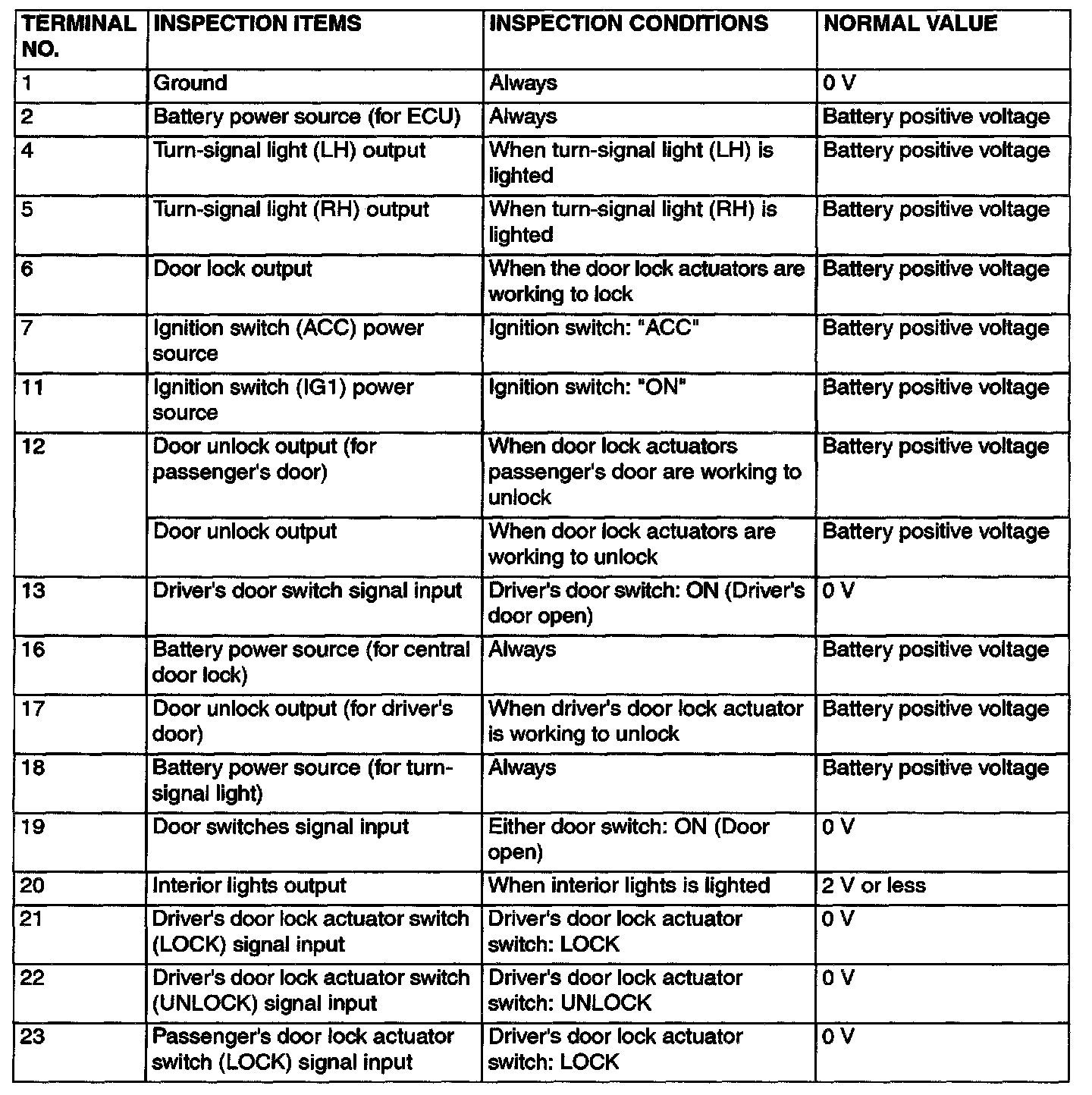

ETACS-ECU Terminal Check - Pinouts Part 1:

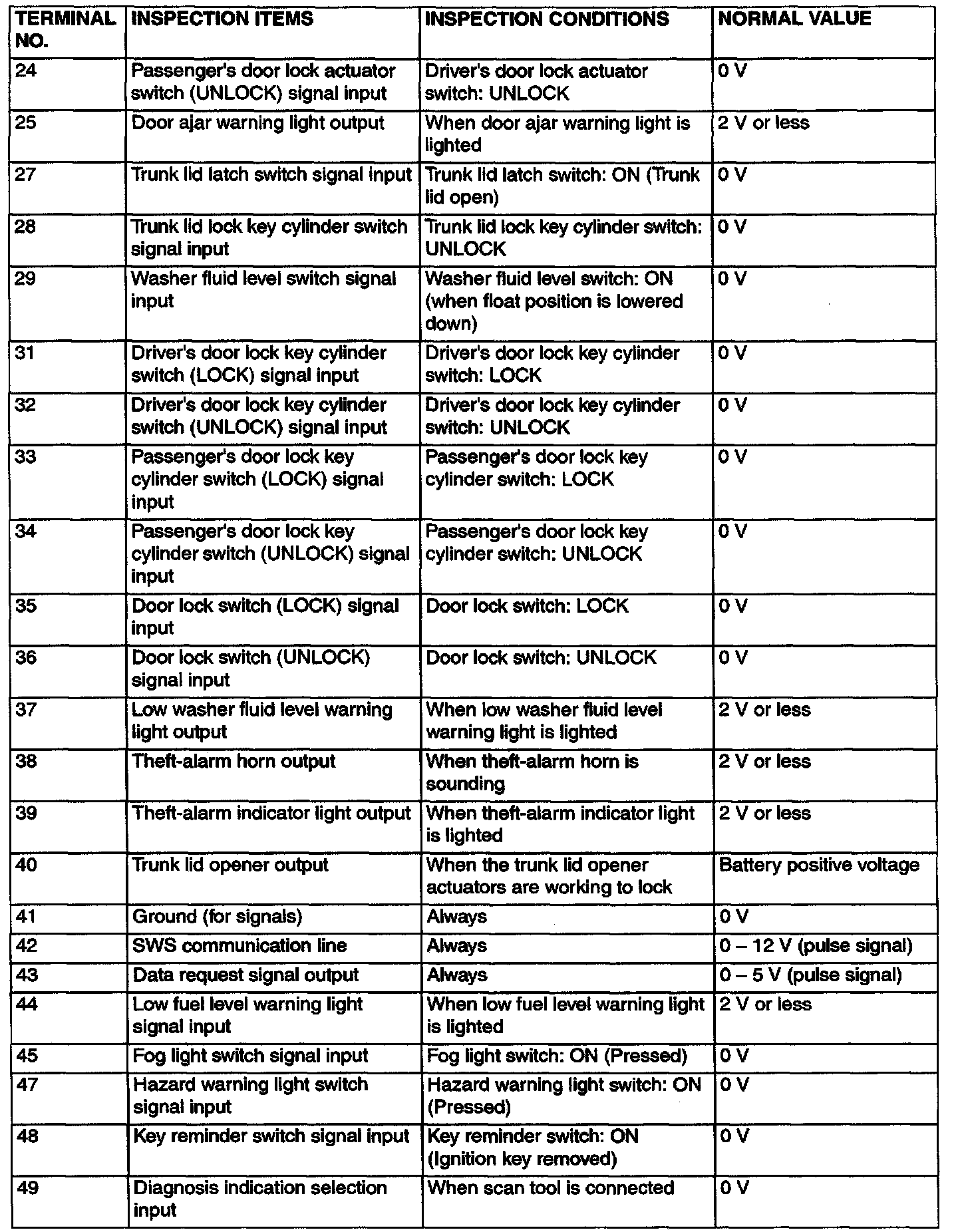

Part 2:



Part 3:
