Exhaust Gas Recirculation: Diagrams

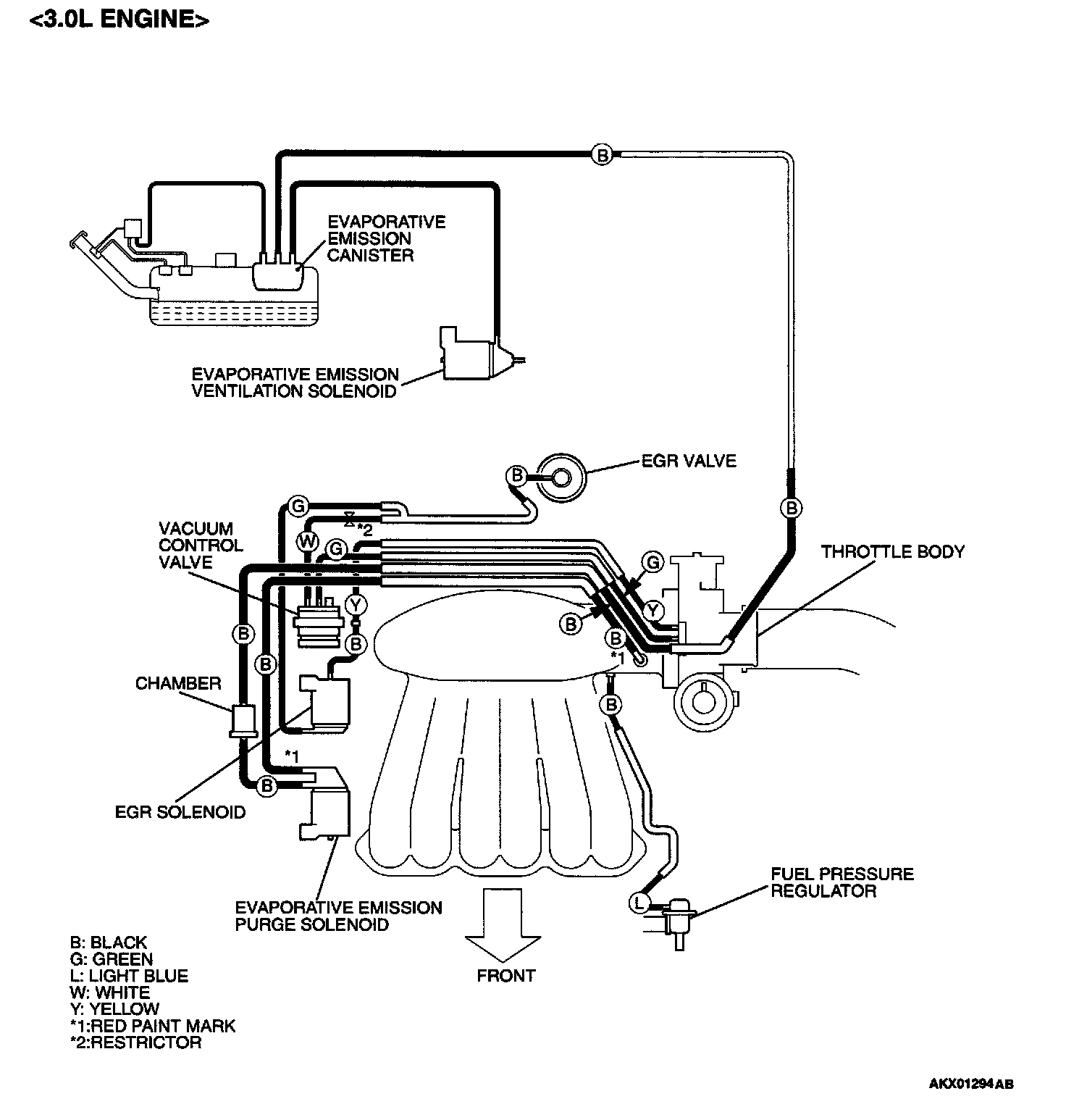

Vacuum Hose Routing - 3.0L:

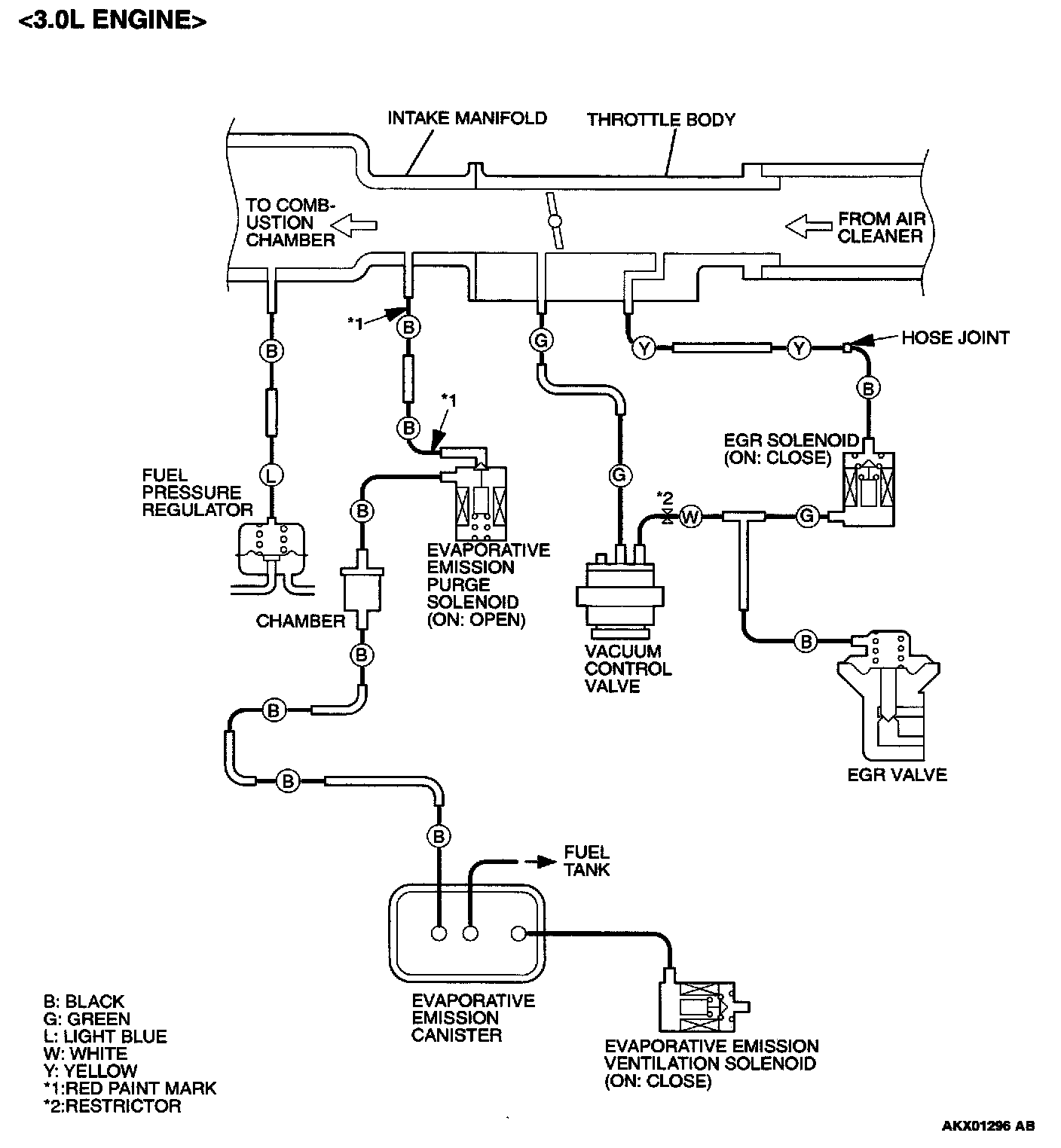

Vacuum Circuit Diagram (3.0L Engine):
