Lower and Toe Control Arm

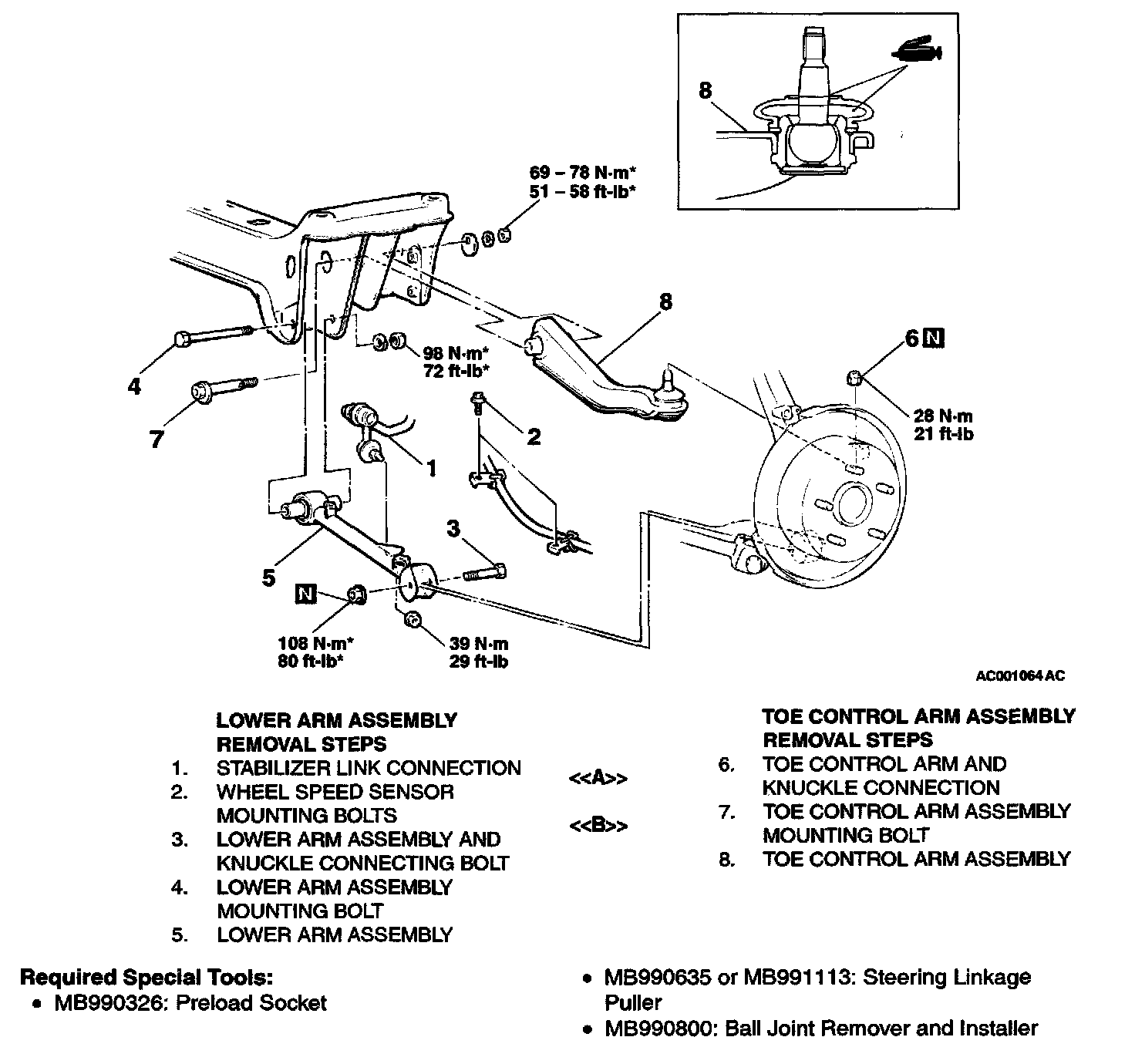

LOWER ARM AND TOE CONTROL ARM ASSEMBLY REPLACEMENT W/ RELATED COMPONENTS





Part 1 of 2

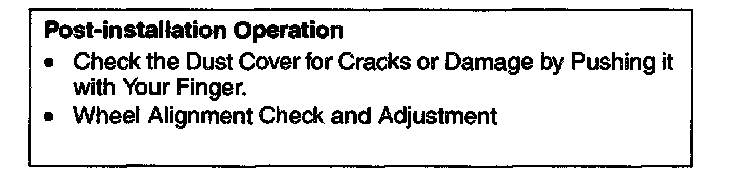

Part 2 of 2
