Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2001
>>
Mirage Coupe LS L4-1834cc 1.8L SOHC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Fuse and Fusible Links
>>
Multi-Purpose Fuse (In Junction Block)
Multi-Purpose Fuse (In Junction Block)

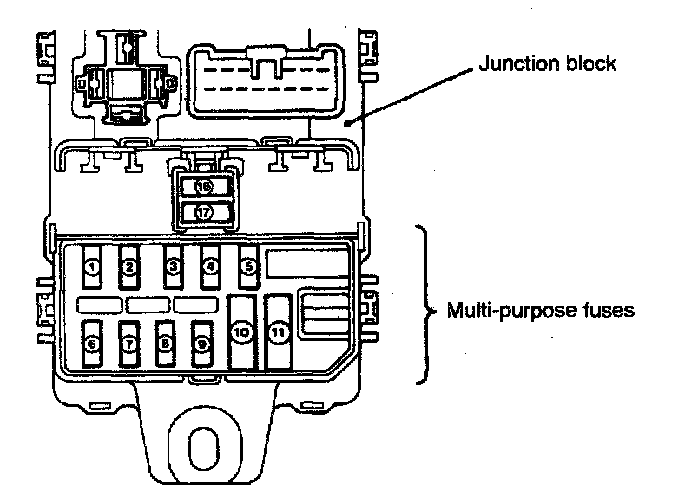

Multi-Purpose Fuse (In Junction Block) Location Index:

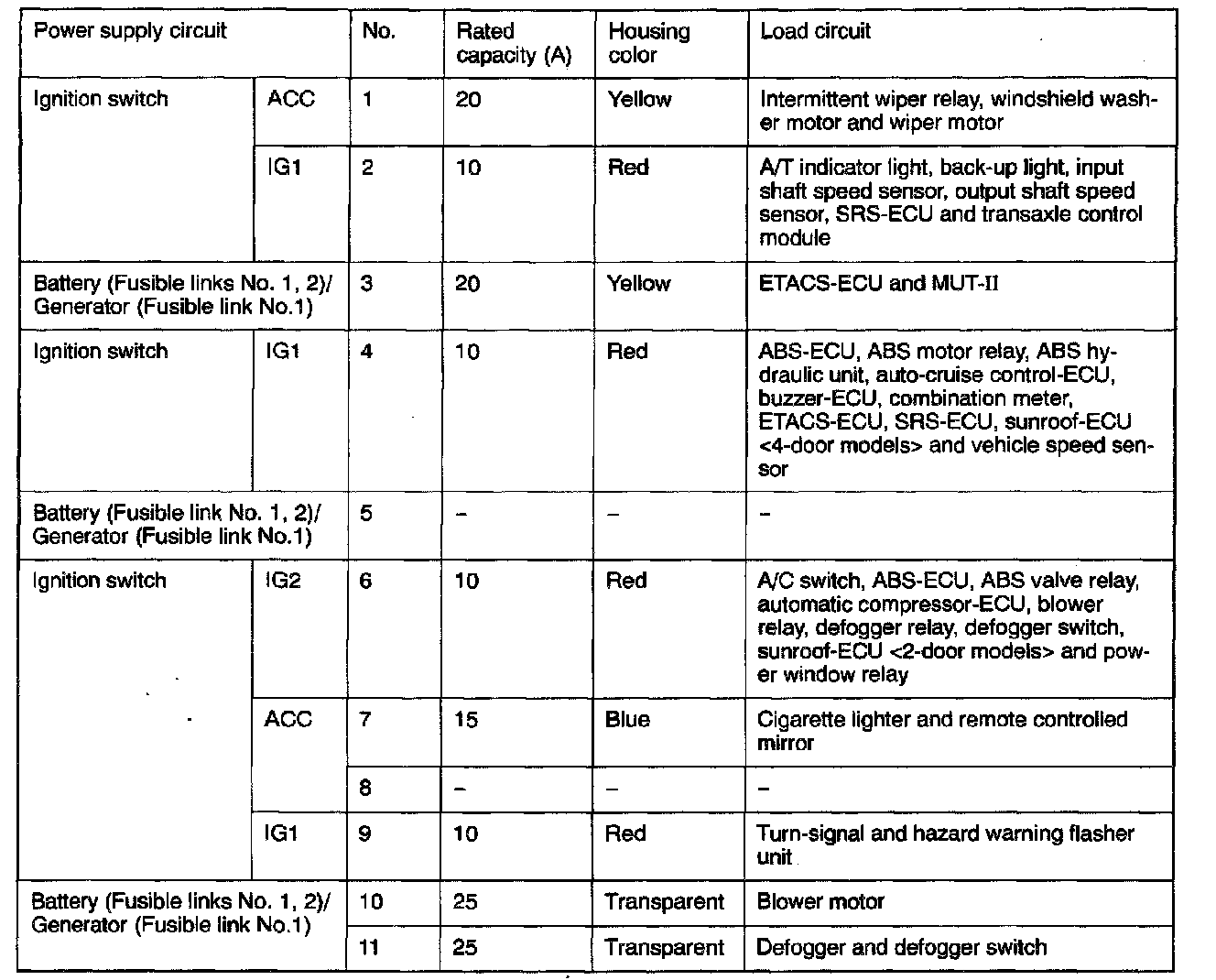

Multi-Purpose Fuse (In Junction Block):
