Electrical Diagrams

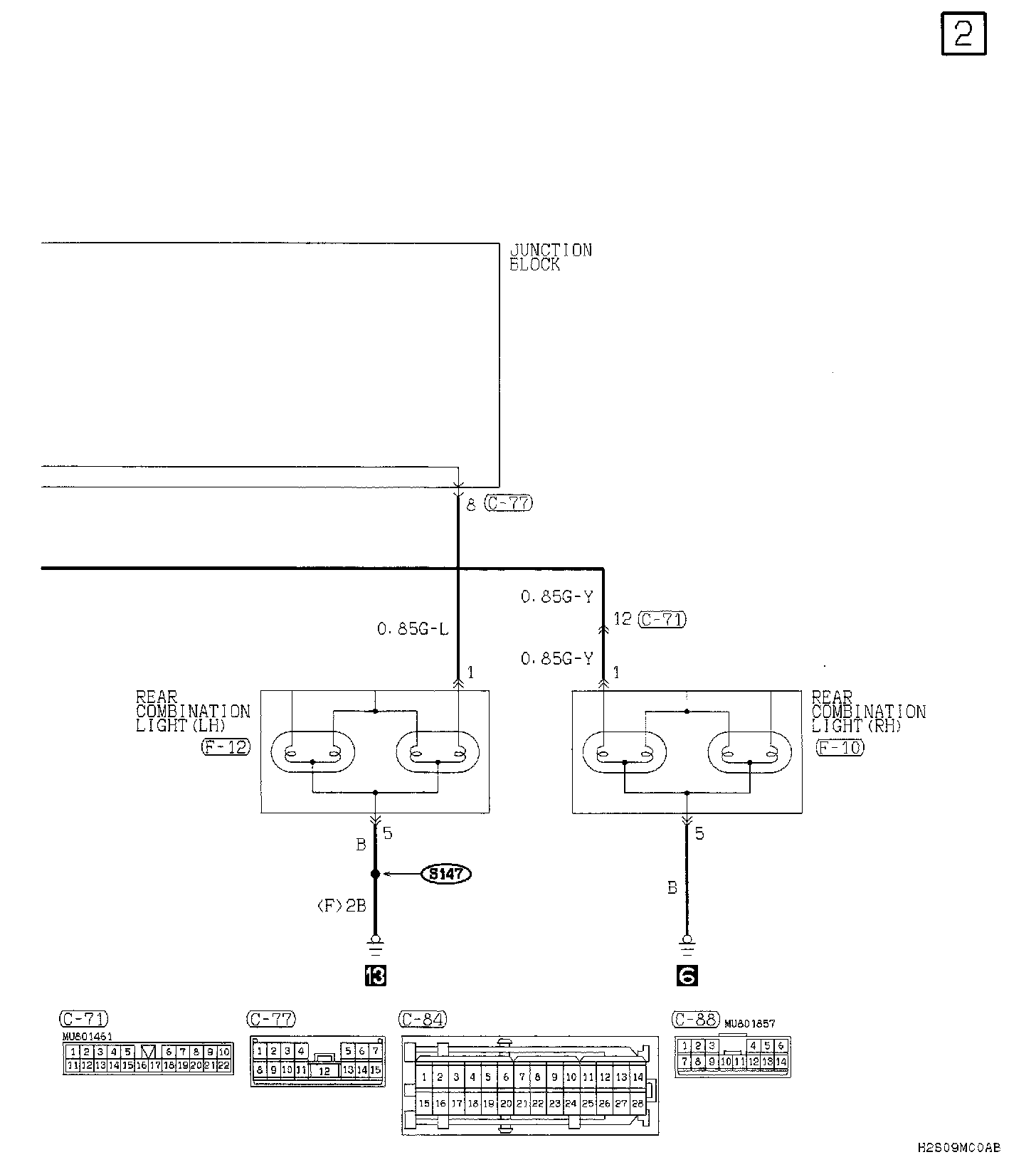

Turn-Signal & Hazard Warning Lights Part 1:



Part 2:



Part 3:



Part 4:



Part 5:
