Fuel System - Pump Relay Terminal/Diagram Revision

No: TSB-02-13-012
DATE: June, 2002
MODEL: 2002 Galant

SUBJECT:
CORRECTED FUEL PUMP RELAY TERMINAL NOS. (GALANT) - SERVICE MANUAL REVISION

PURPOSE
This bulletin Corrects fuel pump relay terminal numbers, revises fuel pump relay wiring diagrams, and adds important cautions.

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.

AFFECTED VEHICLES
2002 Galant

AFFECTED SERVICE MANUALS
2002 Galant Service Manual, Volume 1, Pages 13A-492, 494 through 497, 499, 500, 548, 549

2002 Galant Service Manual, Volume 2, Pages 13B-570, 572 through 575, 577, 578

2002 Galant Service Manual, Volume 4, Pages 90-10, 31, 41

SERVICE MANUAL REVISIONS





2002 Galant Service Manual, Volume 1, Page 13A-492
Delete the portion of the wiring diagram as shown and replace it with the new diagram shown.





2002 Galant Service Manual, Volume 1, Page 13A-492
Replace the portion of the wiring diagram deleted on the previous page with the new diagram shown.





2002 Galant Service Manual. Volume 1, Page 13A-494
Correct the fuel pump relay terminal numbers as shown.





2002 Galant Service Manual, Volume 1, Page 15A-495
Correct the fuel pump relay terminal numbers and illustrations and add the new caution statement as shown.





2002 Galant Service Manual, Volume 1, Page 13A-496
Correct the fuel pump relay terminal numbers and add the new caution statement as shown. Delete the indicate illustrations and replace them with the new illustrations shown.





2002 Galant Service Manual, Volume 1, Page 13A-496
Replace the illustrations deleted on the previous page with the new referenced illustrations shown.





2002 Galant Service Manual, Volume 1, Page 13A-497
Correct the fuel pump relay terminal numbers and add the new caution statement as shown. Delete the indicate illustrations and replace them with the new illustrations shown.





2002 Galant Service Manual, Volume 1, Page 13A-497
Replace the illustrations deleted on the previous page with the new referenced illustrations shown.





2002 Galant Service Manual. Volume 1, Page 13A-499
Correct the fuel pump relay terminal numbers as shown.





2002 Galant Service Manual. Volume 1, Page 13A-500
Correct the fuel pump relay terminal numbers as shown.

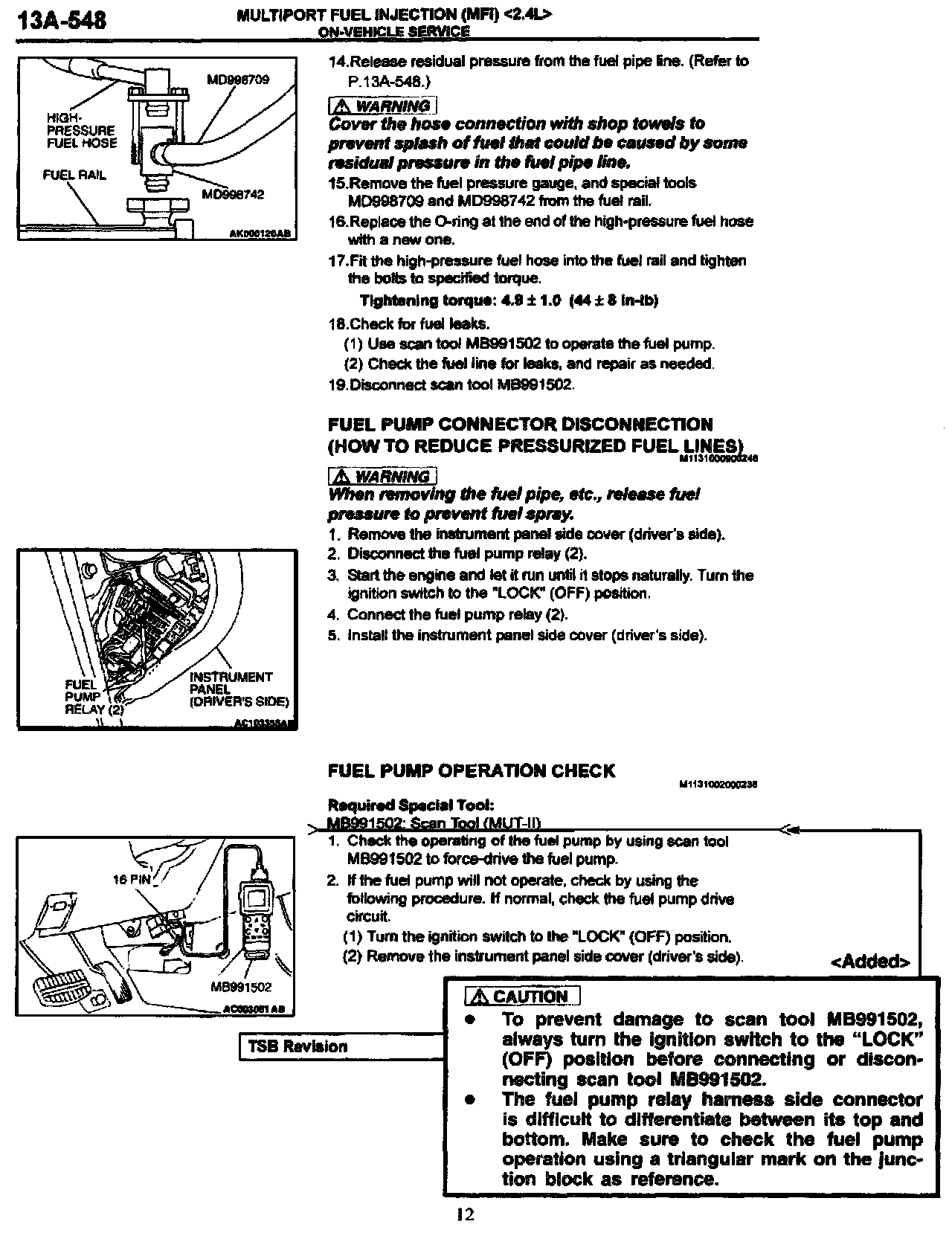

2002 Galant Service Manual Volume 1, Page 13A-548
Add the new caution statement as shown.





2002 Galant Service Manual, Volume 1, Page 13A-549
Correct the fuel pump relay terminal number and illustration as shown.





2002 Galant Service Manual, Volume 2, Page 13B-570
Delete the portion of the wiring diagram as shown and replace it with the new diagram shown.





2002 Galant Service Manual, Volume 2, Page 13B-570
Replace the portion of the wiring diagram deleted on the previous page with the new diagram shown.





2002 Galant Service Manual, Volume 2, Page 13B-572
Correct the fuel pump relay terminal numbers as shown.





2002 Galant Service Manual, Volume 2, Page 13B-573
Correct the fuel pump relay terminal numbers and illustrations and add the new caution statement as shown.





2002 Galant Service Manual, Volume 2, Page 13B-574
Correct the fuel pump relay terminal numbers and add the new caution statement as shown. Delete the indicate illustrations and replace them with the new illustrations shown.





2002 Galant Service Manual, Volume 2, Page 13B-574
Replace the illustrations deleted on the previous page with the new referenced illustrations shown.





2002 Galant Service Manual, Volume 2, Page 13B-575
Correct the fuel pump relay terminal numbers and add the new caution statement as shown. Delete the indicate illustrations and replace them with the new illustrations shown.





2002 Galant Service Manual, Volume 2, Page 13B-575
Replace the illustrations deleted on the previous page with the new referenced illustrations shown.





2002 Galant Service Manual, Volume 2, page 13B-577
Correct the fuel pump relay terminal number as shown.





2002 Galant Service Manual, Volume 2, page 13B-578
Correct the fuel pump relay terminal number as shown.





2002 Galant Service Manual, Volume 4, Page 90-10
Correct the fuel pump relay portion of the wiring diagram as shown.





2002 Galant Service Manual, Volume 4, Page 90-31
Correct the fuel pump relay portion of the wiring diagram as shown.





2002 Galant Service Manual, Volume 4, Page 90-41
Correct the fuel pump relay portion of the wiring diagram as shown.
