Alignment: Testing and Inspection

STEERING ANGLE CHECK

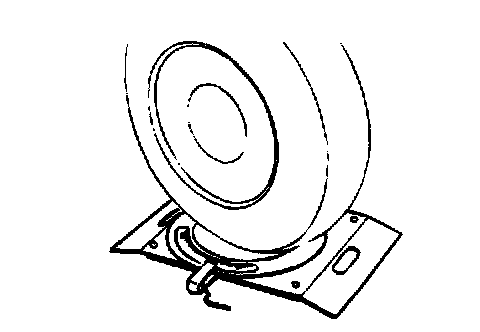

1. Place the front wheel on a turning radius gauge and measure the steering angle.

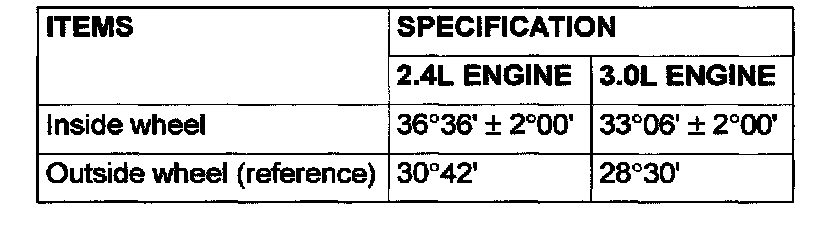

Standard value:

2. If the steering angle is not within the standard value, adjust the toe-in.
Standard value: 0 ± 3 mm (0 ± 0.12 inch)

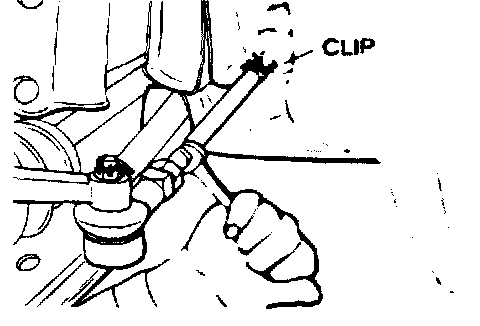

3. Adjust the toe-in by undoing the clip and turning the left and right tie rod turnbuckles by the same amount (in opposite directions).

NOTE: The toe will move out as the left turnbuckle is turned toward the front of the vehicle and the right turnbuckle is turned toward the rear of the vehicle.
