Oil Cooler, Engine

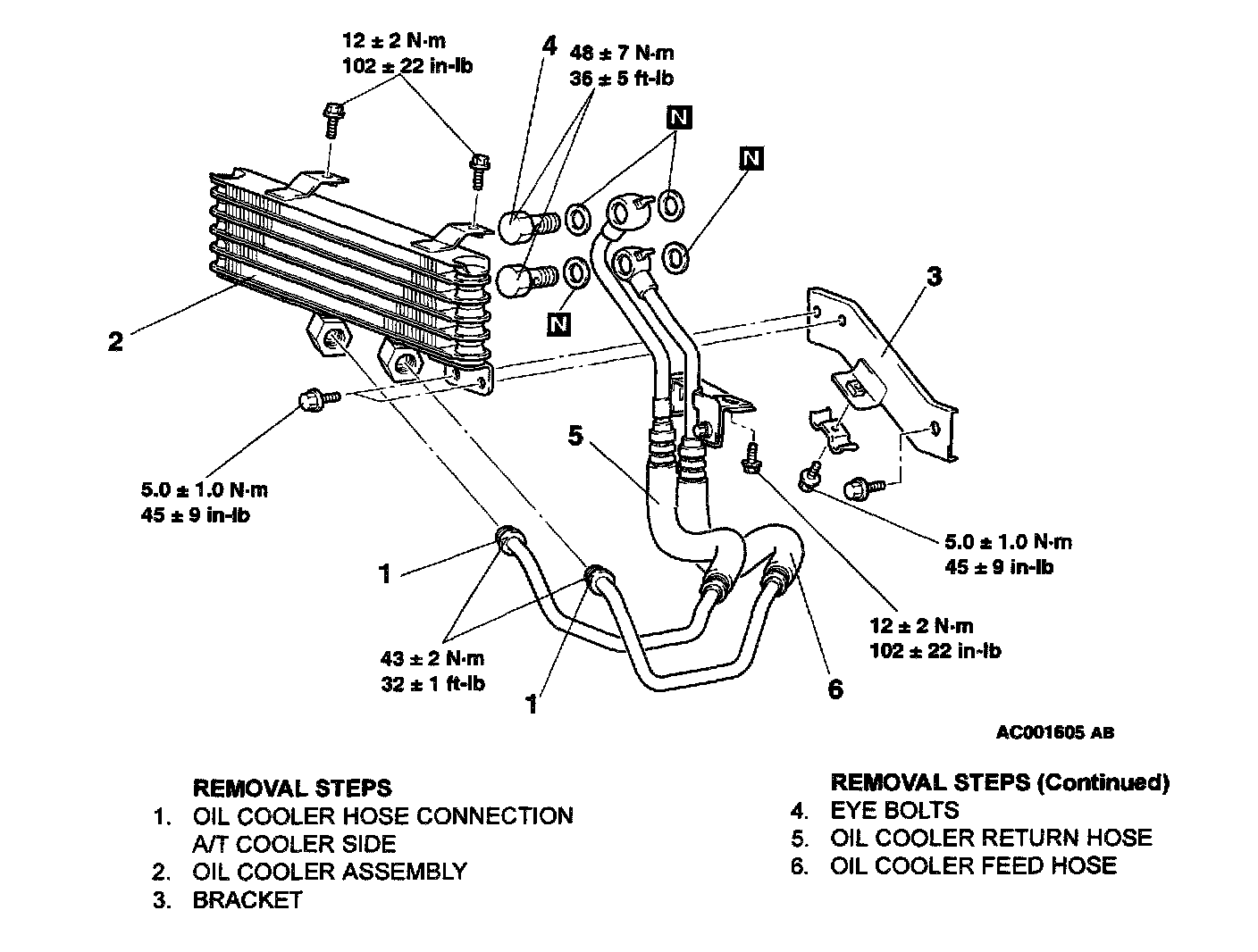

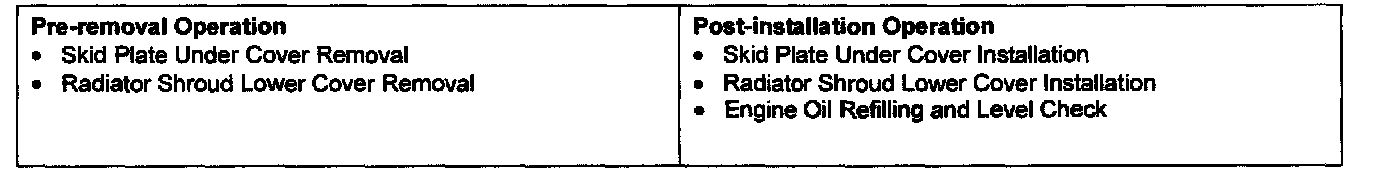

ENGINE OIL COOLER REPLACEMENT W/ RELATED COMPONENTS





Part 1 of 2





Part 2 of 2
