4WD Indicator - ECU

REMOVAL AND INSTALLATION

INSPECTION

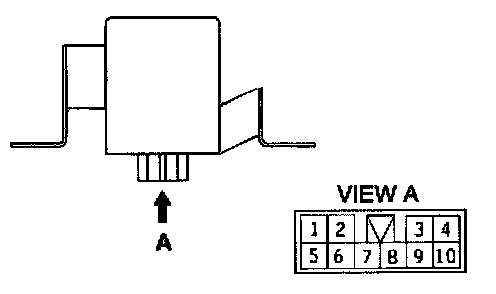

4WD INDICATOR-ECU

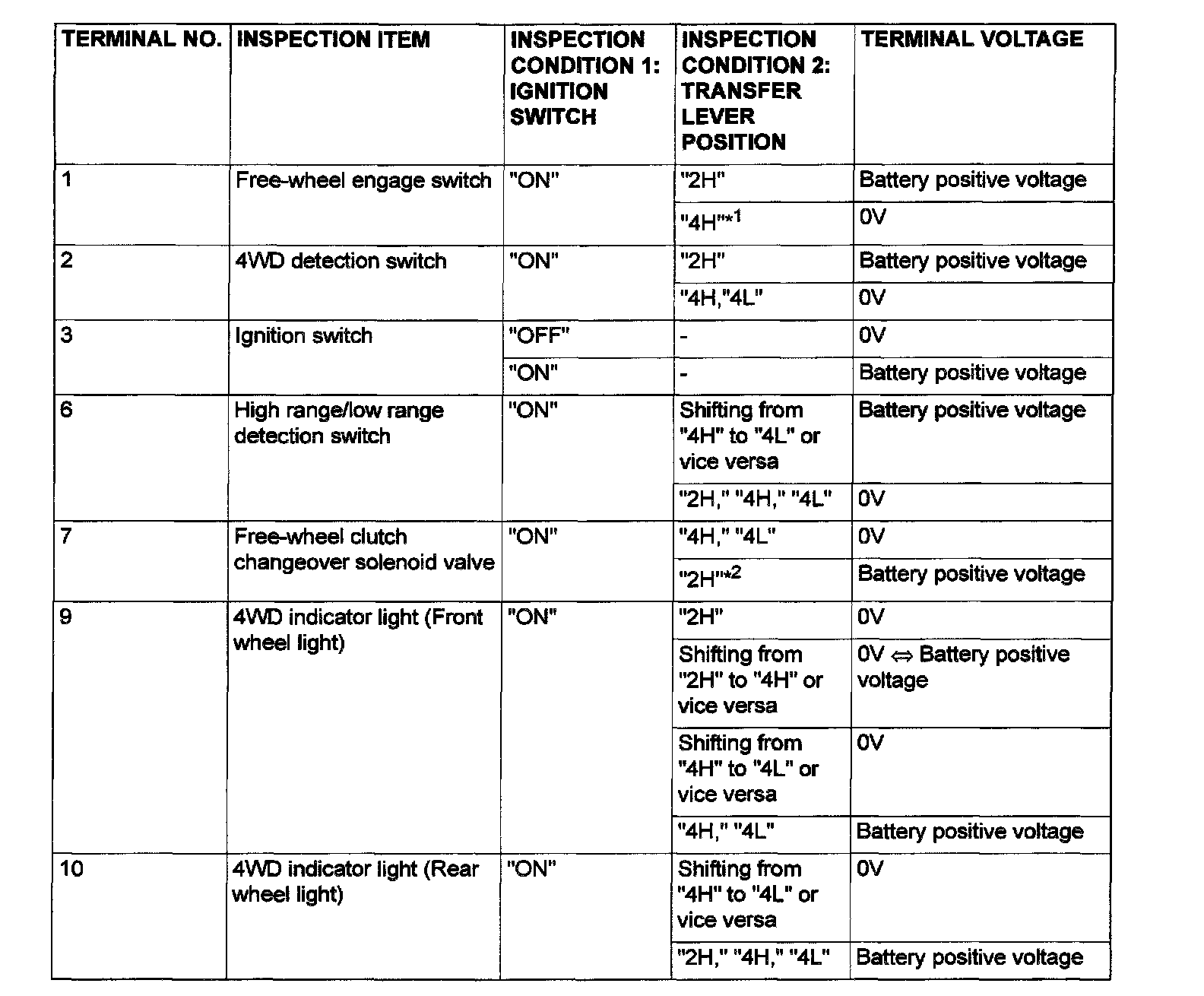

1. Measure the voltage with the control unit and harness still connected.








2. Ground terminal (8) and then measure the terminal voltage.
