Automatic Transmission/Transaxle
>>
Planetary Carrier Assembly
Planetary Carrier Assembly

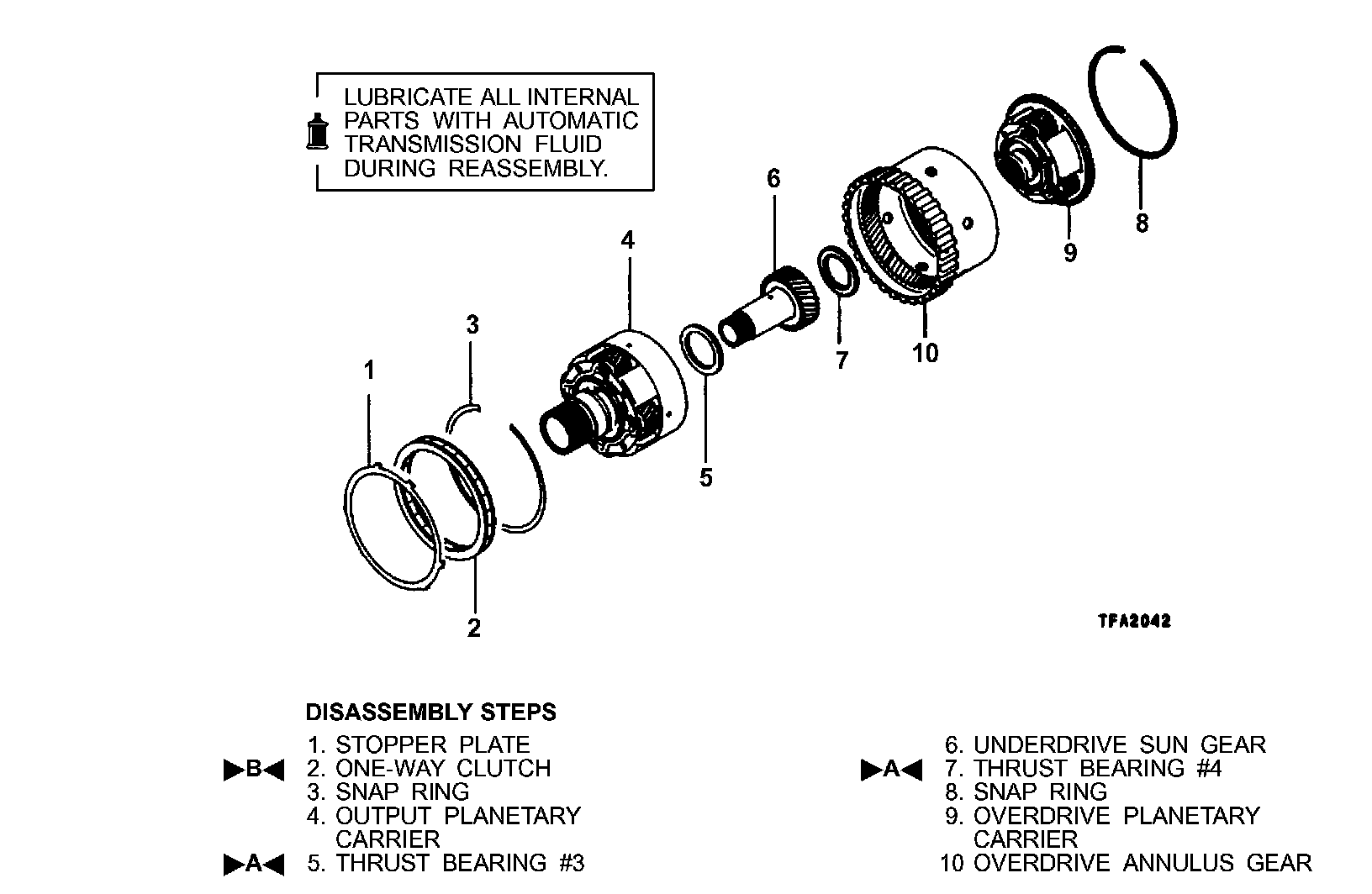

PLANETARY CARRIER ASSEMBLY OVERHAUL W/ RELATED COMPONENTS
