Firewall

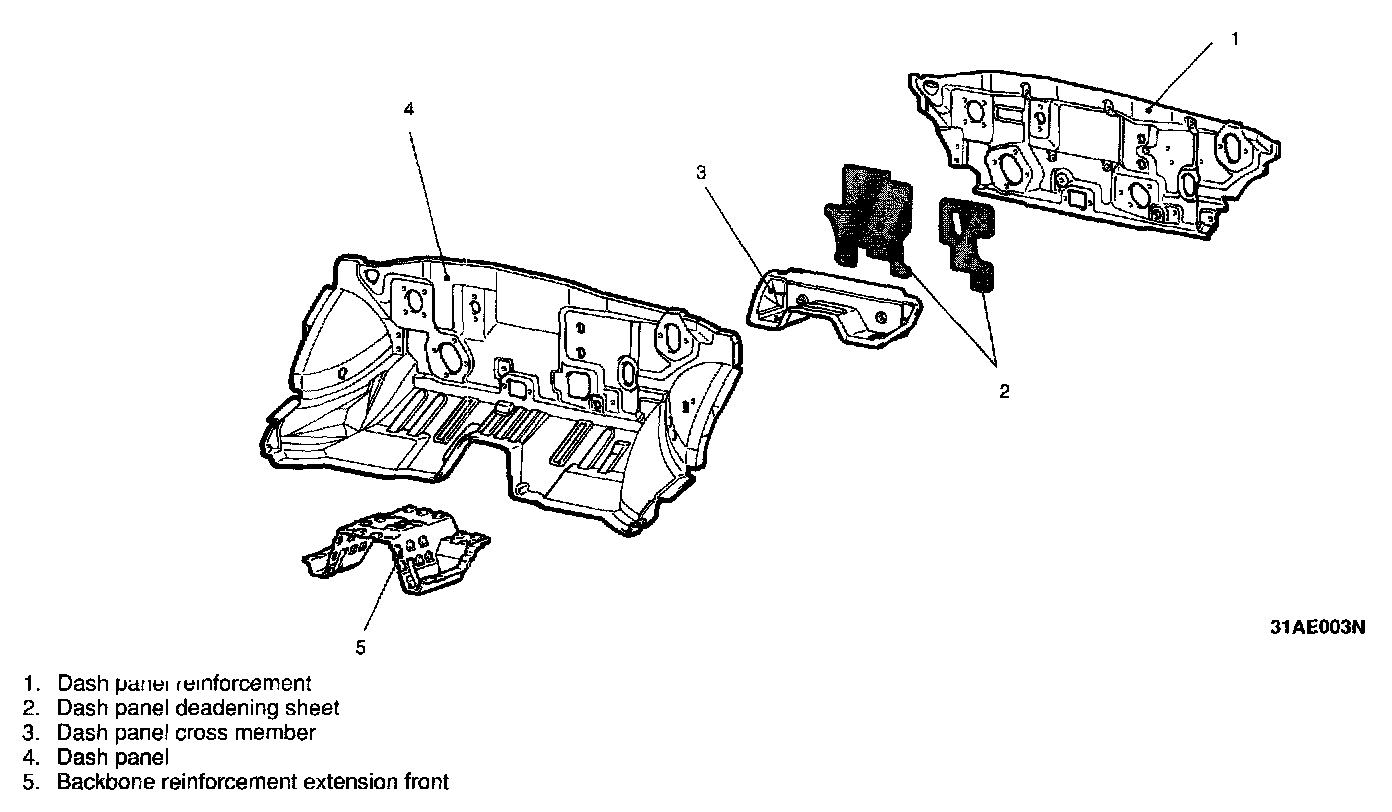

DASH PANEL

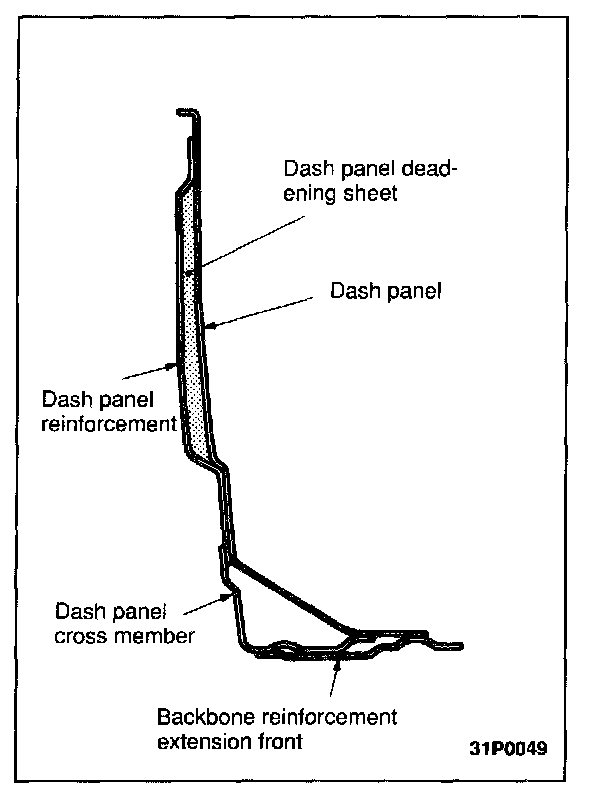

A deadening sheet (cellular rubber sheet) is provided between the dash panel and the dash panel reinforcement. This double wall construction improves the soundproofing effects.
