Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2003
>>
Galant L4-2.4L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Brake Master Cylinder
>>
Basic Brake System
Basic Brake System
MASTER CYLINDER OVERHAUL W/ RELATED COMPONENTS

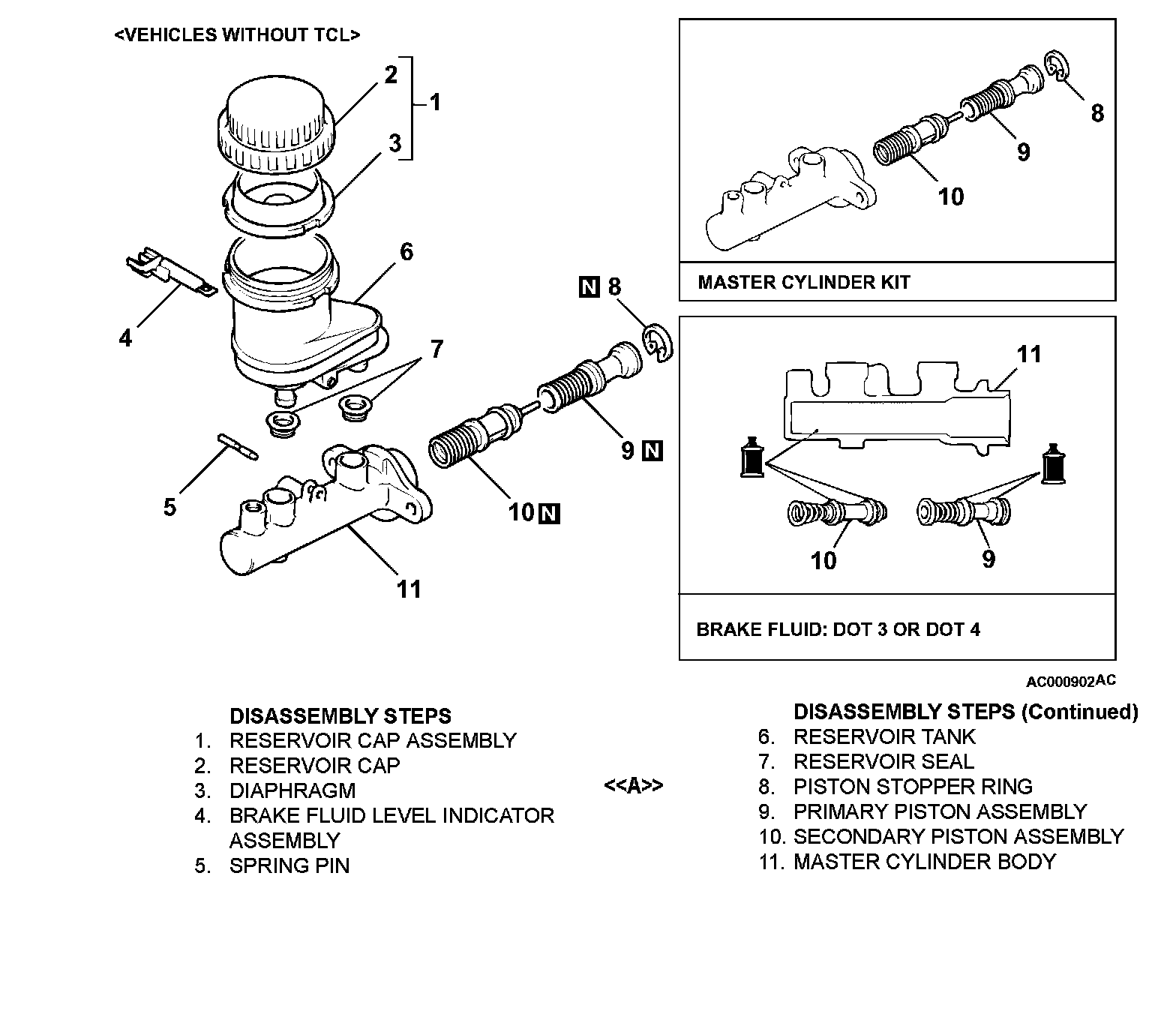

VEHICLES WITHOUT TCL

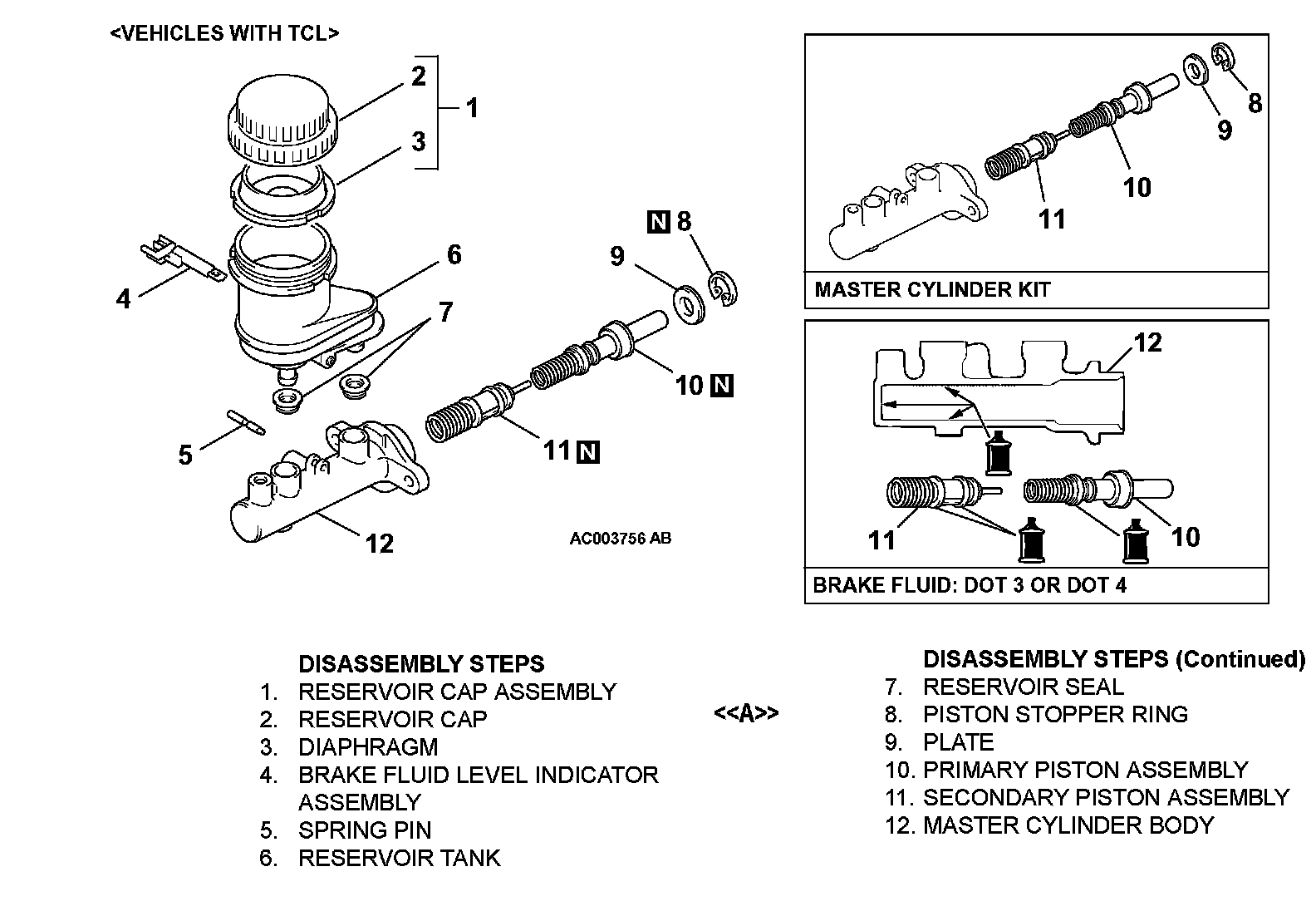

VEHICLES WITH TCL
