Piston and Connecting Rod

Part 1 Of 2:




Part 2 Of 2:

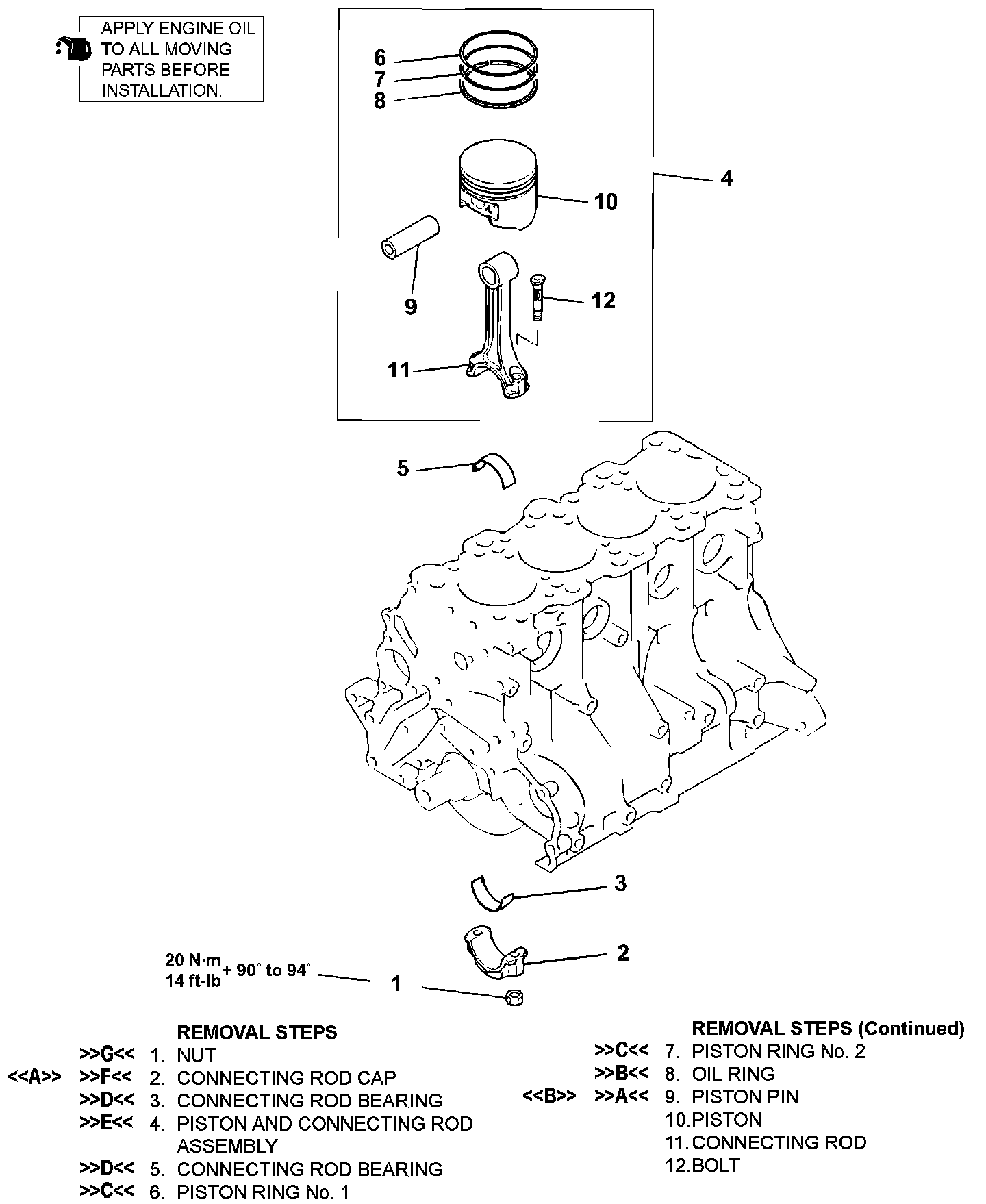

PISTON AND CONNECTING ROD REPLACEMENT W/ RELATED COMPONENTS
