Oscilloscope Patterns and Waveforms

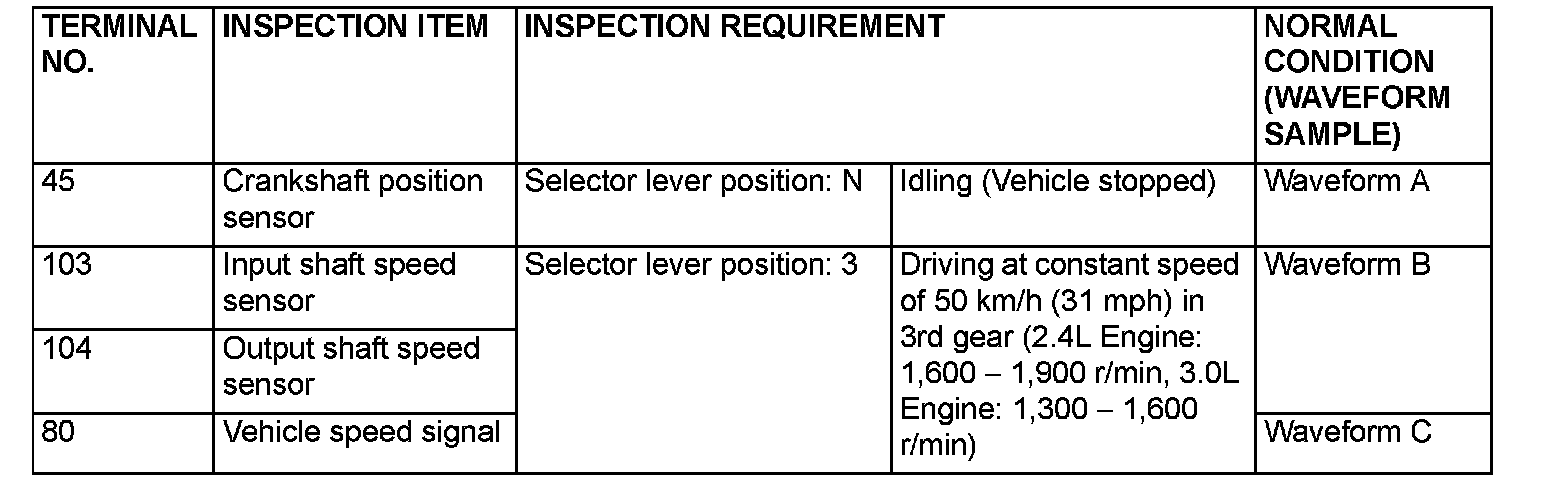

Part 1 Of 2:




Part 2 Of 2:

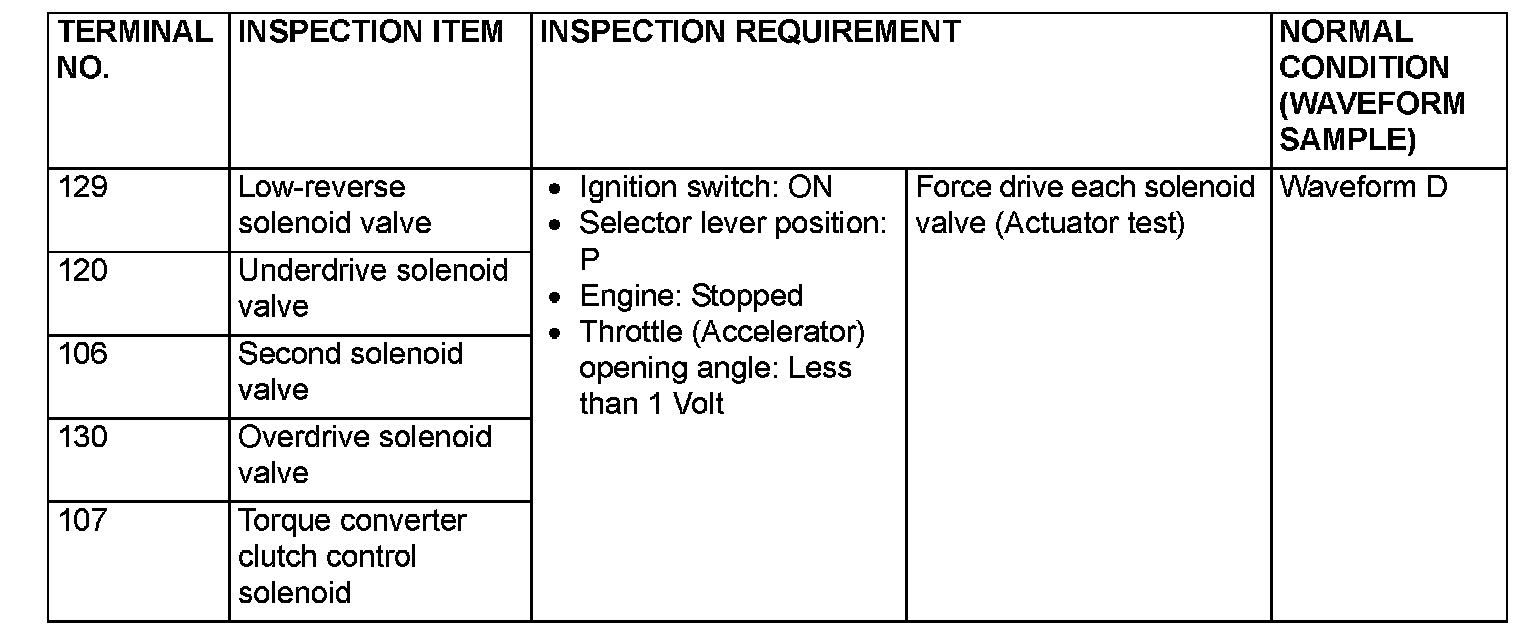

INSPECTION PROCEDURE USING AN OSCILLOSCOPE

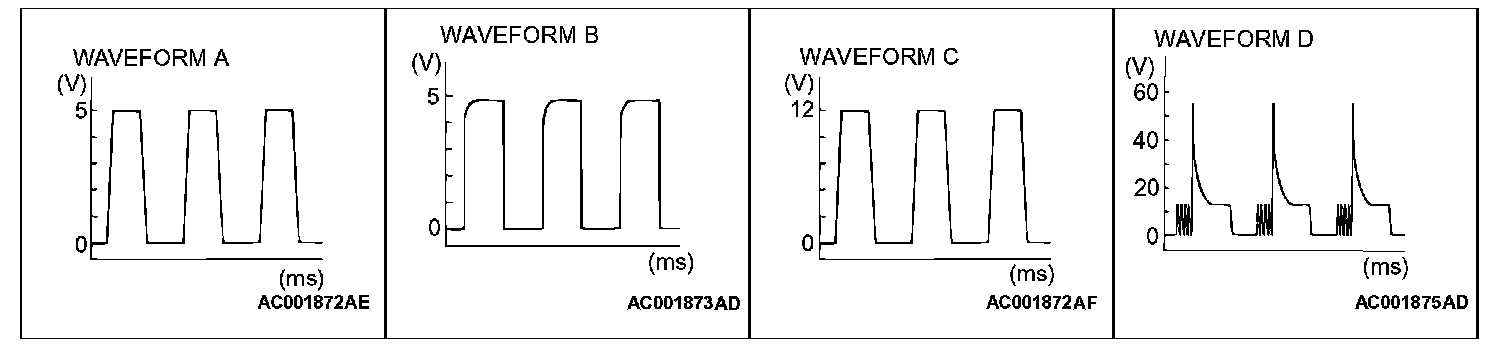

Waveform sample
