Back Window Glass: Service and Repair

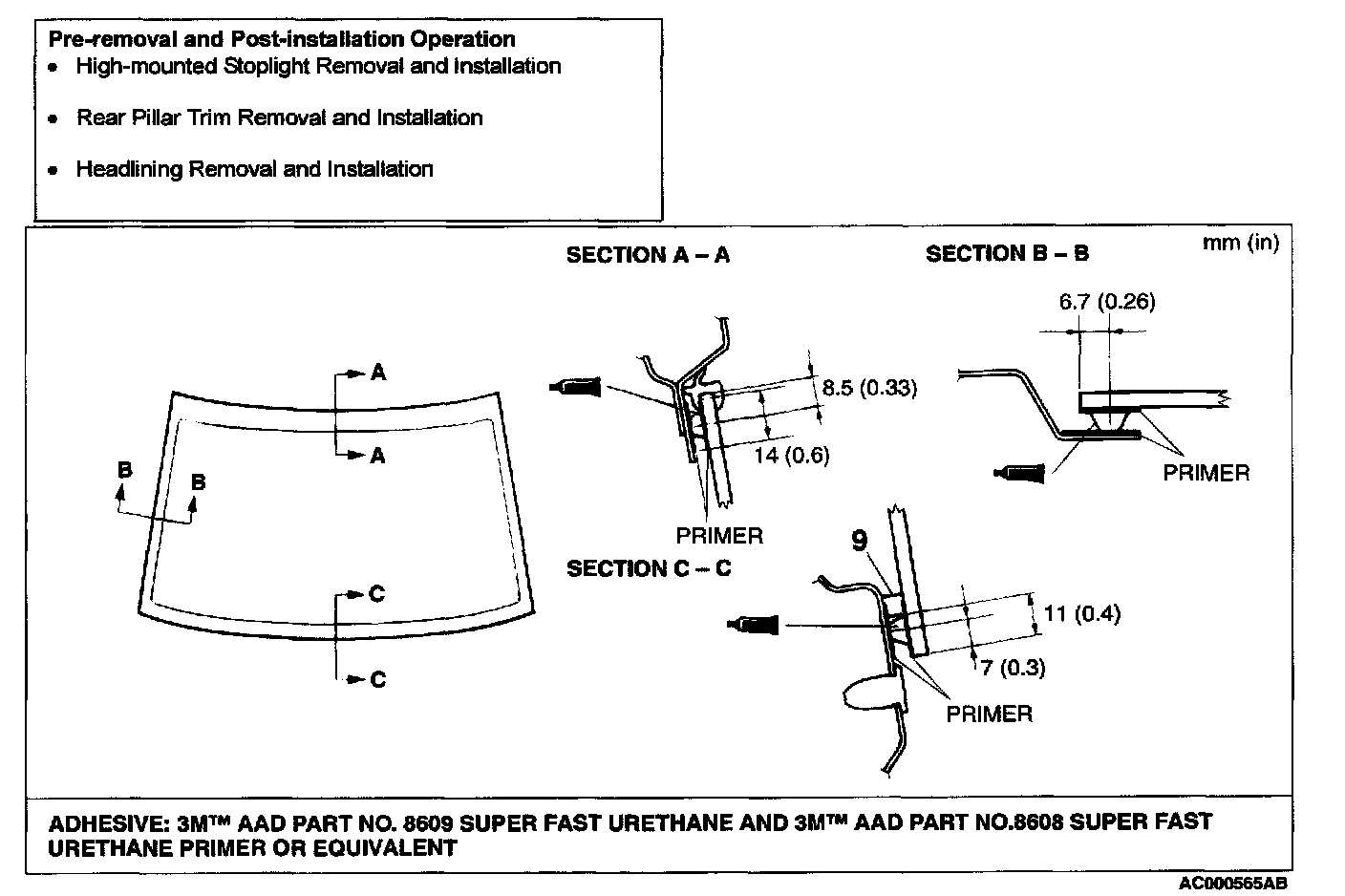

Rear Window Glass / Part 1:

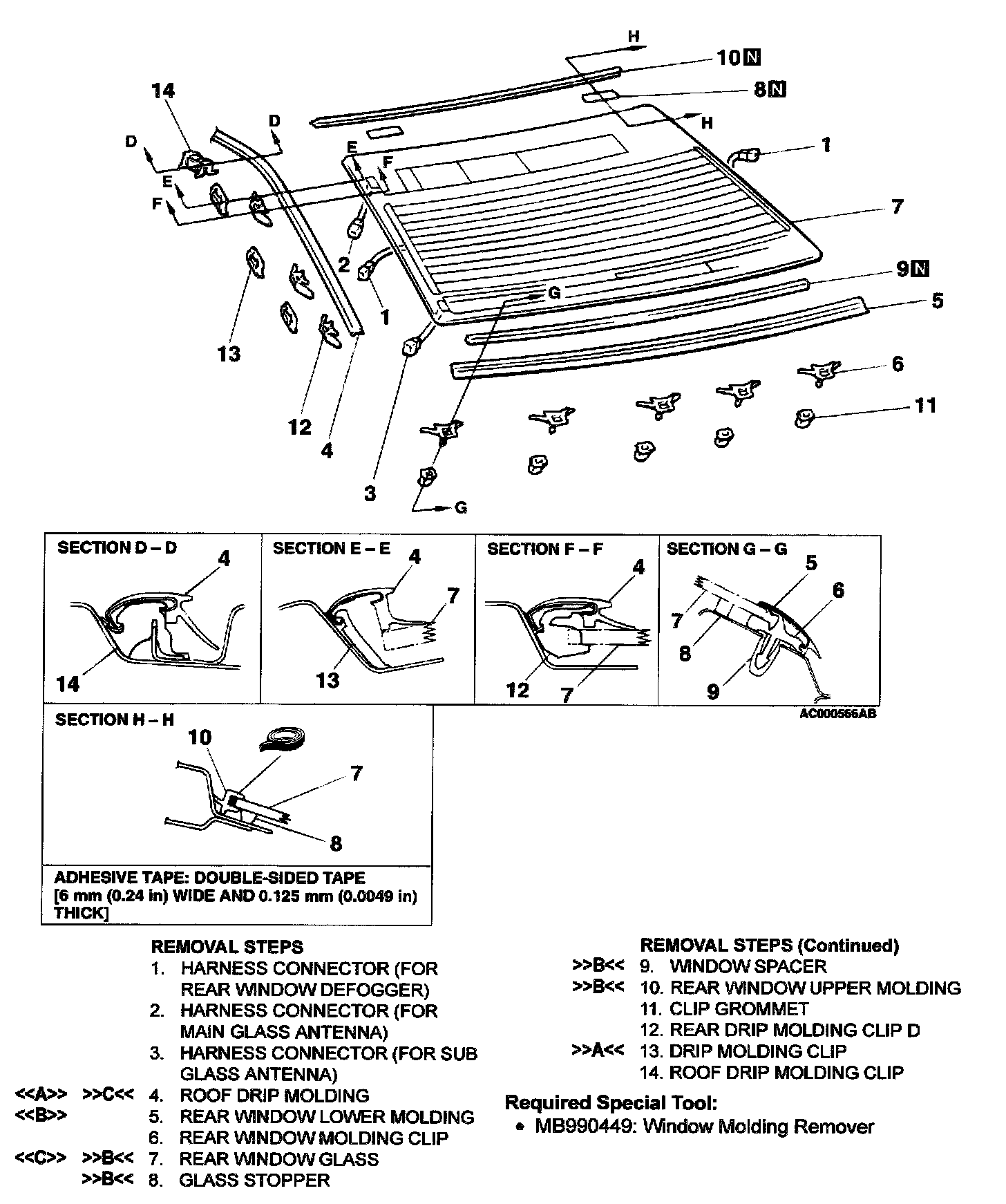

Rear Window Glass / Part 2:

REMOVAL SERVICE POINTS




[[A]] ROOF DRIP MOLDING REMOVAL

CAUTION: If the drip molding has become warped, it should not be reused.
Use special tool MB990449 to lever out the molding.




[[B]] REAR WINDOW LOWER MOLDING REMOVAL

CAUTION: If the drip molding has become warped, it should not be reused.
Use special tool MB990449 to lever out the molding.

[[C]] REAR WINDOW GLASS REMOVAL
Remove the rear window glass using the same procedure as for the windshield.

INSTALLATION SERVICE POINTS




]]A[[ DRIP MOLDING CLIP INSTALLATION
After installing the clip to the rear pillar outer in alignment with its section A, cut from section B.

]]B[[ REAR WINDOW UPPER MOLDING/WINDOW SPACER/GLASS STOPPER/REAR WINDOW GLASS INSTALLATION
Install the rear window glass in the same manner as for the windshield.

]]C[[ ROOF DRIP MOLDING INSTALLATION
Install the clip to the roof drip molding before installing the molding to the vehicle body.
