Window Seal: Service and Repair

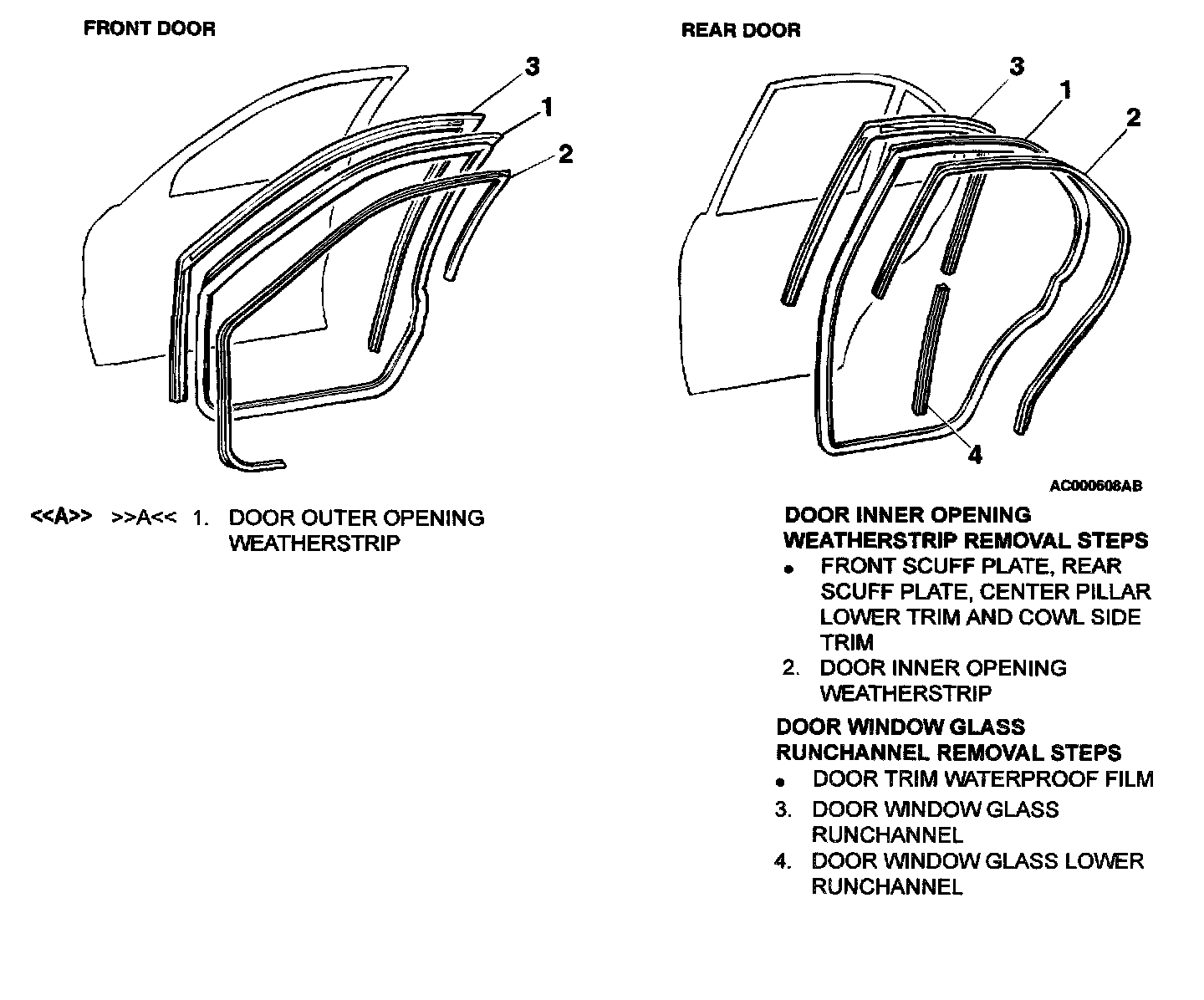

WINDOW GLASS RUN CHANNEL AND DOOR OPENING WEATHER-STRIP

REMOVAL SERVICE POINT




[[A]] DOOR OUTER OPENING WEATHERSTRIP REMOVAL
Make a fabricated tool as shown in the illustration to remove the door weatherstrip.

INSTALLATION SERVICE POINT




]]A[[ DOOR OUTER OPENING WEATHERSTRIP INSTALLATION

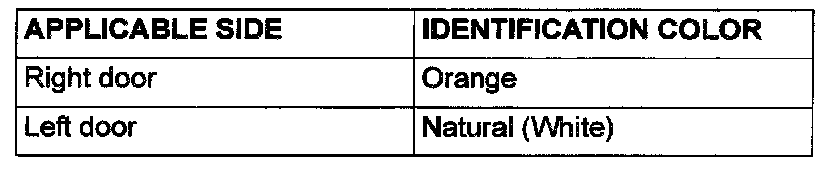

The clip color identifies the left and right weatherstrips so be sure to use the colors so as to install correctly.
