DTC 65

Passenger's (Front) Air Bag Module (Squib) System Fault for Ground Circuit (Short-Circuited to Ground)

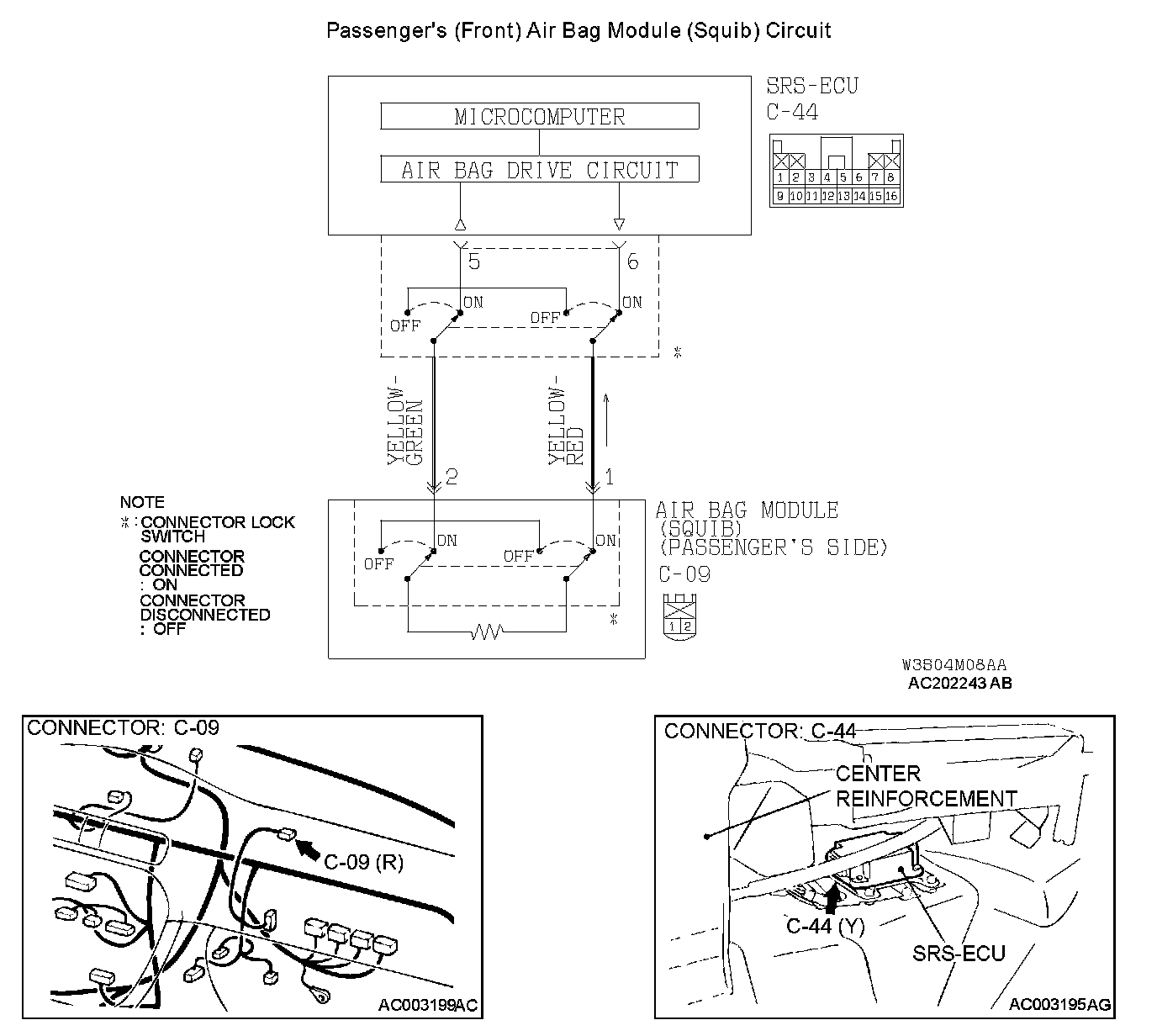

Passenger's (Front)Air Bag Module (Squib) Circuit:

CIRCUIT OPERATION
- The SRS-ECU judges how severe a collision is by detecting signals from the front air bag analog G-sensor. If the impact is over a predetermined level, the SRS-ECU outputs an ignition signal. At this time, if the front air bag safing G-sensor is on, the SRS air bag will inflate.
- The ignition signal is sent to the air bag module via the clock spring to inflate the air bag.

DTC SET CONDITIONS
This DTC is set if there is abnormal resistance between the input terminals of the passenger's air bag module (squib). However, if no DTC is reset, the SRS warning light will be switched off (DTC will be retained).

TROUBLESHOOTING HINTS
- Damaged harness wires and connectors
- Short to the ground in the passenger's air bag module (squib) harness
- Malfunction of the SRS-ECU

DIAGNOSIS

Required Special Tools:
- MB991502: Scan Tool (MUT-II)
- MB991865: Dummy resister
- MB991866: Resister harness

STEP 1. Check the passenger's air bag module.




1. Disconnect passenger's air bag module connector C-09.




2. Connect special tool MB991865 to special tool MB991866.

CAUTION: Do not insert a test probe into the terminal from its front side directly as the connector contact pressure may be weakened.

3. Disconnect passenger's air bag module connector C-09, and insert special tool MB991866 into the harness connector by backprobing.
4. Connect the negative battery terminal.
5. Erase the DTC memory, and then check for the diagnostic trouble code.

Q: Is DTC 65 set?

YES: Go to Step 2.

NO: Replace the passenger's air bag module. Then go to Step 4.

STEP 2. Check the passenger's air bag module circuit at the SRS-ECU connector C-44.




1. Disconnect SRS-ECU connector C-44.






DANGER: To prevent the air bag from deploying unintentionally, disconnect the passenger's air bag module connector C-09 to short the squib circuit.

2. Disconnect passenger's air bag module connector C-09.
3. Disconnect passenger's air bag module connector C-09.






CAUTION: Do not insert a test probe into the terminal from its front side directly as the connector contact pressure may be weakened.

4. Check for continuity between C-44 harness connector terminals 5, 6 and body ground. It should be open circuit.

Q: Does continuity exist?

NO: Erase the DTC memory, and check for the diagnostic trouble code. If DTC 65 is set, replace the SRS-ECU. Then go to Step 4.

YES: Go to Step 3.







STEP 3. Check the harness wires for short circuit to ground between SRS-ECU connector C-44 (terminals 5 and 6) and passenger's air bag module connector C-09 (terminals 1 and 2).

Q: Are the harness wires between SRS-ECU connector C-44 (terminals 5 and 6) and passenger's air bag module connector C-09 (terminals 1 and 2) in good condition?

YES: Go to Step 4.

NO: Repair the harness wires between SRS-ECU connector C-44 and passenger's air bag module connector C-09. Then go to Step 4.

STEP 4. Check for the diagnostic trouble code.

Q: Is DTC 65 set?

YES: Return to Step 1.

NO: The procedure is complete (If no malfunctions are not found in all steps, an intermittent malfunction is suspected. Refer to How to Use Troubleshooting/Inspection Service Points - How to Cope with Intermittent Malfunction).
