Camshaft, Engine

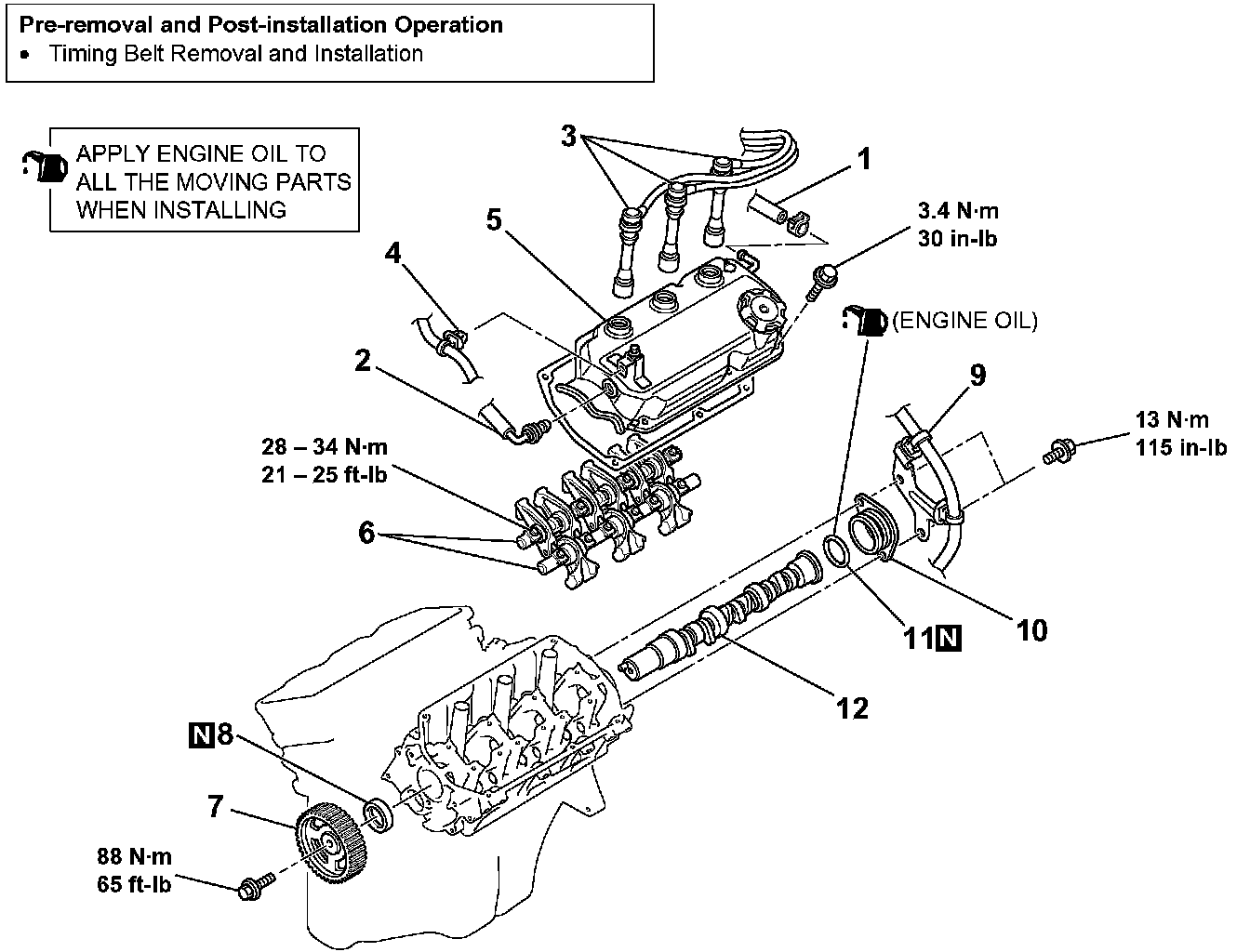

CAMSHAFT AND CAMSHAFT OIL SEAL REPLACEMENT W/ RELATED COMPONENTS

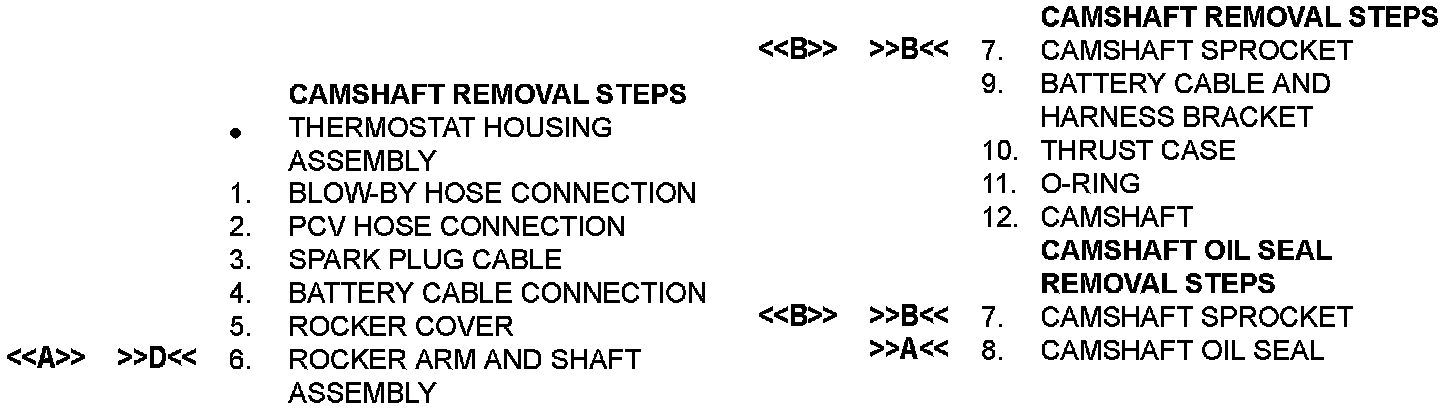

Part 1 Of 2:




Part 2 Of 2:







Required Special Tools:
^ MB990767: End Yoke Holder
^ MB991559: Camshaft Oil Seal Adapter
^ MD998443: Auto-lash Adjuster Holder
^ MD998713: Camshaft Oil Seal Installer
^ MD998715: Crankshaft Pulley Holder Pin

Part 1 Of 2:

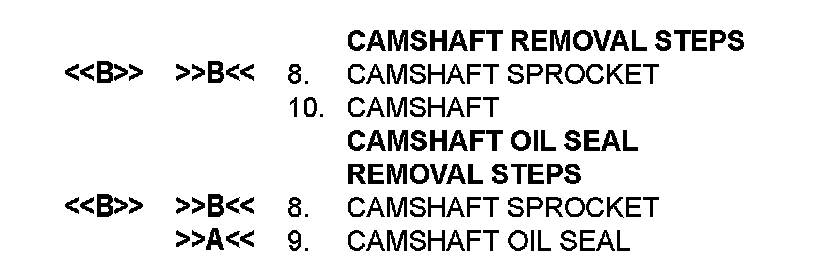

Part 2 Of 2:







Required Special Tools:
^ MB990767: End Yoke Holder
^ MD998443: Auto-lash Adjuster Holder
^ MD998713: Camshaft Oil Seal Installer
^ MD998715: Crankshaft Pulley Holder Pin
