Fail-Safe Function Reference Table

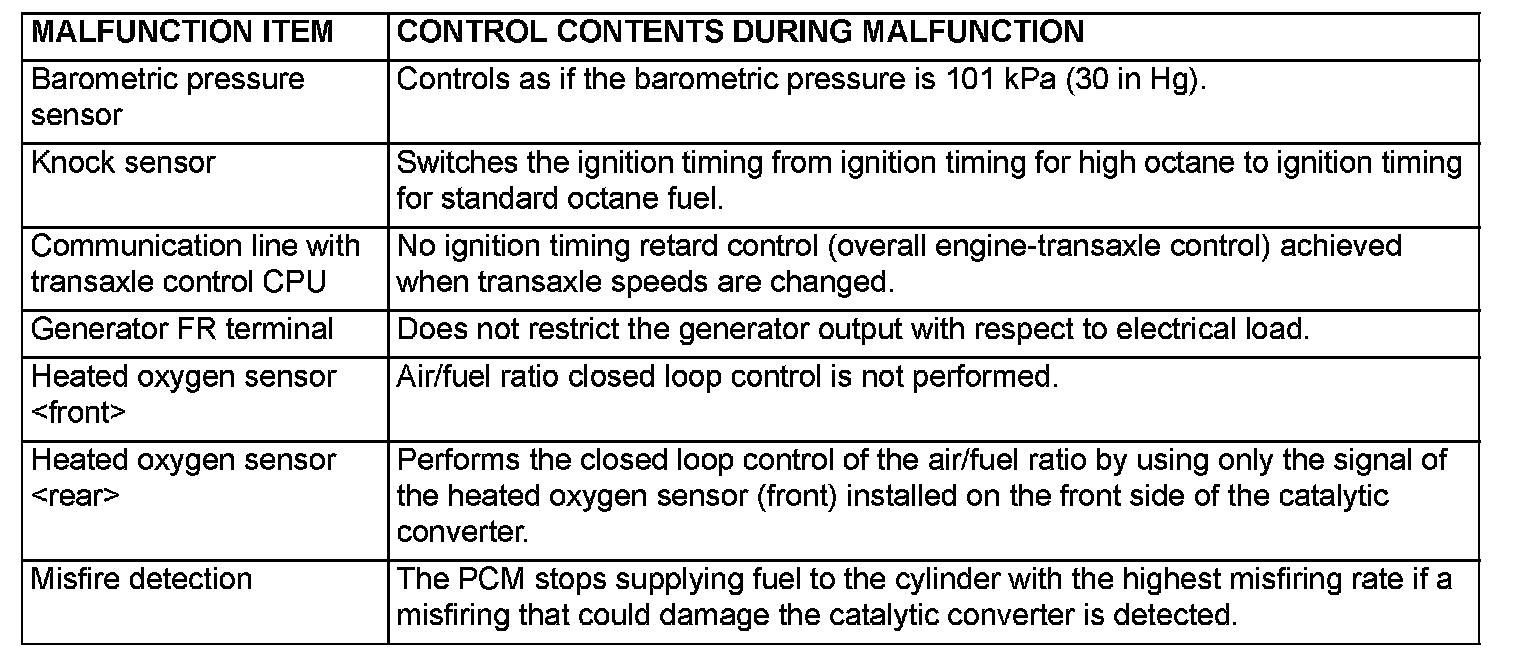

Fail-Safe/Backup Function Table Part 1:

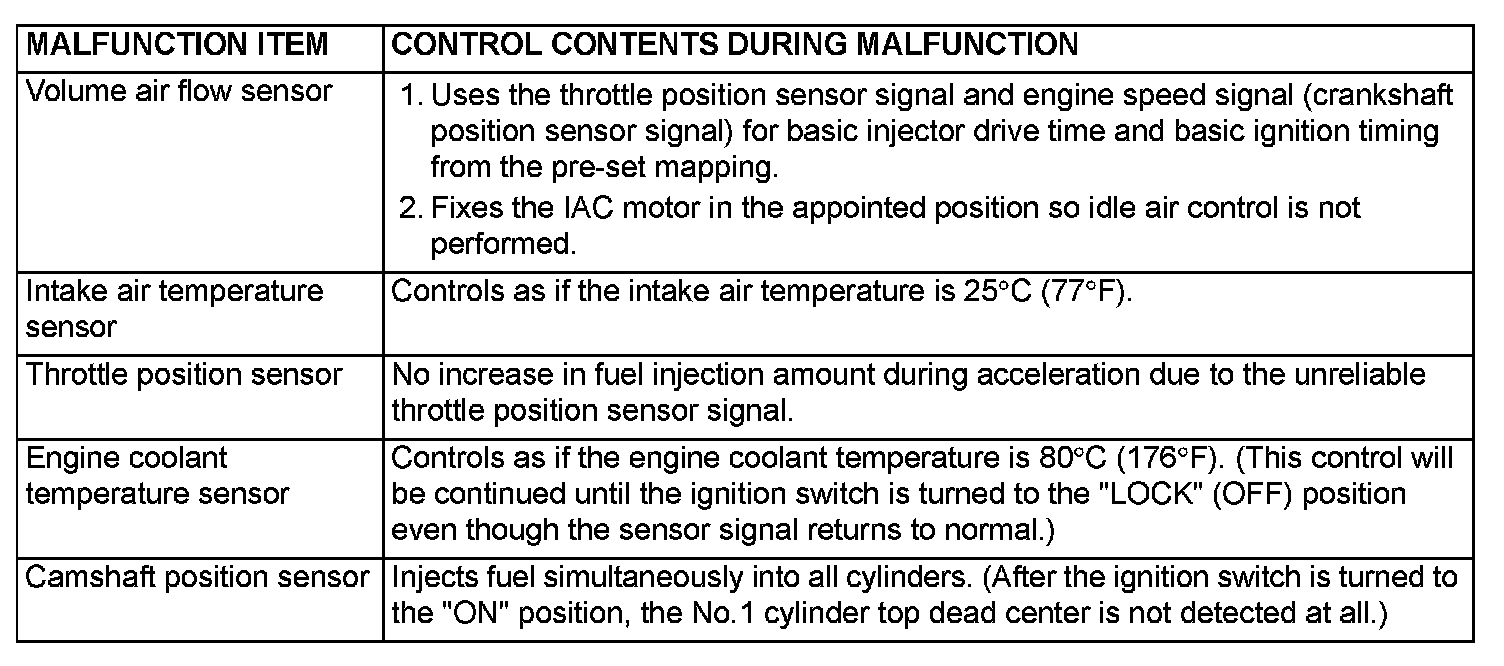

Fail-Safe/Backup Function Table Part 2:

When the main sensor malfunctions are detected by the diagnostic test mode, the vehicle is controlled by means of the given defaults.
