Body and Frame: Description and Operation

MAINTENANCE, SERVICEABILITY

FENDER SHIELD

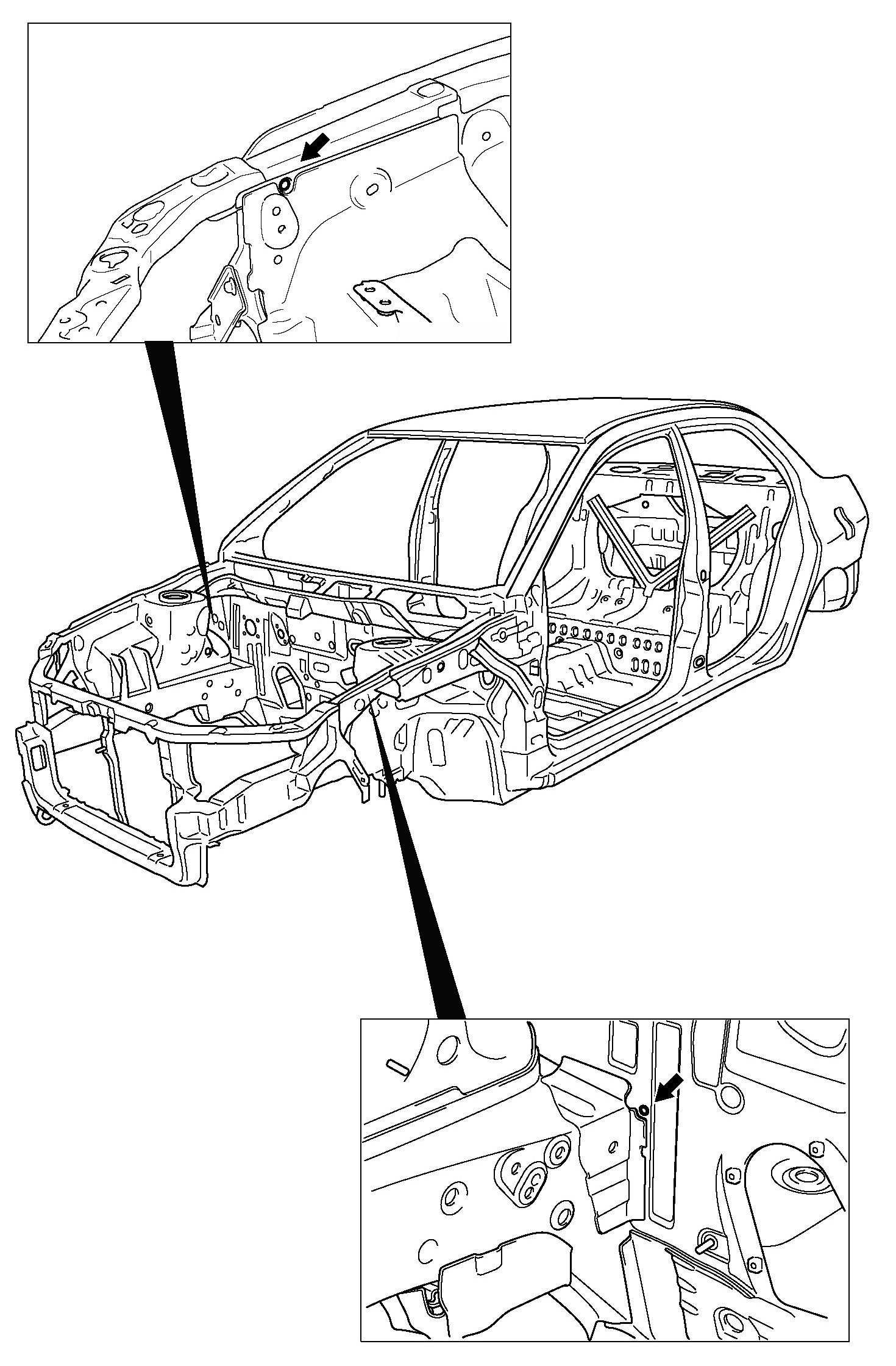

A positioning hole marking and cut-out has been added on the front fender shield front upper frame inner front side member gusset rear and dash panel to improve assembling workability when replacing the panel.

SIDE STRUCTURE

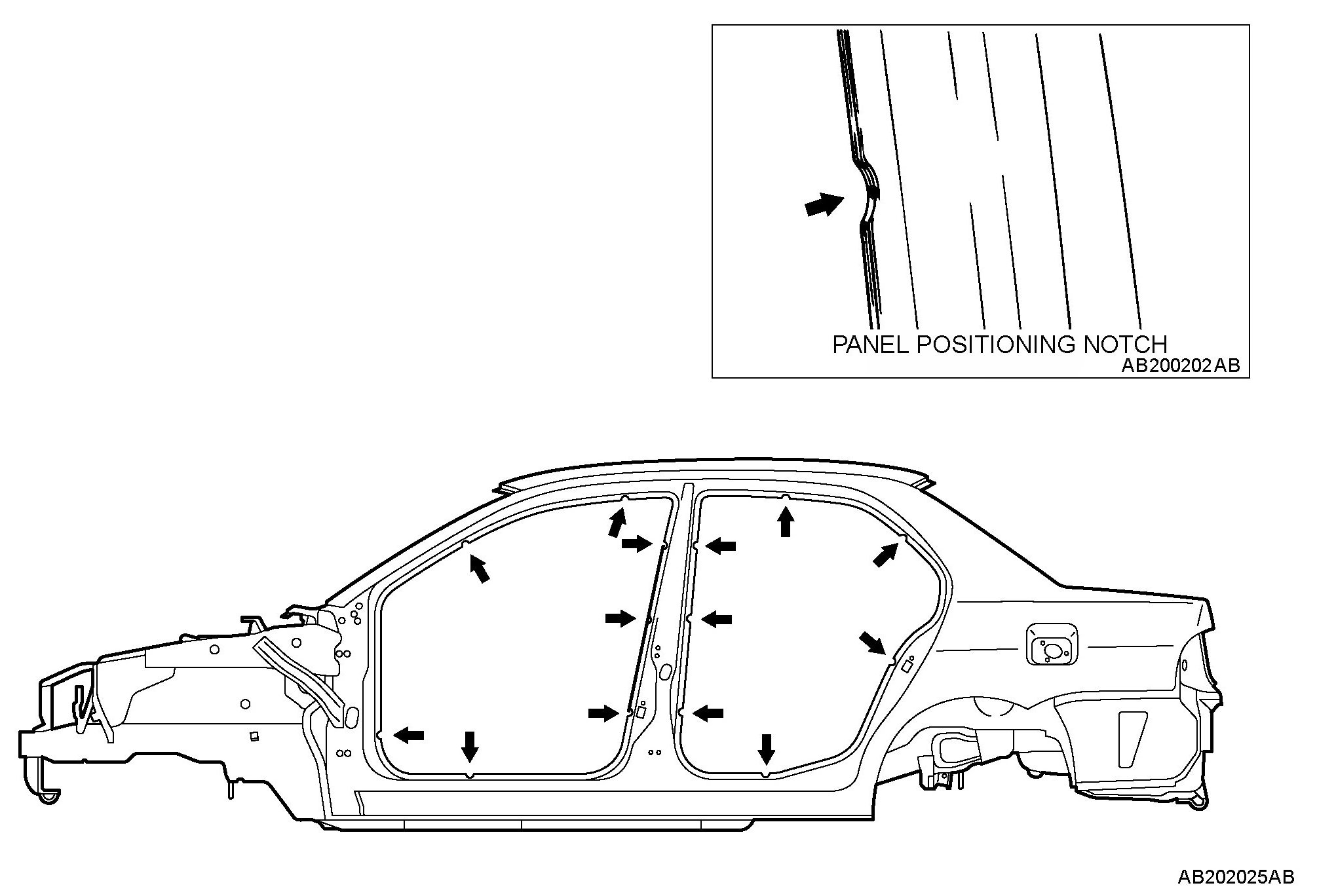

A panel positioning cut-out has been added on the door opening to improve assembling workability when replacing the panel.

SIDE OUTER PANEL

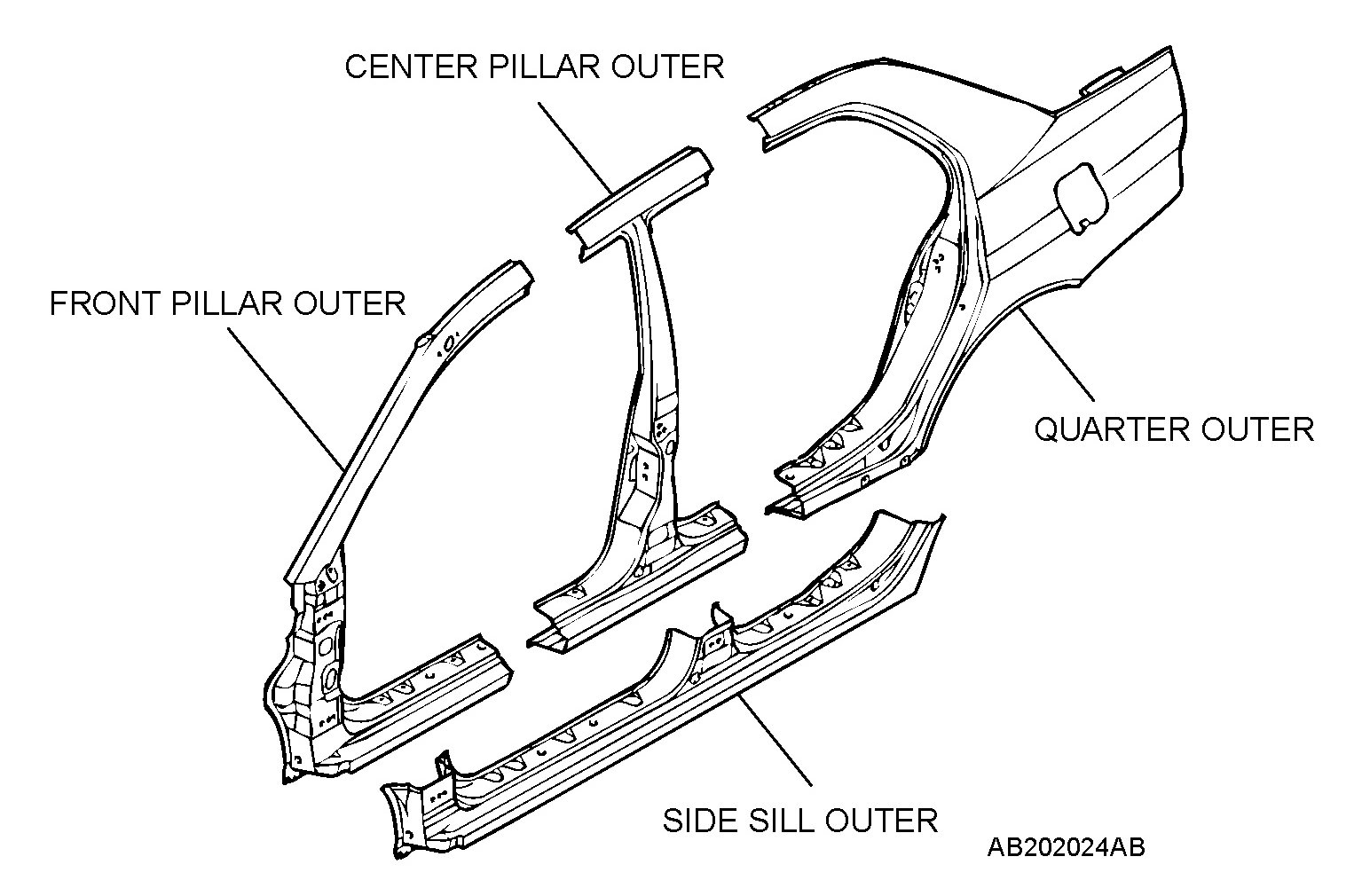

The extra parts are supplied in 4 different cut forms as a result of employing the integrated side-frame side outer panel.
