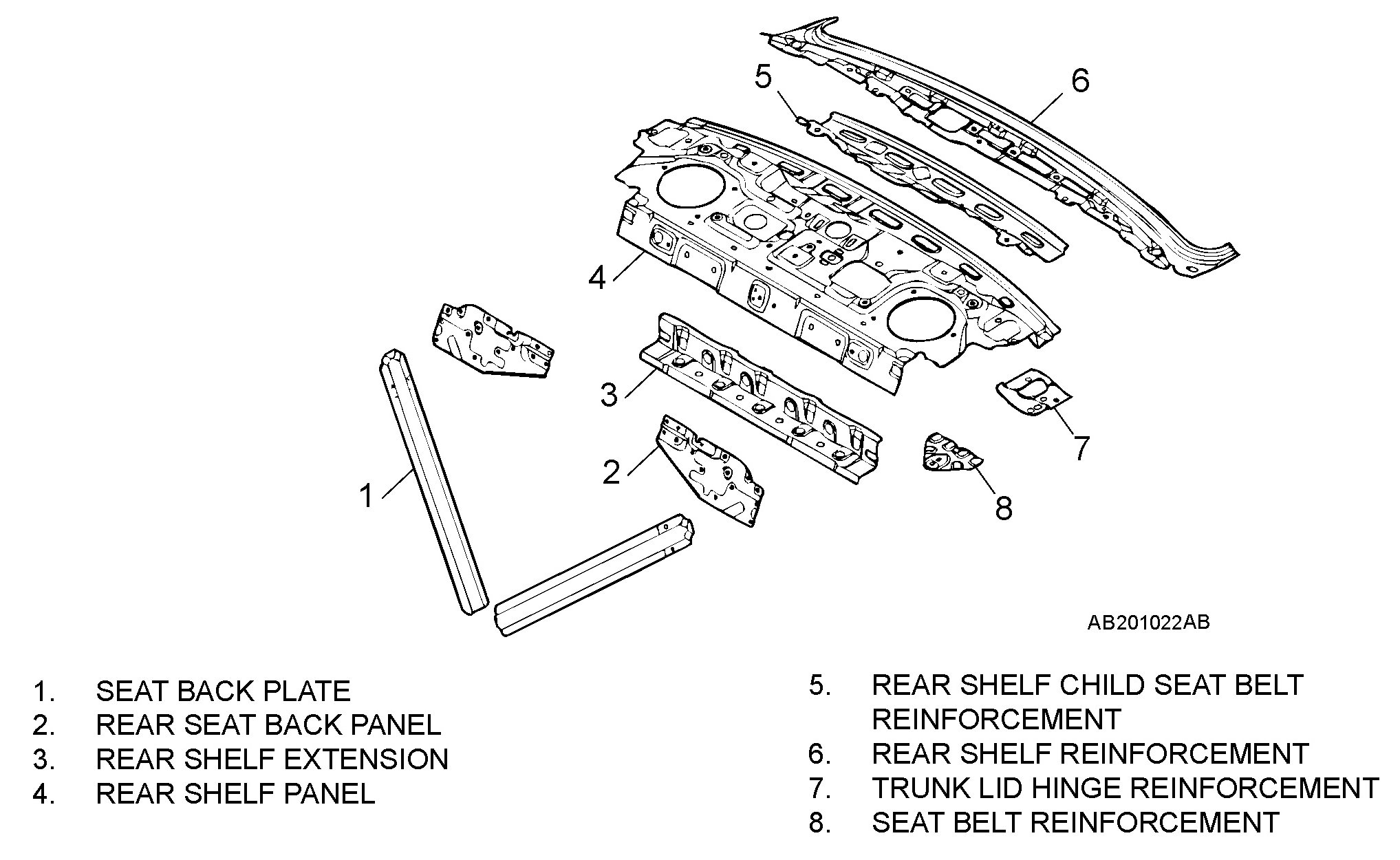

Rear Cross-Member: Diagrams

REAR BODY

REAR END CROSSMEMBER

A rear shelf extension has been added to form closed structure. Then the rear shelf and the rear floor have been joined to improve the torsion rigidity of the seat back plate.
