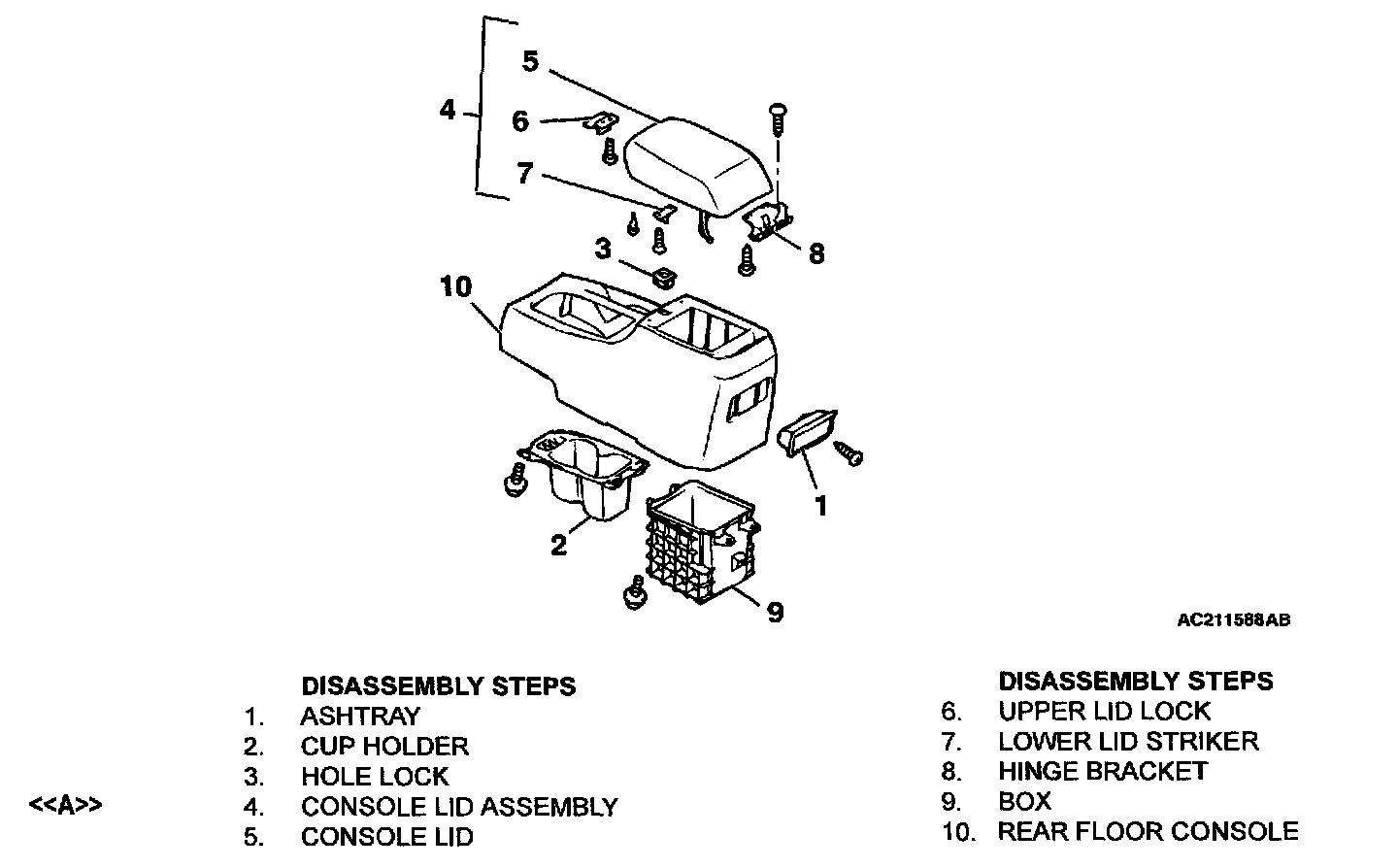

Disassembly and Assembly
CONSOLE:
Required Special Tool: -
MB990784: Ornament remover
DISASSEMBLY SERVICE POINT<> CONSOLE LID ASSEMBLY REMOVALInsert the special tool into the hinges of the console lid assembly and the rear floor console through the ashtray mounting hole to pry for removal.
