Inside Rear View Mirror

REAR VIEW MIRROR
REMOVAL SERVICE POINT

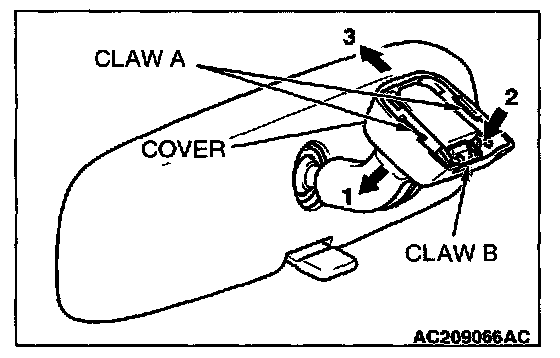

1. Disengage claw A and lower the cover in the arrow 1 direction.
2. Push claw B in the arrow 2 direction to unlock, and pull out the mirror in the arrow 3 direction.
