Outside Rear View Mirror

DOOR MIRROR

REMOVAL AND INSTALLATION

Removal Steps 1-8:






Required Special Tool:
- MB990784: Ornament Remover

REMOVAL SERVICE POINT

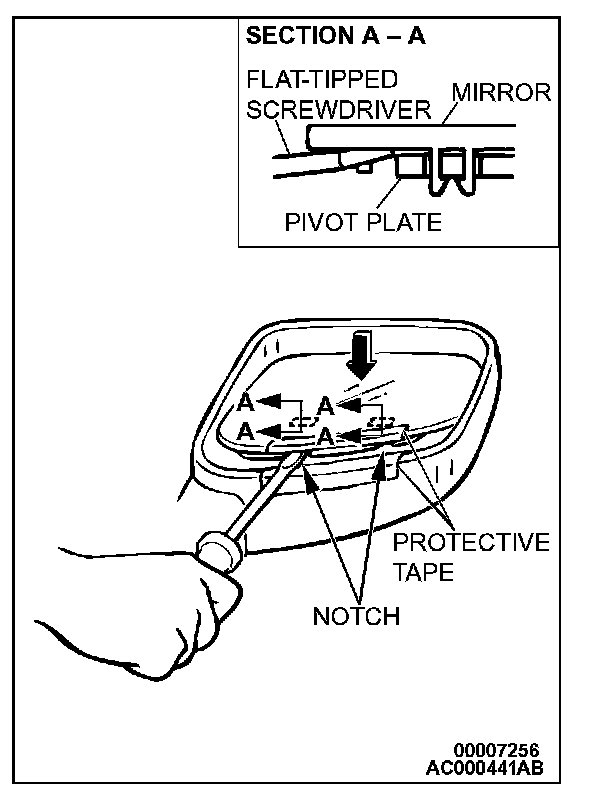

[[A]] MIRROR REMOVAL






Push the top of the mirror with your hand to tilt it and attach the protective tape as shown in the illustration. Then insert a flat-tipped screwdriver in between the notch at the rear of the mirror and the pivot plate and disengage the bottom of the mirror.

INSTALLATION SERVICE POINT

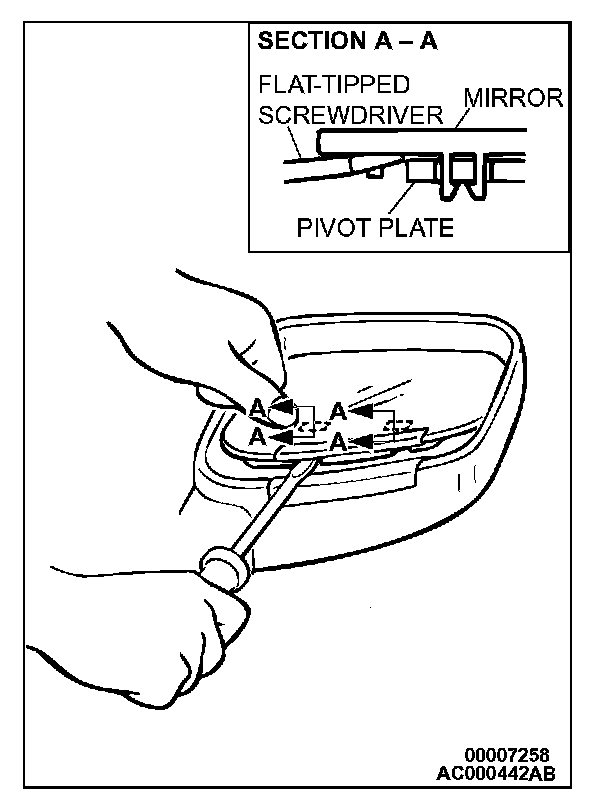

]]A[[ MIRROR INSTALLATION






While supporting the clip position on the underside of the pivot plate with a flat-tipped screwdriver press the clip at the front of the mirror to engage the bottom of the mirror.
