Silencer Application Locations

SILENCER APPLICATION LOCATIONS

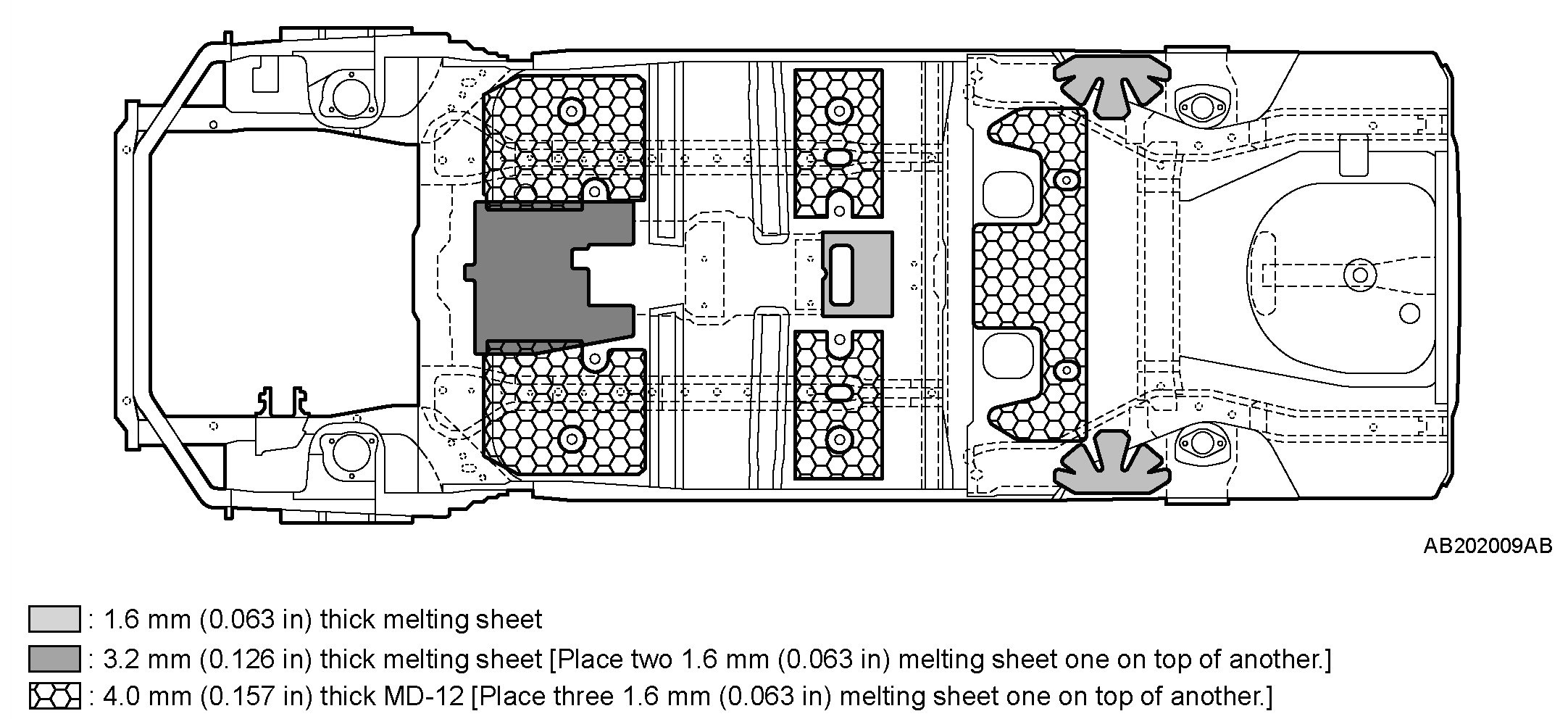

A silencer (MD-12 and melting sheet) has been adhered on the top part of the floor to improve anti- vibration performance and to shut-out exhaust gas heat.

NOTE: MD- 1215 a high performance sheet composed of asphalt applied with mica and thermosetting resin for improving anti-vibration performance.

NOTE: When you use melting sheet(s) in place of MD-12 during serving, follow the instructions enclosed by [].
