Intake Manifold






REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINTS

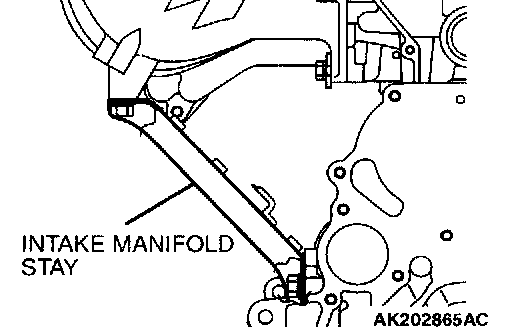

]]A[[ INTAKE MANIFOLD STAY INSTALLATION





Tighten the bolts to the specified torque on both ends after making sure that the stay is in close contact with the bosses on the intake manifold and cylinder block.
Tightening torque: 31 ± 3 Nm (23 ± 2 ft. lbs.)

]]B[[ MAP SENSOR INSTALLATION

CAUTION:
^ Install the MAP sensor carefully. Do not expose the sensor to any physical shock.
^ Do not use the sensor that has fallen to floor or any other surface.

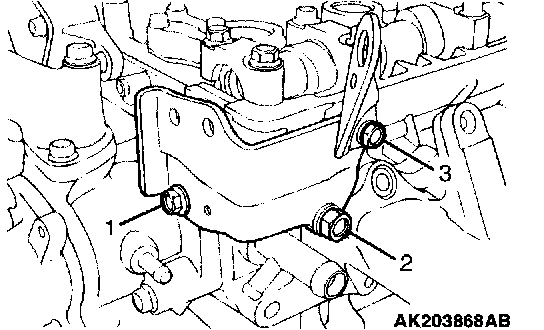

]]C[[ AIR CONTROL VALVE BRACKET INSTALLATION





1. Temporarily tighten the air control valve bracket and engine hanger together with the intake manifold using a jointly fastened bolt.
2. Tighten the bolt shown in Fig. 1 to the specified torque.
Tightening torque: 23 ± 4 Nm (17 ± 2 ft. lbs.)
3. Tighten the bolt shown in Fig.2 to the specified torque.
Tightening torque: 36 ± 6 Nm (26 ± 4 ft. lbs.)
4. Tighten the bolt shown in Fig.3 together with the engine hanger to the specified torque.
Tightening torque: 22 ± 4 Nm (17 ± 2 ft. lbs.)
